Touch Panel Oscilloscope INSTEK GDS-300

Code: GOODWILL INSTEK GDS-307 GDS-310 GDS-320 GDS-300



Datasheet PDF, 3.29 Mb


Description

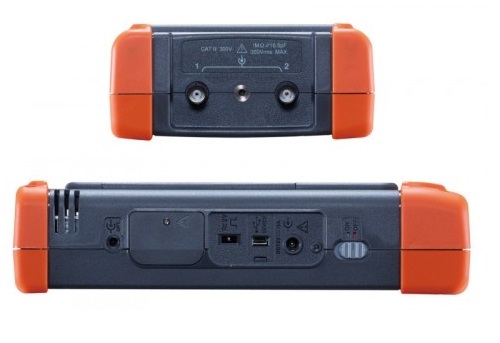

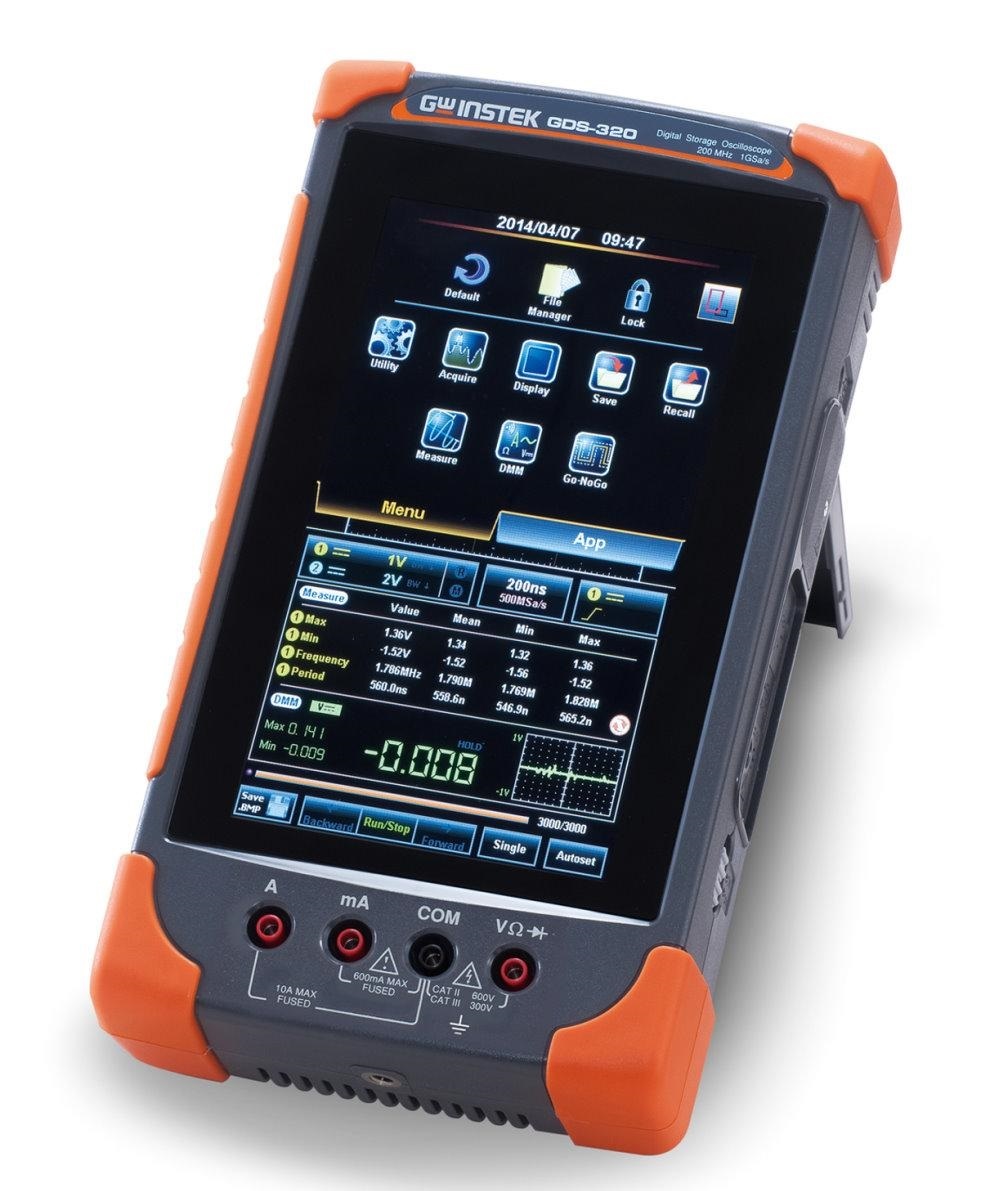

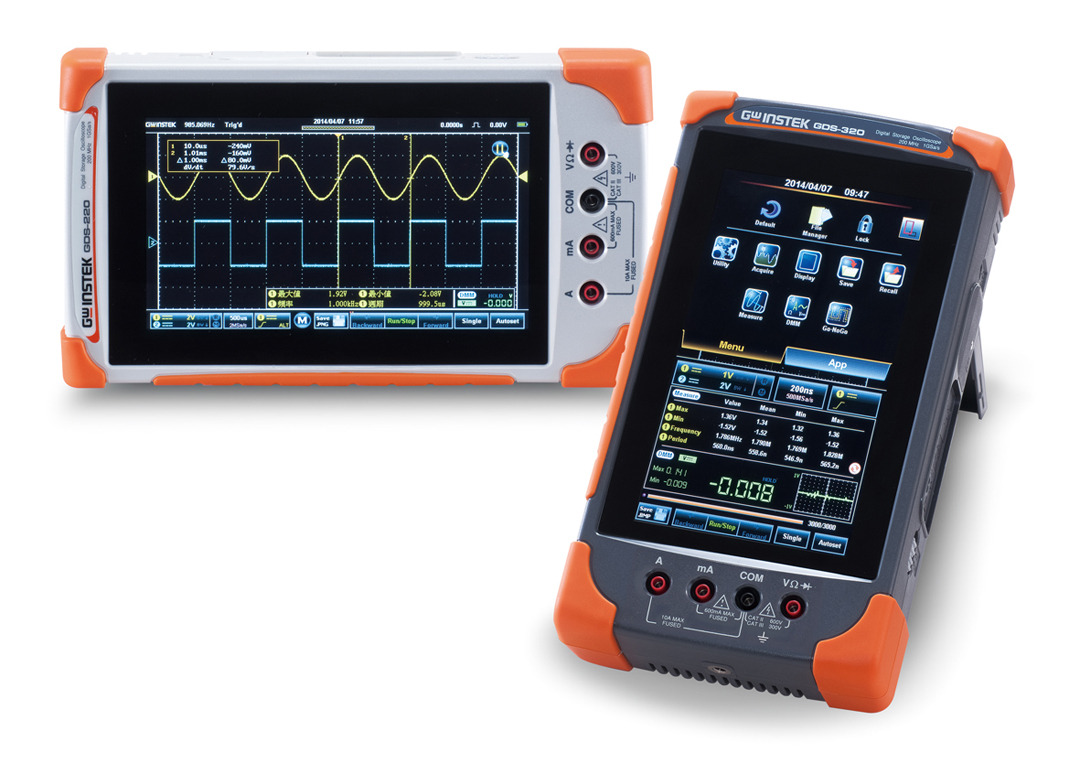

GDS-320  200MHz, 2-Channel, Full Touch Panel, Digital Oscilloscope

GDS-310  100MHz, 2-Channel, Full Touch Panel, Digital Oscilloscope

GDS-307  70MHz, 2-Channel, Full Touch Panel, Digital Oscilloscope





  • 200/100/70MHz Bandwidth Selections, Two Input Channels
  • 1GSa/s Maximum Sample Rate
  • Maximum 5M Memory Depth Per Channel

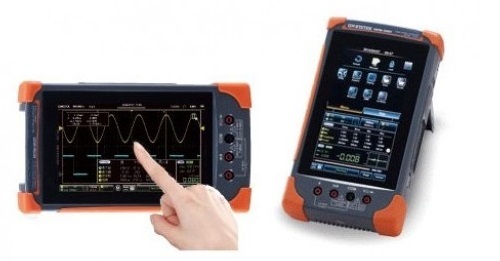

  • 7" 800 x 480 Full Touch Panel Capacitive LCD Multi-Point Control, Landscape and Portrait Display

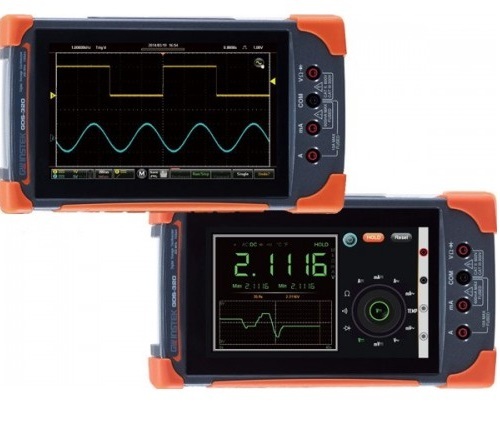

  • Built-In 50,000 Counts DMM
  • 30,000 Consecutive Waveform Records Logging Function, Replay Measurement Results Any Time
  • Temperature Measurement and Logging Function
  • Built-In Engineering Calculator, SMD Resistance Coding, Color Coding Info, and Attenuator Calculation Application Software
  • Optional Differential Probe to Achieve Isolation Effect


Model

 GDS-307

GDS-310

GDS-320

GDS-207

GDS-210

GDS-220

 VERTICAL

 Channels

2 (BNC-Shield)

 Input Impedance

1Ω±2%, 16.5pf approx.

Maximum Input

 CAT II 300VRMS

Input Coupling

 AC, DC, GND

 Bandwidth

 DC~70MHz (-3dB)

DC~100MHz (-3dB)

 DC~200MHz (-3dB)

DC~70MHz (-3dB)

DC~100MHz (-3dB)

 DC~200MHz (-3dB)

 Rise time

 <5ns

 <3.5ns

<1.75ns

<5ns

<3.5ns

<1.75ns

 Sensitivity

 2mV/div~10V/div (1-2-5 increments)

 Accuracy

 Â±(3% x Readout + 0.1 div + 1mV)

 Bandwidth Limit

 20MHz(-3dB)

 Polarity

 Normal, Invert

Offset Position Range

 2mV/div~50mV/div : ±0.4V
100mV/div~500mV/div : ±4V
1V/div~5V/div : ±40V
10V/div : ±300V

 SIGNAL ACQUISITION

 Realtime sample rate

1GSa/s

 Memory depth

5M points per ch

1M points per ch

 Acquisition mode

 Average: 2~256 waveforms
Peak detect: 10ns
sin(x)/x or ET

 Replay wfms.

30,000 wfms.

 TRIGGER

 Source

Ch1 or Ch2

 Trigger mode

Auto, Normal, Single, Force

Trigger type

Edge, Pulse Width, Video, Alternate

 Trigger Holdoff

10ns ~ 10s

Coupling

AC, DC, LFR, HFR, NR

 Sensitivity

DC~25MHz: approx. 0.5div or 5mV
25MHz~ 70/100/200MHz: approx. 1.5div or 15mV

 HORIZONTAL

 Range

 5ns~100s/Div (1-2-5 increments)

 Roll

100ms/div ~ 100s/div

Pre-trigger

 10 div max.

 Post_trigger

1,000 div max(depend on time base)

 Accuracy

±20ppm over any > 1ms time interval

XY MODE

Phase Shift

 Â±3° at 100KHz

CURSOR AND MEASUREMENT

 Cursors

 Voltage difference between cursors(â-³V), Time difference between cursors(â-³T), frequency measure(1/â-³T)

 Auto-measurement

36 sets.

 Auto-counter

6 digits. Range: 2Hz to rated bandwidth

Autoset

Available

 TEMPERATURE MEASUREMENT

Available

Non-Available

MISCELLANEOUS

Multi-Language Menu

Available

 On-line Help

Available

 Time and Clock

Available

 BATTERY

Battery power

Li-polymer 6100mA/hr, 7.4V (Built-in)

 Charge time

 2.0 hour (75%)

 Operation time

 4.1 hour, depending on operating condition.

 PROBE COMPENSATION



 2V, 1KHz, 50% Duty cycle

 INTERFACE

 USB

 USB Device (Isolation)

 Internal Flash Disk

 120MB

DISPLAY

 Type

 7 inch

 Display resolution

480 x 800 pixels



Standard accessories

Accessories

GTP-100A-4   100MHz Probe. Suitable for GDS-307/207, GDS-310/210

GTP-200A-4   200MHz Probe. Suitable for GDS-320/220

GTL-207      Multimeter Test Lead x 2

GSC-010       Soft Carrying Case

GSC-011       Soft Carrying Bag

GAP-001       AC-DC Adaptor

GWS-001      Wrist Strap

Optional Accessories

GDP-040D     40MHz Dual-Channel Differential Probe, Suitable for GDS-300/200

GTL-253      Type A "" Mini USB Cable

GCL-001      Vertical Calibration Cable

Free Download Software

OpenWave 200 Software



Recommended options
