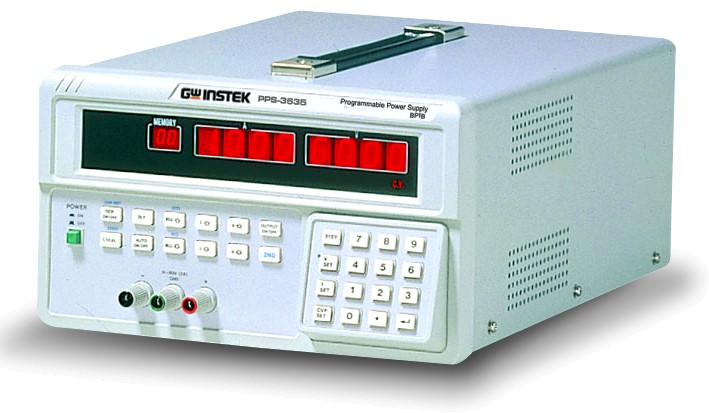

GOODWILL INSTEK PPS-3635

Code: GOODWILL INSTEK PPS-3635




Datasheet PDF, 0.1 Mb


Description

The PPS-3635 is a single output, 126W Output, programmable linear DC power supply. OVP and OCP hardware protection, compliance to major safety standards such as UL, CSA, and IEC,  ensures a high level of safety and reliability. The remote sense adds extra level of precision by compensating cable losses between loads. The SCPI command set and LabVIEW driver access through GPIB interface provide remote control and ATE software development. The flexible PPS-3635 is ideal for high-level applications requiring high precision and an extra level of safety.



Features:

  • Easy Operation with UP/DOWN Key
  • High Resolution: 10mV, 1mA
  • Over Voltage Protection, Over Current Protection by Hardware
  • 100 Sets of Memory
  • Self Test and Software Calibration
  • Meets UL CSA IEC Safety Regulation
  • Auto Step Running With Time Setting

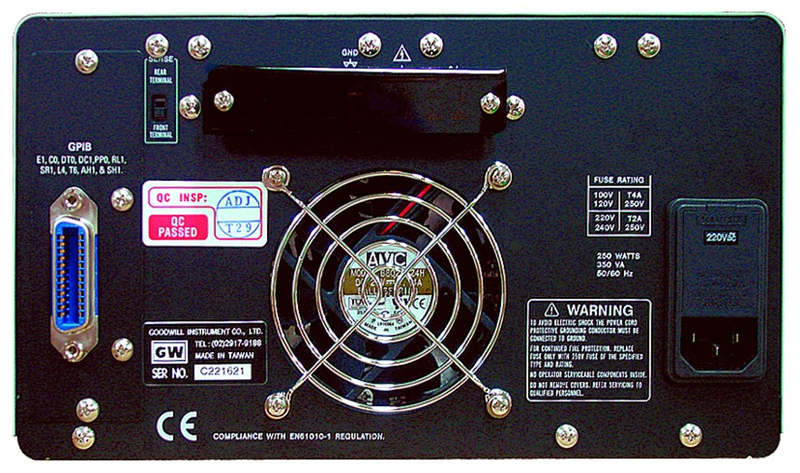

  • FRONT/REAR Output and Sense Switch Selectable
  • IEEE-488.2 and SCPI Compatible Command set
  • Labview Driver Software
  • High Stability, Low Drift
  • 4 Digit Display
