GOODWILL INSTEK PSH-Series

Code: GOODWILL INSTEK PSH-Series



Datasheet PDF, 2.73 Mb


Description

The PSH-Series are single output from 360 to 1080W, programmable switching DC power supplies. OVP, OCP, and OTP protect the power supply and loads from unexpected conditions. Remote sensing adds an extra level of precision by compensating cable losses between loads. The bright LCD with simultaneous parameter outputs allows effortless operation. Self-test and software calibration features also reduce maintenance efforts. SCPI commands and LabVIEW driver access through the RS-232C or the optional GPIB interface allow remote control and ATE software development. Modular architecture, dedicated rear-panel output, and the 19 inch 4U rack mounting option ensure that the PSH-Series is optimized for large systems.



Features:

  • Wide input voltage range and high power factor (P.F)
  • high efficiency and high power density
  • Constant voltage and constant current operation
  • Over voltage over current and over temperature protection
  • Low ripple and noise
  • Output on/off control
  • Self-test and software calibration
  • LabView driver
  • Standard interface : RS-232C
  • Optional interface : GPIB ( IEEE-488.2 )





Programmable Switching D.C. Power Supply



Output Watts (W)

Output Volts (V)

Output Amps (A)

Weight (kg)

PSH-2018A

360W

0~20V

0~18A

3.3kg

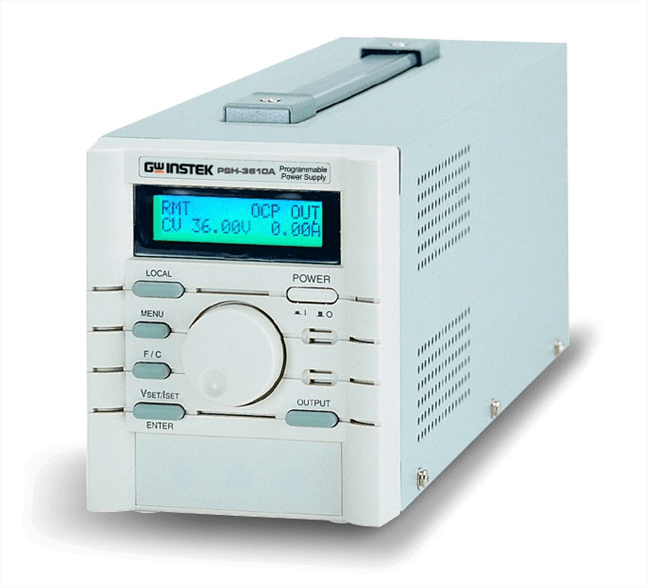

PSH-3610A

360W

0~36V

0~10A

3.3kg

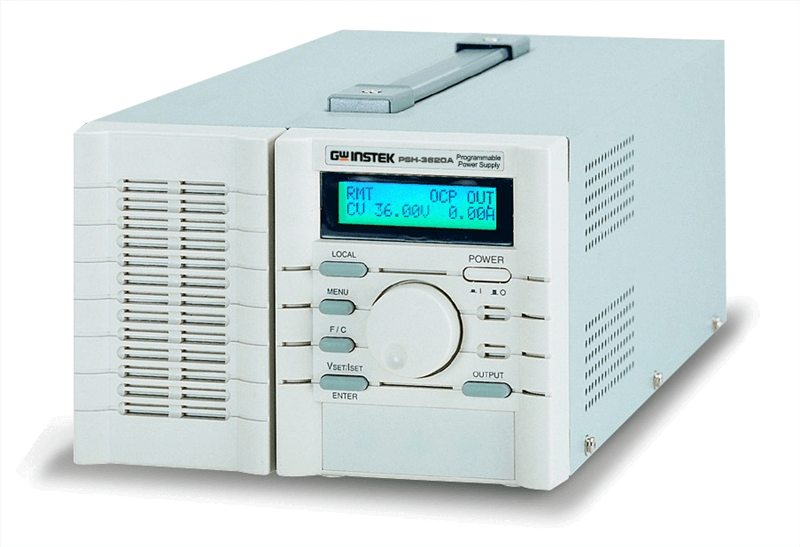

PSH-3620A

720W

0~36V

0~20A

6.2kg

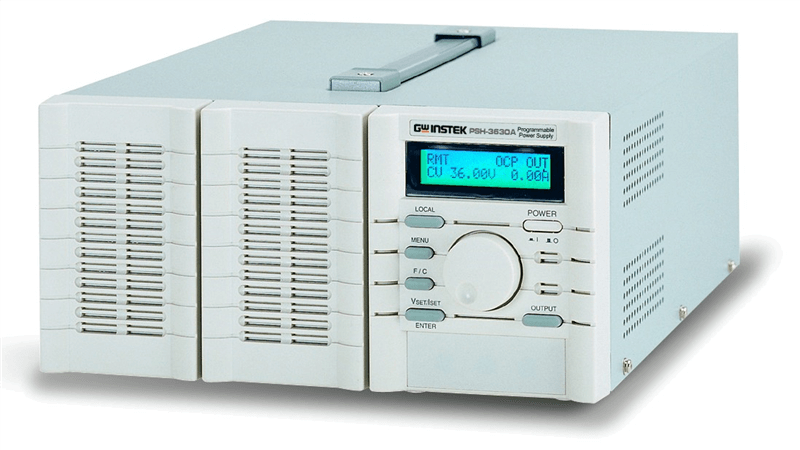

PSH-3630A

1080W

0~36V

0~30A

9.3kg
