The PSB-2000 series, which is a high power density, programmable and multi-range output DC power supply. There are six models in the series including one power booster unit. The PSB-2000 series has the output voltage of 0~80V and 0~800V, and the output power ranges of 0~400W and 0~800W. The multi-range output functionality facilitates flexible collocations of higher voltage and larger current under the rated power range. Both series and parallel connections can be applied to the PSB-2000 series to fulfill the requirements of higher power output range.

The PSB-2000 series provides three sets of preset function keys to memorize regularly used settings of voltage, current and power that users can recall rapidly. The sequence function, via RS232C, USB interface or optional GPIB interface, can connect with the computer to produce output power defined by sequence of a series of set voltage and current steps that are defined by the computer. This function is often used to establish a standard test procedure for the verification of the influence on DUTs done by the swiftly changing operating conditions.

The PSB-2000 series protects over voltage and over current. The power supply output function will be shut down to protect DUTs while the protection mechanism is triggered to function. When conducting battery charging operation, the Hi-W mode of thePSB-2000 series will prevent reverse current from damaging power supply. The PSB-2000 series provides analog control and analog monitor interfaces on the rear panel to control PSB-2000 output via the external voltage or to externally monitor voltage and current output status of power supply. PSB-2000 panel can be rotated 90 degree angle suitable for vertical or horizontal position to accommodate the ideal space utilization.

Features:

Output Voltage Rating : 80V/800V
Output Power Rating : 400W~800W
Constant Power Output for Multi-Range(V&I)Operation
Series and Parallel Operation(2 Units in Series or 4 Units in parallel Maximum)
Sequence function edited by PC will be controlled through power supply optional interface
Standard Interafce: RS-232C / USB / Analog Control Interface
Optional Interface: GPIB

More products INSTEK

GOODWILL INSTEK AFG-303X SERIES

• Input/output signal ground independent of housing and signal ground between channels also insulated.
• Synchronized phase operates up to 6 units and 12 channels
• Pulse waveform parameters can be set independently for more precise timing
• Harmonic signal generator

GOODWILL INSTEK GDM-8034

• 8 Functions AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode Test and Audible Continuity Beeper
• High Voltage 1000V and 20A Current Range
• 0.5% Basic DCV Accuracy
• LCD Display

GOODWILL INSTEK GDM-400 & GDM-300

• 22000 Counts Auto/Manual Ranging (GDM-461)
• 4000 Counts Auto/Manual Ranging (GDM-397/398)
• 6000 Counts Auto/Manual Ranging (GDM-360)
• Capacitance, Frequency Measurement
• Continuity Beeper/Diode Test

GOODWILL INSTEK GDM-8261A

• Dual Measurements to perform two selected measurements simultaneously
• Bright Vacuum Fluorescent Display (VFD)
• Provide AC+DC Voltage or Current Measurement Functions
• 11 Measurement Functions & 10 Math Functions

GOODWILL INSTEK AFG-200/100 SERIES

• Frequency range: 1uHz~25MHz
• 1uHz frequency resolution
• Built-in 120 MSa/s, 10 bit resolution and arbitrary waveform editing function with 4k point memory
• Dual channel models support coupling, tracking, and phase functions

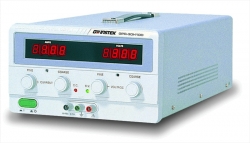

GOODWILL INSTEK GPS-X303 SERIES
