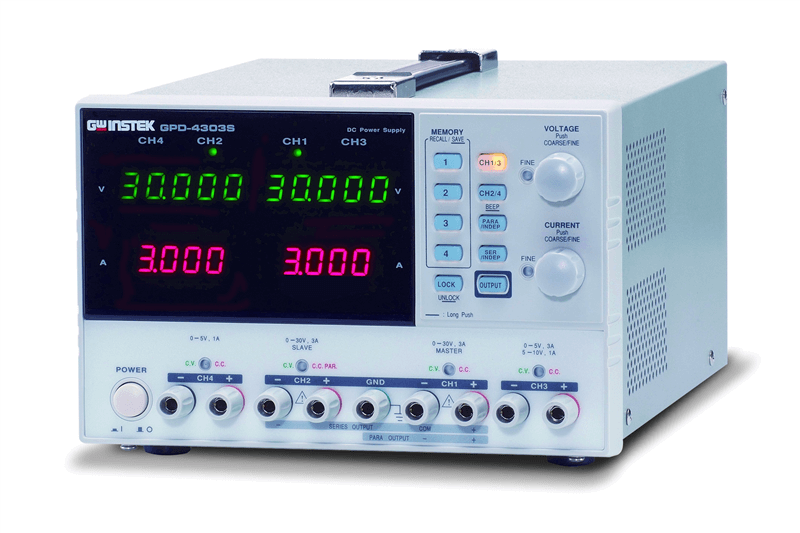

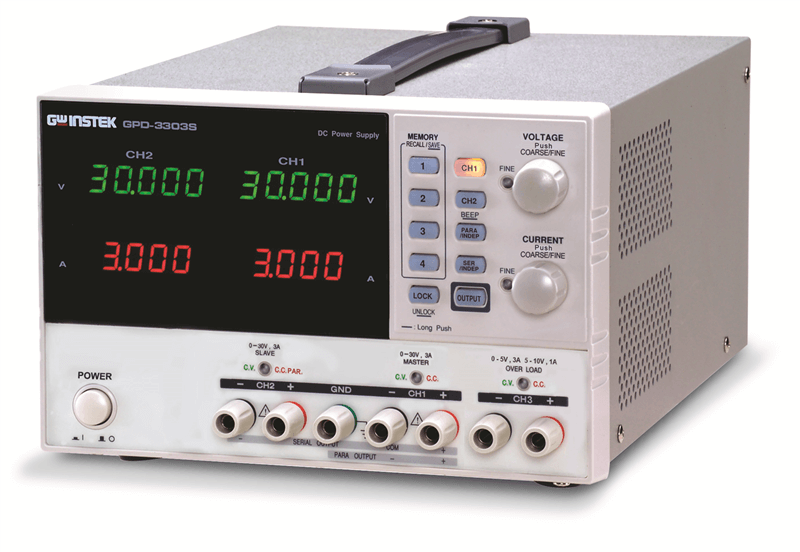

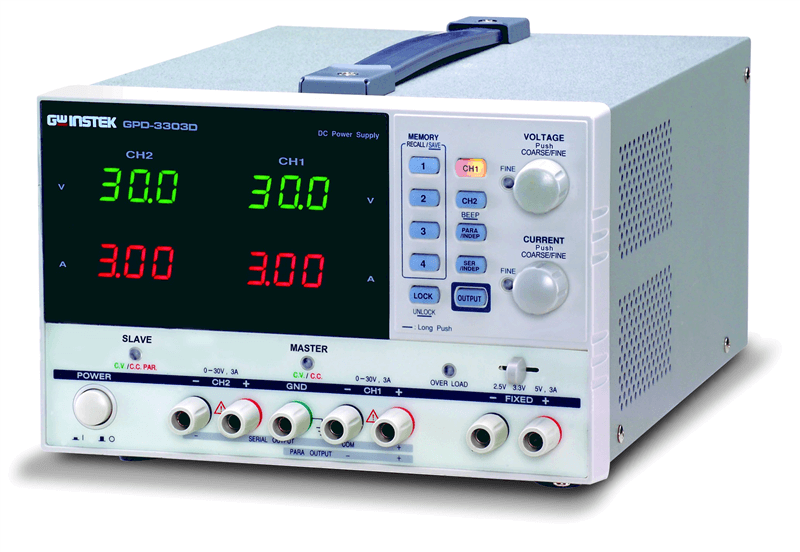

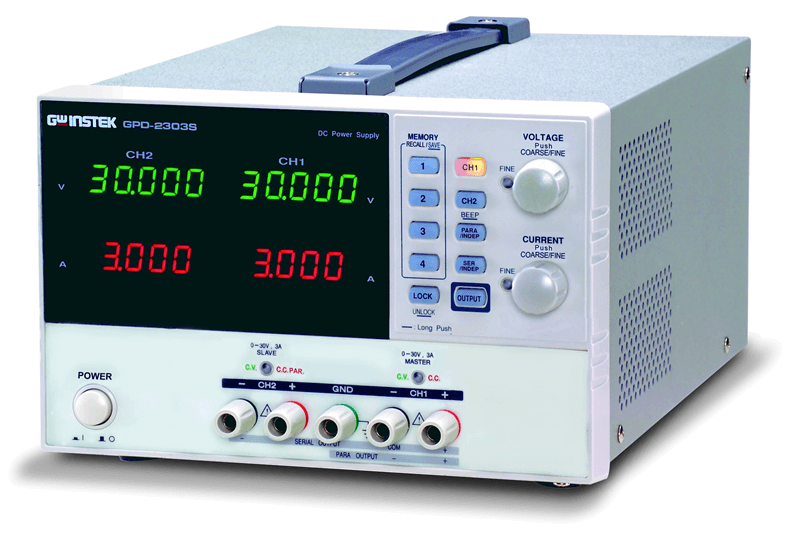

GOODWILL INSTEK GPD-Series

Code: GOODWILL INSTEK GPD-Series




Datasheet PDF, 3.04 Mb


Description

The GPD-X303S Series contain the superior technology and high quality which GW Instek had established through its long history of power supply design and manufacturing.The GPD-X303 Series offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control. Additionally , the GPD-X303S Series provide easy operation , a wide selection of panel setting and operation , a wide selection of panel settings. All these features make the GPD-X303 Series the most proming new comer in the power supply maeket.



Features:

  • 2/3/4 Independent Isolated Output
  • 4 LED Display Sets: 3 digits after decimal point
  • Minimum Resolution :
  • 1mV/1mA(GPD-2303D/GPD-3303S/GPD-4303S)
  • 100mV/10mA(GPD-3303D)
  • Digital panel control(rotary encoder Switch, rubber key with indicator)
  • User-friendly operation, coarse/fine volume control
  • 4 Sets Save/Recall
  • Key-Lock
  • Output on/off
  • Tracking Series and Parallel mode
  • Smart cooling fan achieving low noise
  • USB Standard Interface
  • PC Software & USB Driver
  • Labview driver
