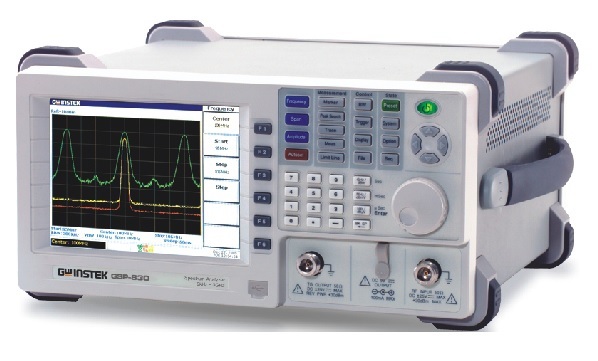

RF Spectrum Analyzer 9kHz..3GHz Gw Instek GSP-830

Opt. 01

Tracking Generator

Tracking Generator

- Frequency Range: 9k~3GHz

- Amplitude Range: -50dBm~0dBm

- Amplitude Accuracy: ±1dB@100MHz, 0dBm

- Amplitude Flatness: ±1dB@0dBm

- Harmonics: <-30dBc typical

- Reverse Power: +30dBm

- Impedance: Type: N female, 50O nominal

- RF output VSWR: < 2:1

Opt. 02

Battery pack

*  11.1V Li-Ion battery pack *2

Opt. 03

± 1ppm Stability

*   ±1ppm, 0~50 °C , ±1ppm/yr

Opt. 04

300Hz RBW

*   RBW 300Hz, 3dB bandwidth, RBW Accuracy: 20%

Opt. 05

EMI Filter 9kHz & 120kHz RBW(*)

*   RBW selections: 9kHz & 120kHz, 6dB bandwidth, Accuracy: 15%

Opt. 06

10kHz & 100kHz RBW (*)

*   RBW selections: 10kHz & 100kHz, 3dB bandwidth,  Accuracy: 15%

Opt. 07

Demodulator (*)

* Demodulation: AM/ FM

* Output: Internal speaker, 3.5mm stereo jack wired for mono operation

*   RBW selection: 10kHz & 100kHz, 3dB bandwidth, Accuracy: 15%

Opt. 08

GPIB Interface

*   IEEE 488 bus

Note:

1. (*) Only one option can be selection between Opt. 05, 06, 07

2. All options are factory-installed except opt.02.

OPTIONAL ACCESSORIES

ATA-001

BNC Antenna

(An additional ADP-001 is needed for fitting GSP spectrum analyzers)

ATA-002

Near Field Probe

(An additional ADP-001 & GTL-110 is needed for fitting GSP spectrum analyzers)

GAP-801

Preamplifier Preamplifier with 10dB(typical), gain 9kHz ~ 6GHz

GAP-802

Preamplifier Preamplifier with 20dB(typical), gain 9kHz ~ 3GHz

RLB-001

Return Loss Bridge RLB Frequency Range 10MHz ~ 1GHz

GTP-3000

Passive touch Probe Set

PR-03: Passive touch probe, SMA(F)

ADP-002: Adaptor, SMA(J/F) ~ N(P/M)

GTL-303: RF Cable Assembly, SMA(P/M), 600mm

GKT-001

General Kit set

ADP-002: adaptor, SMA(J/F) ~ N(P/M) x 2

ATN-100: 10dB attenuator, N(J/F) ~ N(P/M) x 1

GTL-303: RF cable assembly(SMA(P/M),RD316,600mm)x2

GSC-002: Kit box x 1

GKT-002

CATV Kit set

ADP-001: adaptor, BNC(J/F) ~ N(P/M) x 2

ADP-101: adaptor, BNC(J/F)75O ~ BNC(P/M)50Ox 2

GTL-304: RF cable assembly(RG223,N(P/M)-N(J/F),300mm)x2

GSC-003: Kit box x 1

GKT-003

RLB Kit set

GAK-001: termination 50 , N(P/M) x 1

GAK-002: Cap with chain, N(P/M) x 1

GTL-302: RF cable assembly(RG223,N(P/M),300mm)x2

GSC-004: Kit box x 1

GKT-006

EMI Probe Kit set

ANT-01: 6cm Loop, H-Field Probe x 1

ANT-02: 3cm Loop, H-Field Probe x 1

ANT-03 6mm Stub tip, E- Field Probe x 1

PR-03: Touch Passive Probe x 1 ADP-02: N(P/M)~SMA(J/F) Adapter x 1

ADP-01: N(P/M)~BNC(J/F) Adapter x 1

Test Lead: BNC(P/M)~BNC(P/M) RF Cable x 1

Test Lead: SMA(P/M)~SMA(P/M) RF Cable x 1

GRA-404

Rack Adapter Panel

Rack Mounting (19", 4U)

GSC-001

Soft Carrying Case

GTL-301

RF Cable RG 223 N(P/M), 1000mm

GTL-401

DC Power Cord

DC power cord with DC Jack and lighter plug, Current 5A
