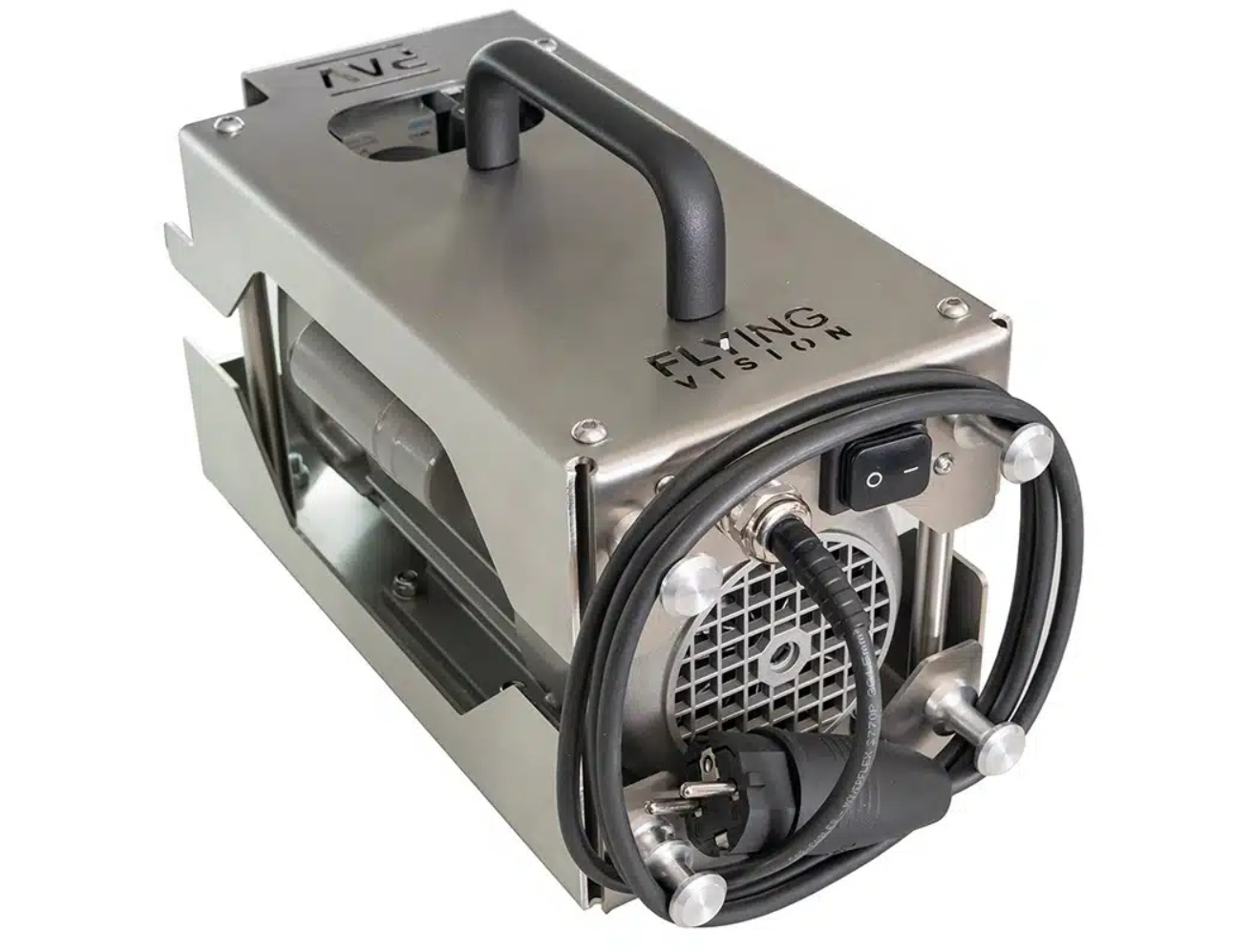

PAV-B8 Vacuum Pump for Leak Vacuum Box esting

Code: PAV-B8



Datasheet PDF, 6.22 Mb


Description

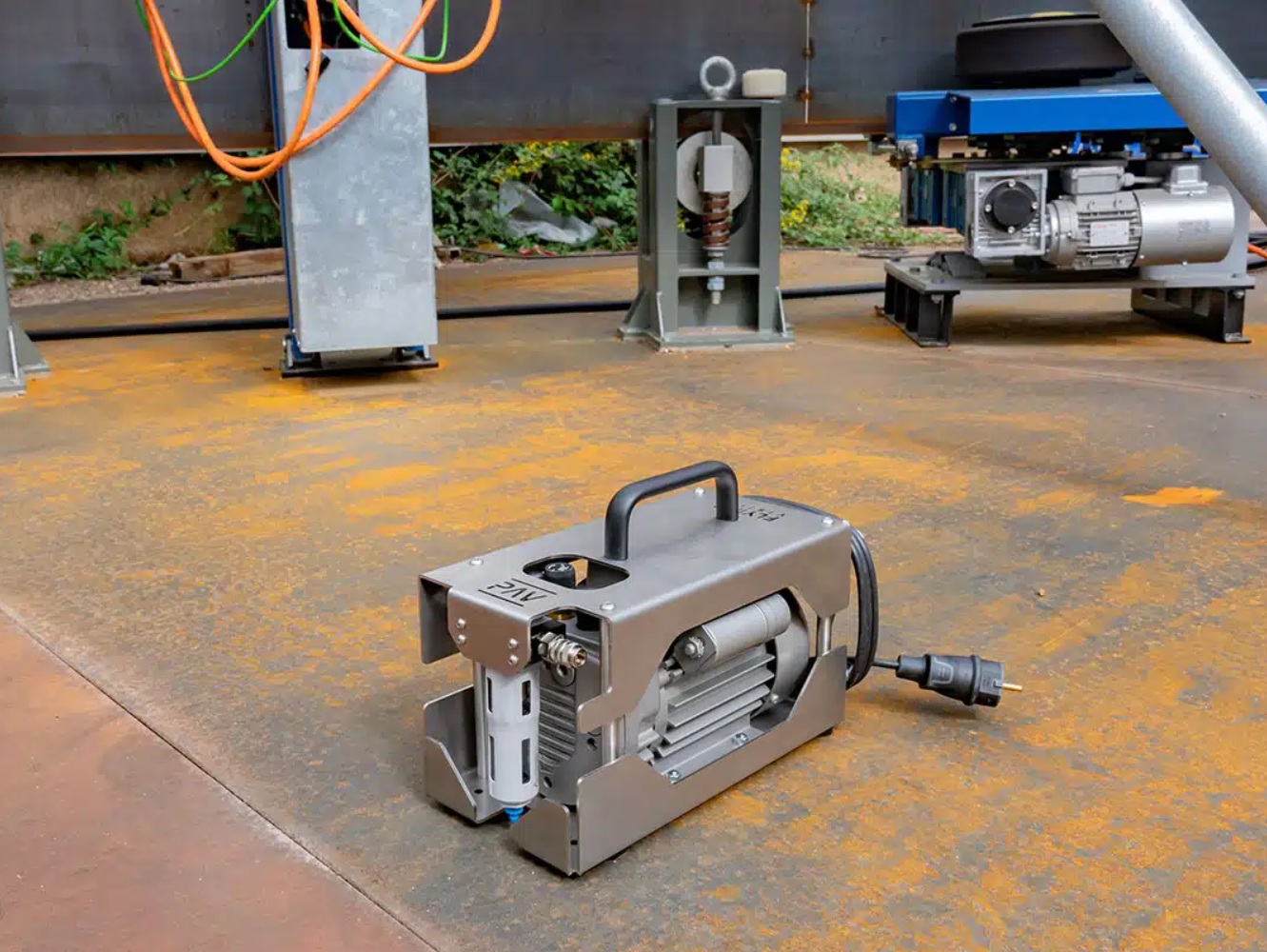

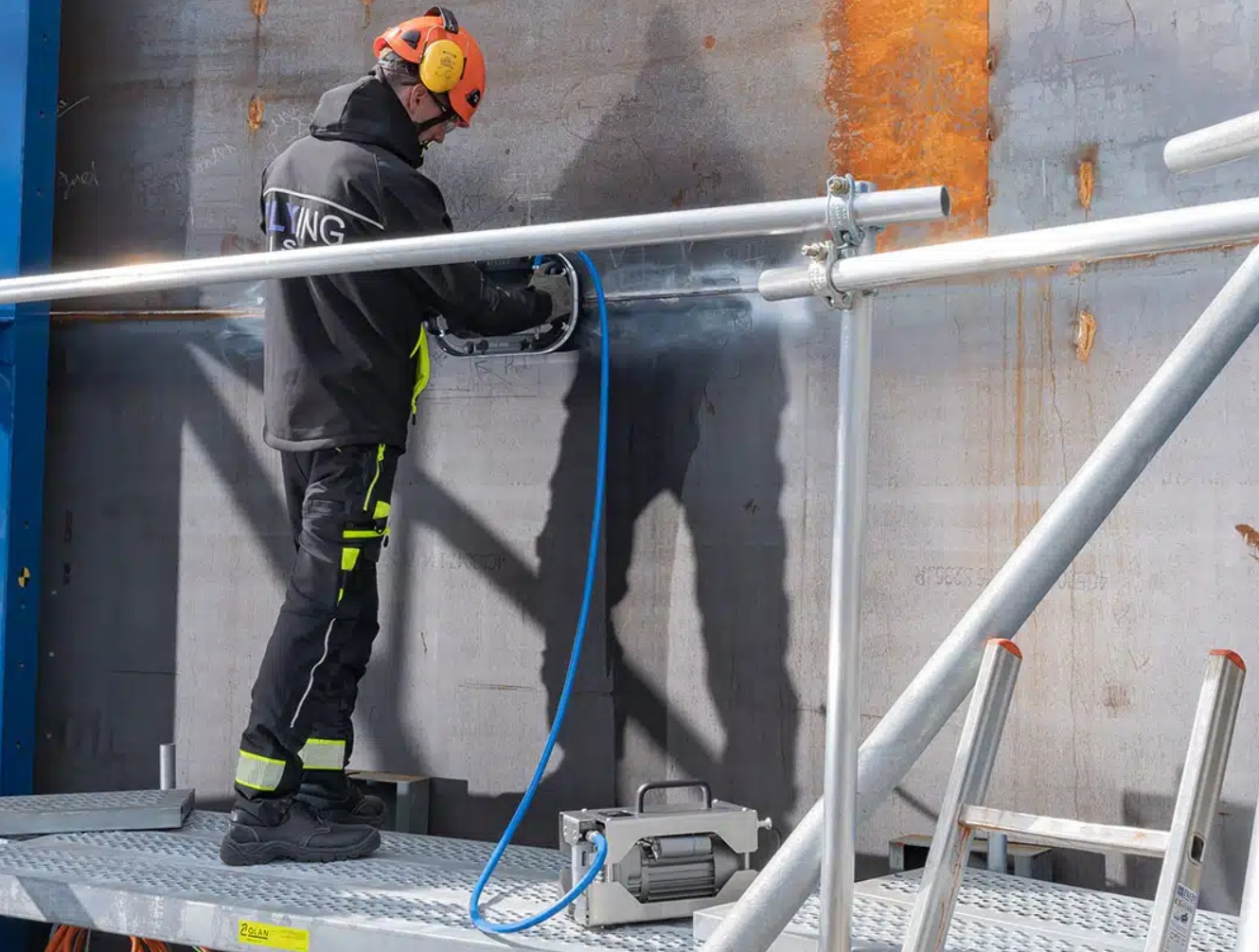

Dry Vane Vacuum Pump for on-site Vacuum Box Testing

High-performance dry vacuum pump (8m³/h – 150 mbar vacuum) in 110/120V – 50/60Hz and 220/240V – 50/60Hz, perfectly suited for the most demanding field conditions, with optimal reliability and minimal maintenance.
Its dry vane vacuum system eliminates the need for oil lubrication, allowing the pump to operate in any orientation without the risk of failure or environmental contamination.

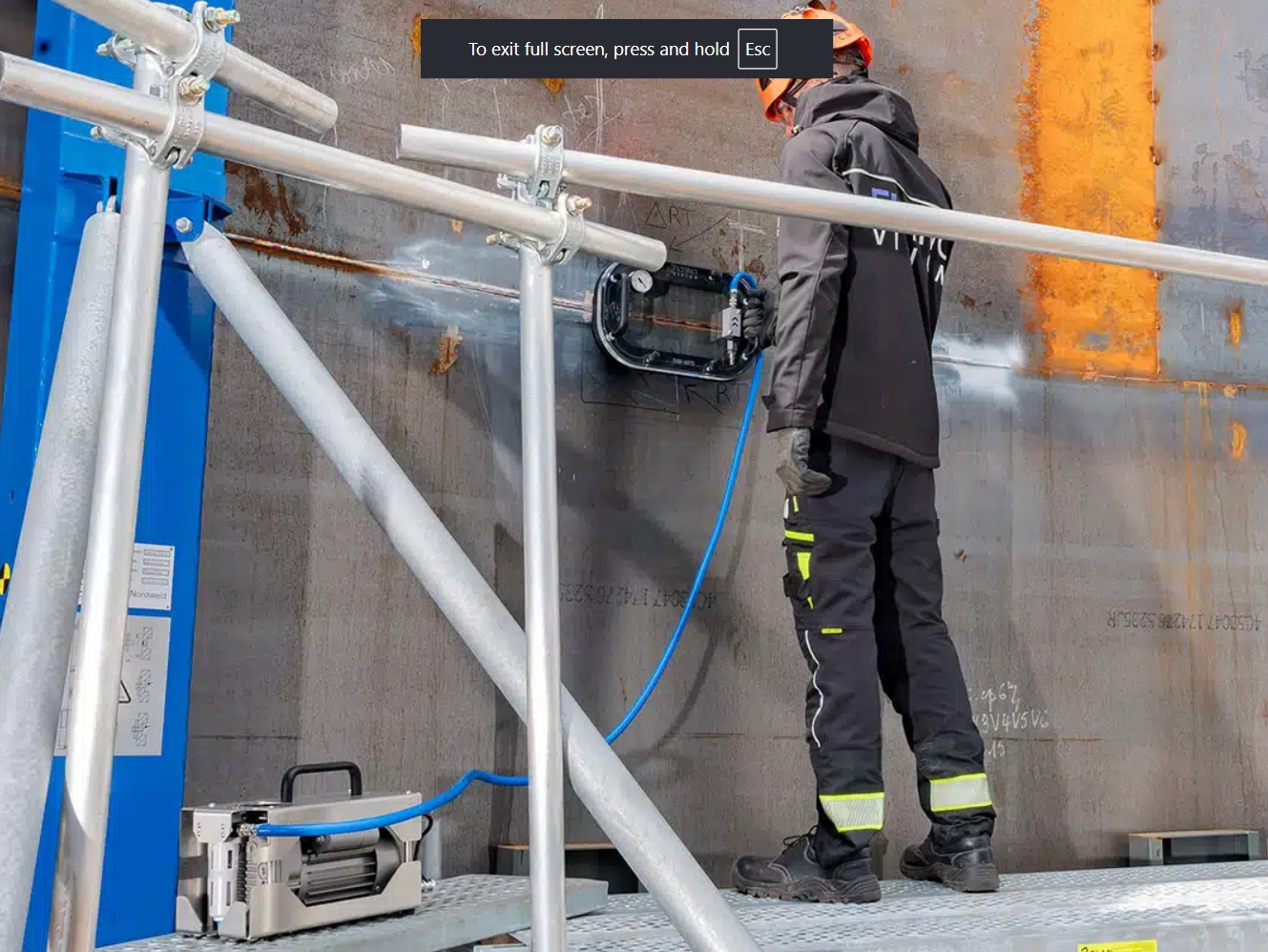

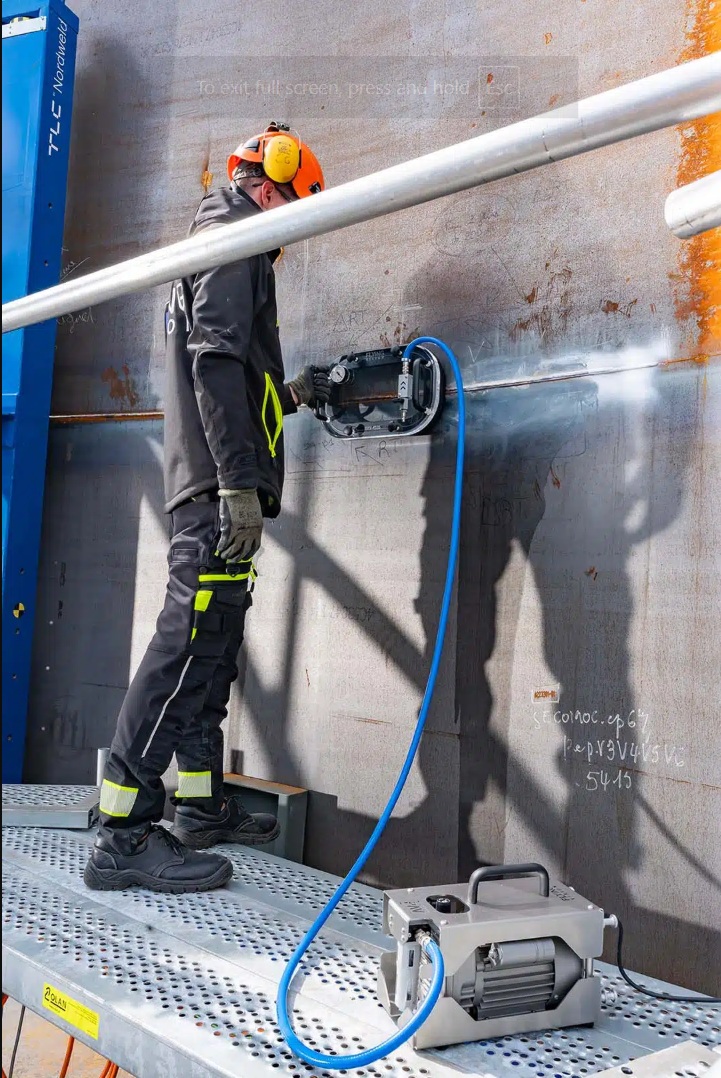

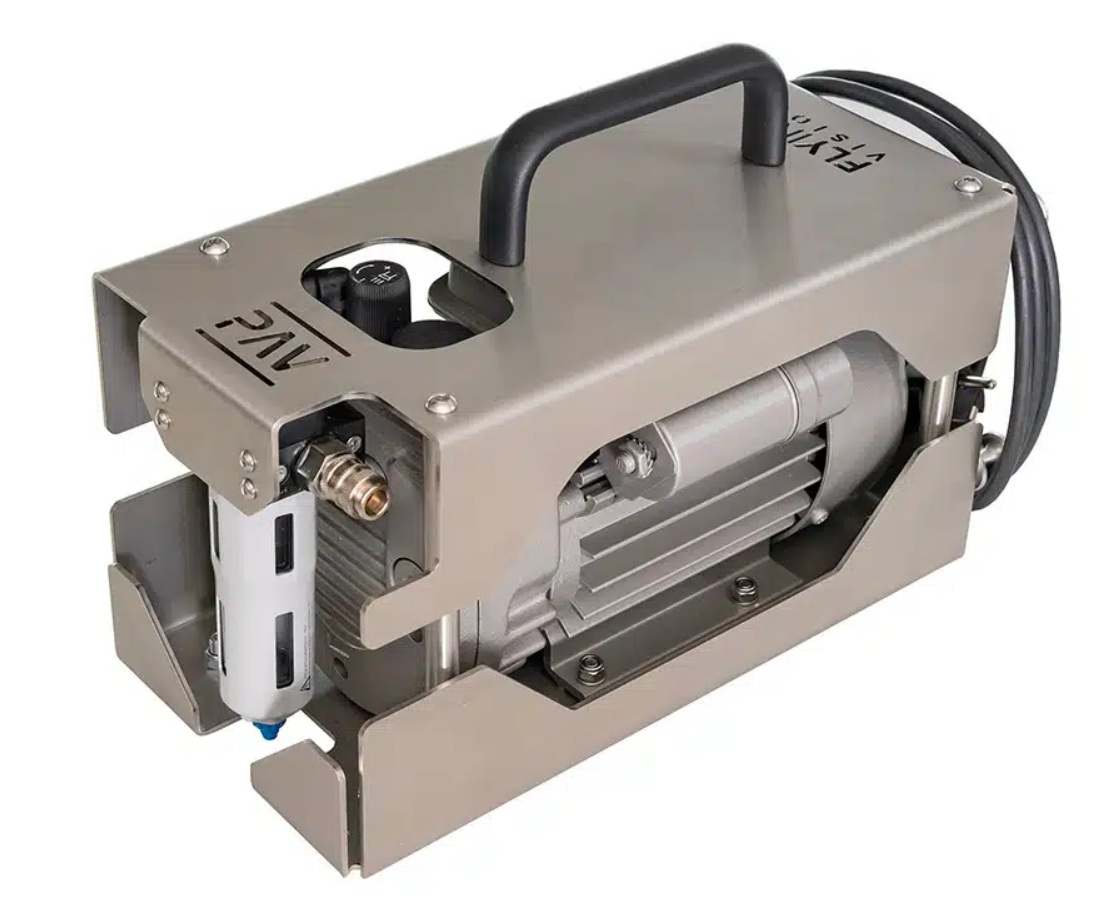

The PAV-B8 Dry Vacuum Pump is a high-performance solution specifically engineered for vacuum box leak testing under the most demanding field conditions. Delivering an 8 m³/h nominal airflow and an ultimate vacuum of 150 mbar, this compact yet robust pump outperforms traditional oil-lubricated systems by eliminating lubrication altogether—thanks to its self-lubricating dry vane technology.

This design not only reduces maintenance to a minimum but also allows the pump to operate in any orientation without risk of failure or environmental contamination. Housed in a reinforced stainless steel casing, the PAV-B8 also features quick Rectus 21 connections, an adjustable minimum vacuum valve, a dust-proof exhaust valve, and a dual-phase filter for particles and moisture. With noise levels as low as 58 dB, low vibrations, and an all-in-one design that integrates power control and pneumatic connections within the casing, the PAV-B8 offers unmatched ergonomics and ease of use compared to other pumps on the market.

Available in 220V or 110V versions, it ensures reliable performance for vacuum box leak testing and a wide range of other industrial applications, setting new standards in safety, performance, reliability, and efficiency.


Uncompromising reliability, durability and performance

1. High Performance
Nominal airflow of 8 m³/h and an ultimate vacuum of 150 mbar

2. Monobloc Housing
100% oil-free operation with self-lubricating graphite vanes

3. Reinforced Design
Compact and robust stainless steel casing

4. Quiet Operation
Noise level of 58 dB at 50 Hz

5. Low Vibrations
Single-shaft direct drive system

6. Single-shaft direct drive system
Rectus 21 Male Stainless Steel

7. Adjustment Valve
Adjustable minimum vacuum valve

8. Exhaust Valve
Automatic dust-proof system

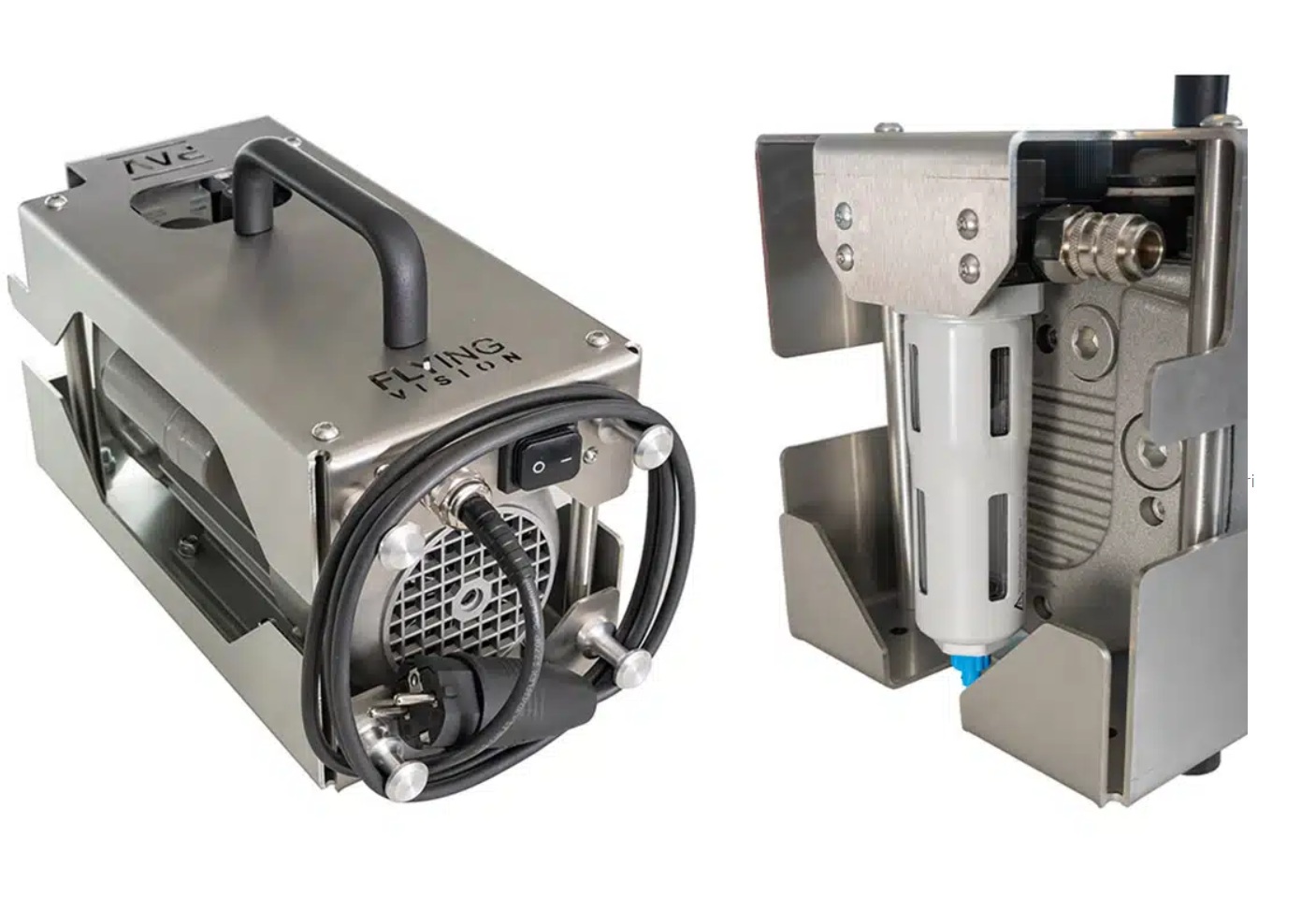

9. Filtration System
Dual-phase filter for particles/water

10. Power Supply
Reinforced polyurethane cable

KIT COMPOSITION
Complete vacuum pump ready to use with 2 meters cable
2 meters vacuum hose with quick coupling

Presentation video






More products FLYING VISION

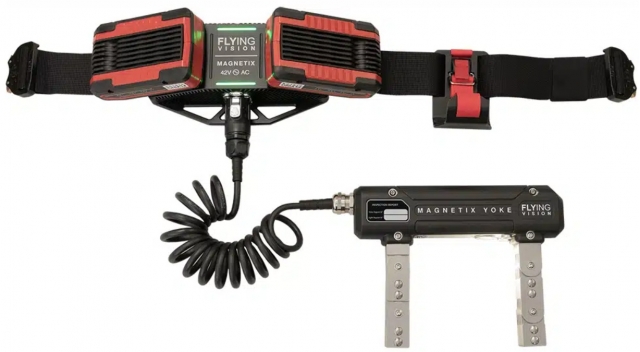

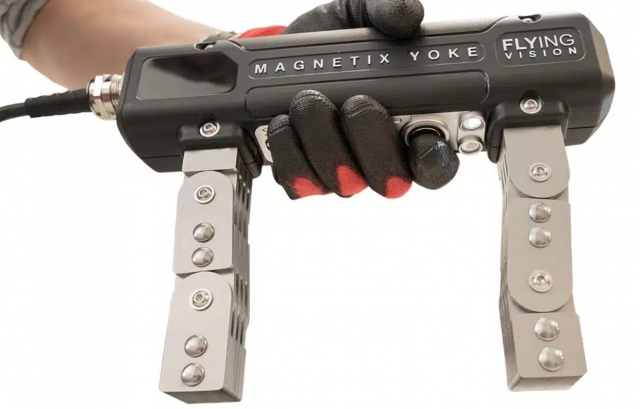

MAGNETIX MGN4 MAGNETIC YOKE FOR DETECTING SURFACE FLAWS IN FERROMAGNETIC ELEMENTS WELDS

• Greater freedom of movement
• No mains power cord constraints
• Easier access in restricted areas
• Improved portability for field work
• Reliable performance in harsh environments
• A practical solution for demanding on-site MPI inspections


PAV-B8 VACUUM PUMP FOR LEAK VACUUM BOX ESTING

• High-performance dry vacuum pump (8m³/h – 150 mbar vacuum) in 110/120V – 50/60Hz and 220/240V – 50/60Hz,
• perfectly suited for the most demanding field conditions, with optimal reliability and minimal maintenance.
• Its dry vane vacuum system eliminates the need for oil lubrication, allowing the pump to operate in any orientation without the risk of failure or environmental contamination.

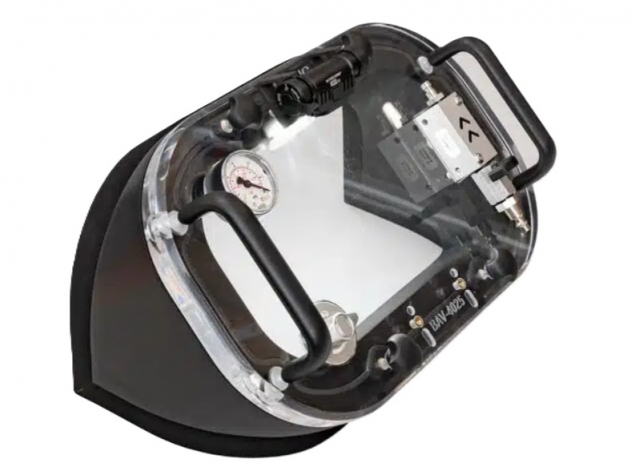

FLYING VISION BAV-4025A VACUUM BOX FOR LEAK TESTING ON INTERNAL OR EXTERNAL FILLET CORNER WELDS ON STORAGE TANKS

• The BAV-4025A is a modular vacuum box (400 × 250 mm)
• engineered for leak testing of fillet welds and corner joints, both internal and external.
• Available with multiple gasket bases and dedicated angle profiles,
• it offers precise adaptation to complex geometries.

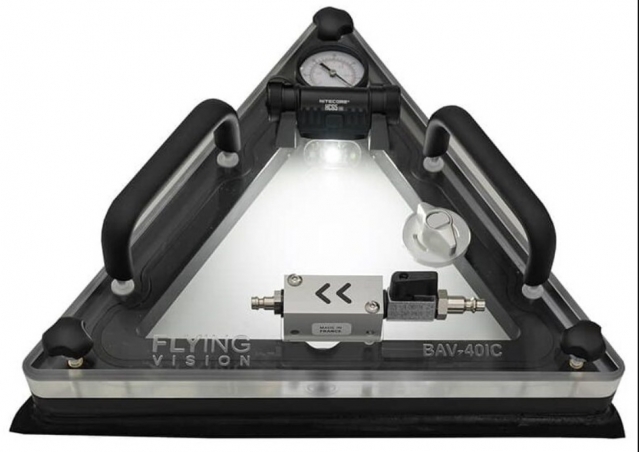

BAV40C VACUUM BOX FOR LEAK TESTING OF INTERNAL CORNERS WELDING OF TANKS CONTAINERS WELDED STRUCTURES

• The BAV40C inside corner vacuum box is designed for vacuum leak testing of 90° internal corners and three-plane corner configurations.
• It is ideal for inspecting weld areas where the bottom meets two sidewalls in tanks, containers, and welded structures.
• Compact and easy to handle, it provides fast and reliable leak detection in inside corner applications.

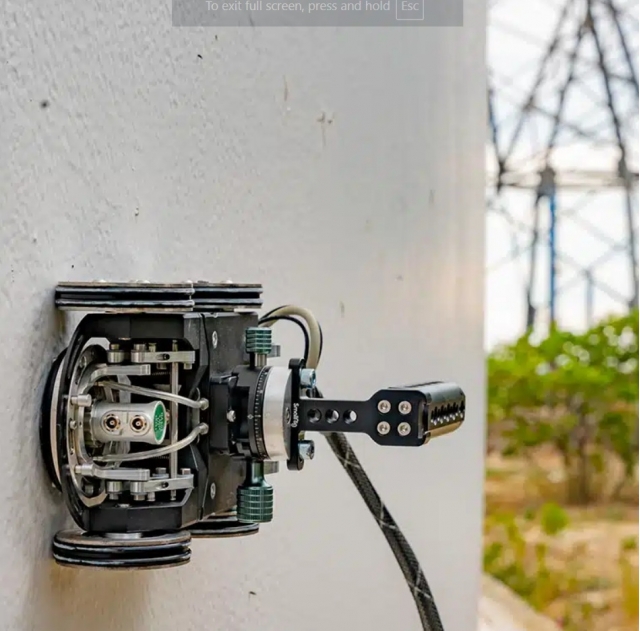

B-SCAN ULTRASONIC INSPECTION SYSTEM SCANNER RUC1

• The RUC1 is an ultrasonic Height Control B-Scan Runner
• specifically developed to address the challenges posed by inspections of elements at heights

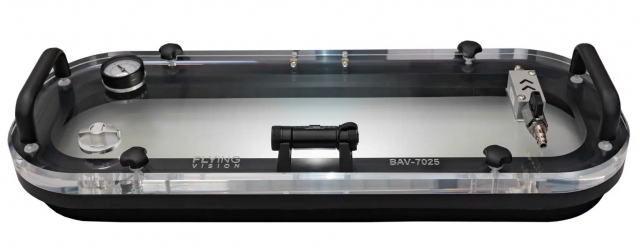

FLYING VISION BAV-7025 VACUUM BOX FOR WELD BUBBLE LEAK TESTING OF TANK, PIPELINE, SHIP

• High-Performance Vacuum Box for Precise Leak Testing – BAV-7025
• The BAV7025 series features a 700 x 250 mm inspection area and is designed for fast, efficient vacuum box testing of long weld seams.
• Available with 35 mm or 45 mm foam
• Vacuum box designed for leak testing on:
• Flat welds
• Lap joints, lap welds
• Internal or external circular welds depending on the curvature radius


ELECTROMAGNETIC YOKE FOR DETECTION OF CRACS FLAWS FAULTS IN FEROUS MATERIALS

• Low-voltage AC electromagnetic yoke combining advanced MCU-controlled architecture
• enhanced operator safety, high magnetic performance
• optional integrated UVW lighting for demanding visible and fluorescent MPI inspections.

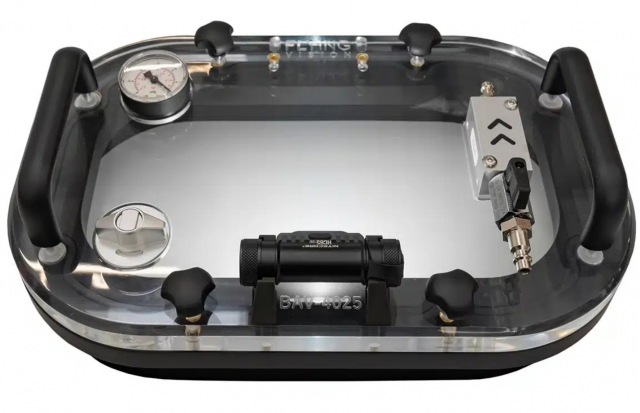

FLYING VISION BAV-4025 VACUUM BOX FOR WELD BUBBLE LEAK TESTING OF TANK, PIPELINE, SHIP VESSELS
