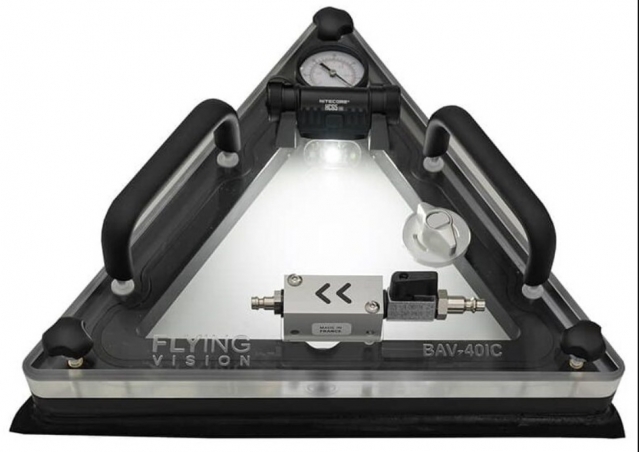

BAV40C Vacuum Box for leak testing of internal corners welding of tanks containers welded structures

Code: BAV40C BAV-40C



Datasheet PDF, 6.22 Mb


Description

The BAV40C inside corner vacuum box is designed for vacuum leak testing of 90° internal corners and three-plane corner configurations.
It is ideal for inspecting weld areas where the bottom meets two sidewalls in tanks, containers, and welded structures.
Compact and easy to handle, it provides fast and reliable leak detection in inside corner applications.

VACUUM BOX - PRESENTATION AND APPLICATIONS
High-Performance Vacuum Box for Precise Leak Testing – BAV-40C
The BAV40C is an inside corner vacuum box developed for precise vacuum leak testing of 90° internal corners, where the bottom meets the sidewalls.Designed for tanks, containers, and welded structures, it is particularly effective on three-plane corner configurations that require reliable sealing and clear indication reading. With its interchangeable base and dual operating capability, it provides a versatile solution for compressed air or vacuum pump leak testing in the field.

90° Internal Corner Weld Testing
The BAV40C is specifically intended for leak testing
of inside corners, especially where the bottom meets the sidewalls at 90°. This makes it well suited for tanks, ship structures, containers, and
mechanically welded assemblies
Its dedicated corner configuration helps maintain
effective sealing contact over the inspection area,
even on demanding three-plane geometries.




Standard accessories

VACUUM BOX - KIT COMPOSITION

Réf: BAV-A400-001 – BAV40C – int. corner vacuum box kit

Viewing window includes :
Vacuum gauge
Hybrid vacuum system
Handling grip
Quick control valve
Insert for optional lighting
Base assembly includes :
Factory-bonded foam
Sealing gasket
Inserts for window fixation
Connection hose :
50 cm hose with quick coupling to claw coupling for Venturi effect vacuum system



More products FLYING VISION

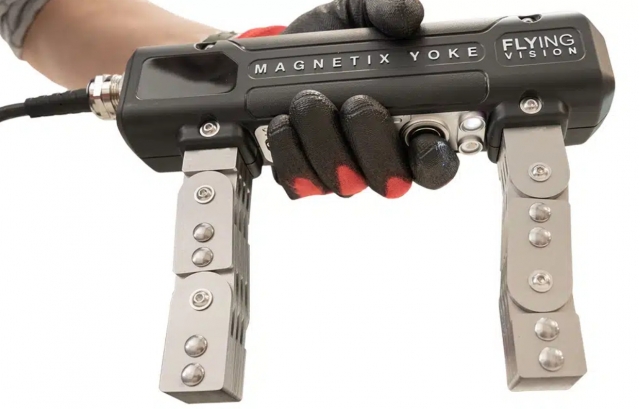

MAGNETIX MGN4 MAGNETIC YOKE FOR DETECTING SURFACE FLAWS IN FERROMAGNETIC ELEMENTS WELDS

• Greater freedom of movement
• No mains power cord constraints
• Easier access in restricted areas
• Improved portability for field work
• Reliable performance in harsh environments
• A practical solution for demanding on-site MPI inspections

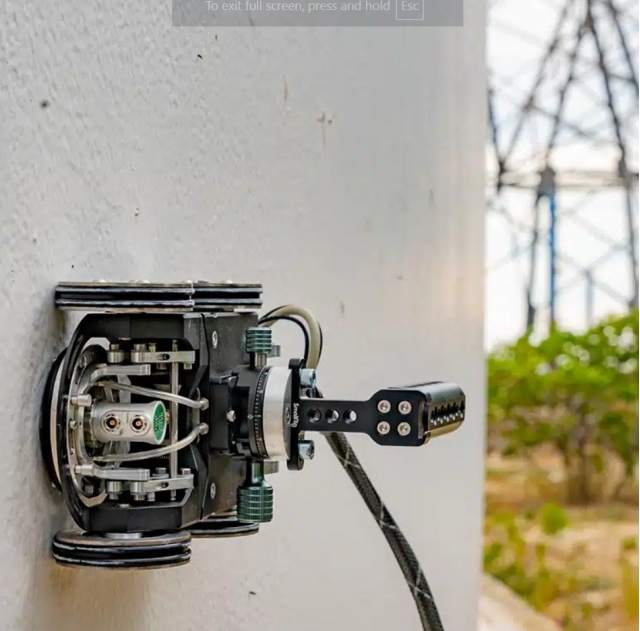

B-SCAN ULTRASONIC INSPECTION SYSTEM SCANNER RUC1

• The RUC1 is an ultrasonic Height Control B-Scan Runner
• specifically developed to address the challenges posed by inspections of elements at heights


BAV40C VACUUM BOX FOR LEAK TESTING OF INTERNAL CORNERS WELDING OF TANKS CONTAINERS WELDED STRUCTURES

• The BAV40C inside corner vacuum box is designed for vacuum leak testing of 90° internal corners and three-plane corner configurations.
• It is ideal for inspecting weld areas where the bottom meets two sidewalls in tanks, containers, and welded structures.
• Compact and easy to handle, it provides fast and reliable leak detection in inside corner applications.

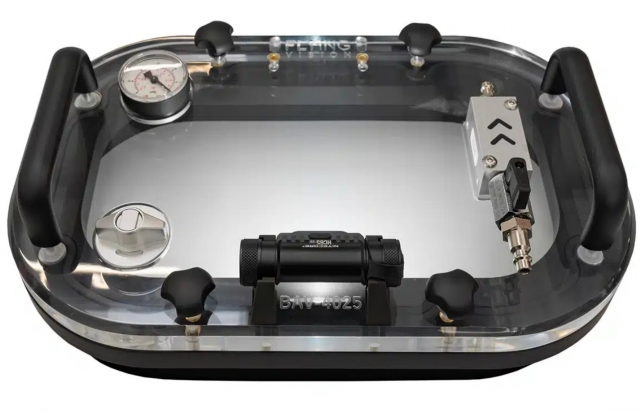

FLYING VISION BAV-4025 VACUUM BOX FOR WELD BUBBLE LEAK TESTING OF TANK, PIPELINE, SHIP VESSELS

• High-Performance Vacuum Box for Precise Leak Testing – BAV-4025
• The BAV-4025 is a compact, versatile vacuum box (400 × 250 mm)
• designed for precise leak testing of flat welds, lap joints, curved seams, and complex geometries.
• The BAV4025 series features a 400 x 250 mm inspection area and is designed for fast, efficient vacuum box testing of long weld seams.
• Available with 35mm 45mm 75mm foam
• Vacuum box designed for leak testing on:
• Flat welds
• Lap joints, lap welds
• Internal or external circular welds depending on the curvature radius

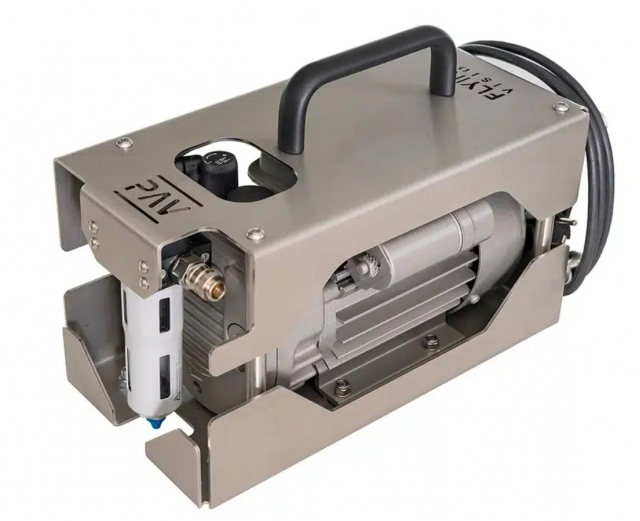

PAV-B8 VACUUM PUMP FOR LEAK VACUUM BOX ESTING

• High-performance dry vacuum pump (8m³/h – 150 mbar vacuum) in 110/120V – 50/60Hz and 220/240V – 50/60Hz,
• perfectly suited for the most demanding field conditions, with optimal reliability and minimal maintenance.
• Its dry vane vacuum system eliminates the need for oil lubrication, allowing the pump to operate in any orientation without the risk of failure or environmental contamination.

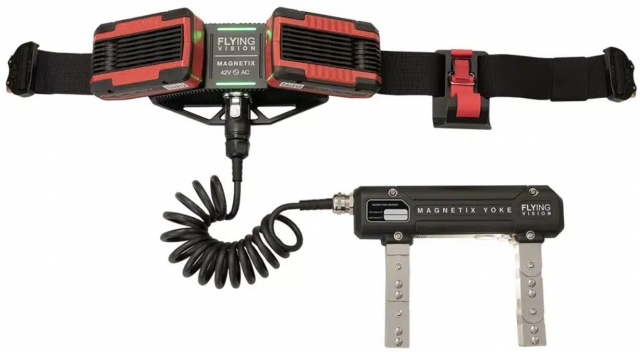

ELECTROMAGNETIC YOKE FOR DETECTION OF CRACS FLAWS FAULTS IN FEROUS MATERIALS

• Low-voltage AC electromagnetic yoke combining advanced MCU-controlled architecture
• enhanced operator safety, high magnetic performance
• optional integrated UVW lighting for demanding visible and fluorescent MPI inspections.

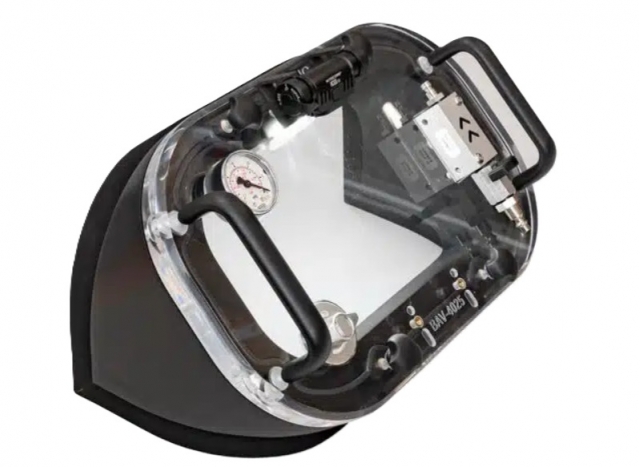

FLYING VISION BAV-4025A VACUUM BOX FOR LEAK TESTING ON INTERNAL OR EXTERNAL FILLET CORNER WELDS ON STORAGE TANKS

• The BAV-4025A is a modular vacuum box (400 × 250 mm)
• engineered for leak testing of fillet welds and corner joints, both internal and external.
• Available with multiple gasket bases and dedicated angle profiles,
• it offers precise adaptation to complex geometries.

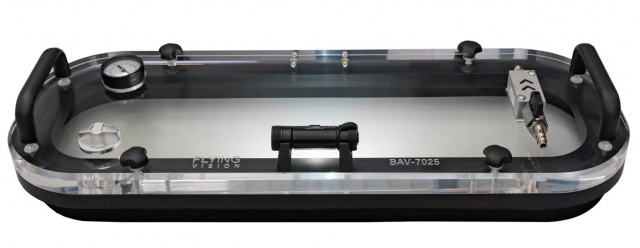

FLYING VISION BAV-7025 VACUUM BOX FOR WELD BUBBLE LEAK TESTING OF TANK, PIPELINE, SHIP
