Electromagnetic Yoke for Detection of Cracs Flaws Faults in Ferous materials

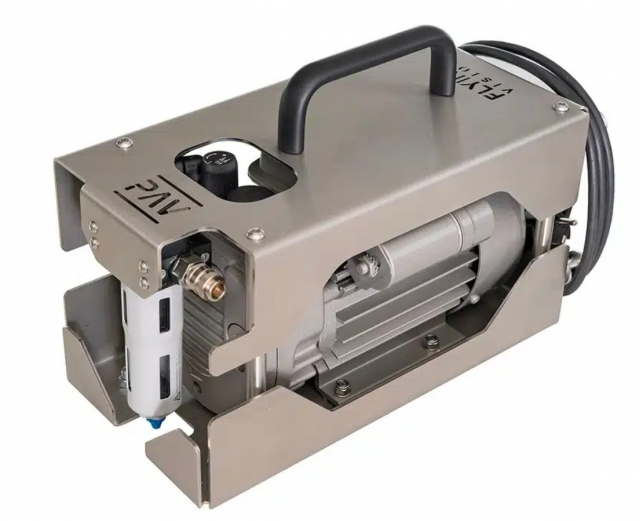

• High-performance dry vacuum pump (8m³/h – 150 mbar vacuum) in 110/120V – 50/60Hz and 220/240V – 50/60Hz,
• perfectly suited for the most demanding field conditions, with optimal reliability and minimal maintenance.
• Its dry vane vacuum system eliminates the need for oil lubrication, allowing the pump to operate in any orientation without the risk of failure or environmental contamination.

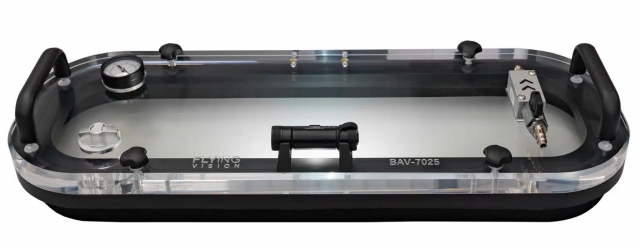

• High-Performance Vacuum Box for Precise Leak Testing – BAV-7025
• The BAV7025 series features a 700 x 250 mm inspection area and is designed for fast, efficient vacuum box testing of long weld seams.
• Available with 35 mm or 45 mm foam
• Vacuum box designed for leak testing on:
• Flat welds
• Lap joints, lap welds
• Internal or external circular welds depending on the curvature radius

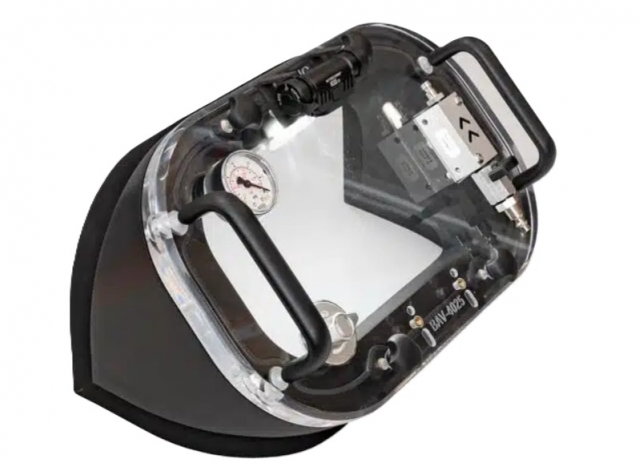

• The BAV-4025A is a modular vacuum box (400 × 250 mm)
• engineered for leak testing of fillet welds and corner joints, both internal and external.
• Available with multiple gasket bases and dedicated angle profiles,
• it offers precise adaptation to complex geometries.

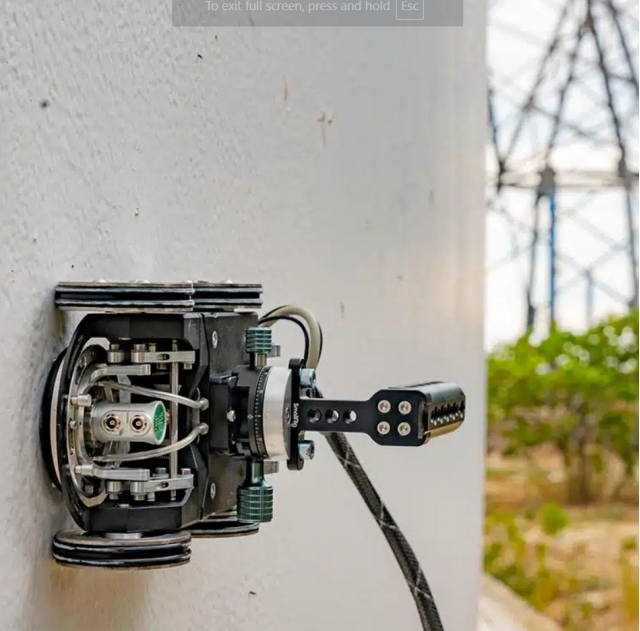

• The RUC1 is an ultrasonic Height Control B-Scan Runner
• specifically developed to address the challenges posed by inspections of elements at heights

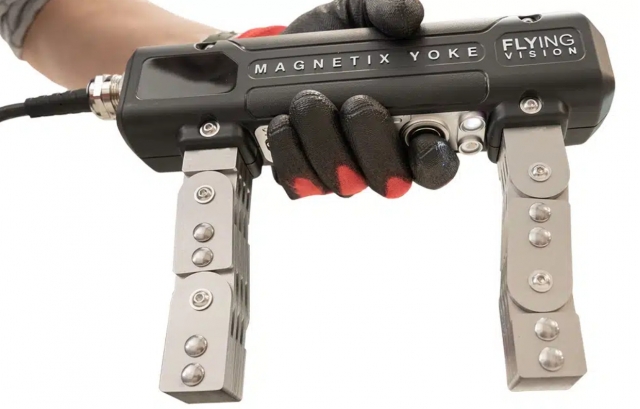

• Low-voltage AC electromagnetic yoke combining advanced MCU-controlled architecture
• enhanced operator safety, high magnetic performance
• optional integrated UVW lighting for demanding visible and fluorescent MPI inspections.

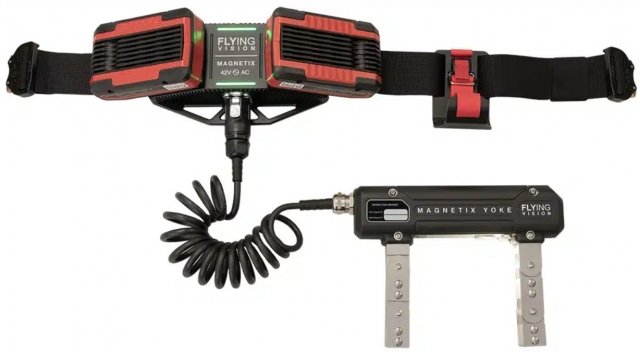

• Greater freedom of movement
• No mains power cord constraints
• Easier access in restricted areas
• Improved portability for field work
• Reliable performance in harsh environments
• A practical solution for demanding on-site MPI inspections

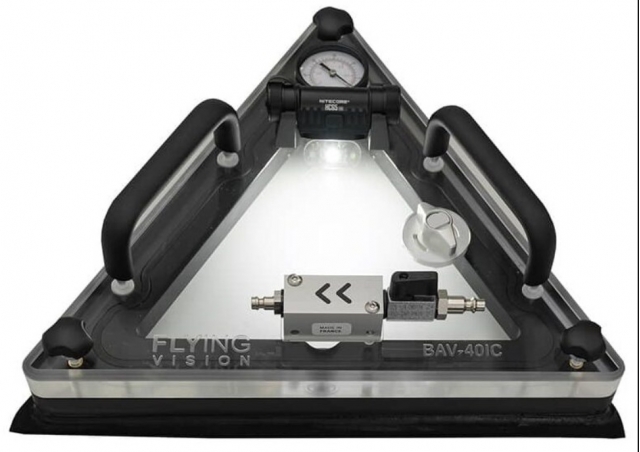

• The BAV40C inside corner vacuum box is designed for vacuum leak testing of 90° internal corners and three-plane corner configurations.
• It is ideal for inspecting weld areas where the bottom meets two sidewalls in tanks, containers, and welded structures.
• Compact and easy to handle, it provides fast and reliable leak detection in inside corner applications.

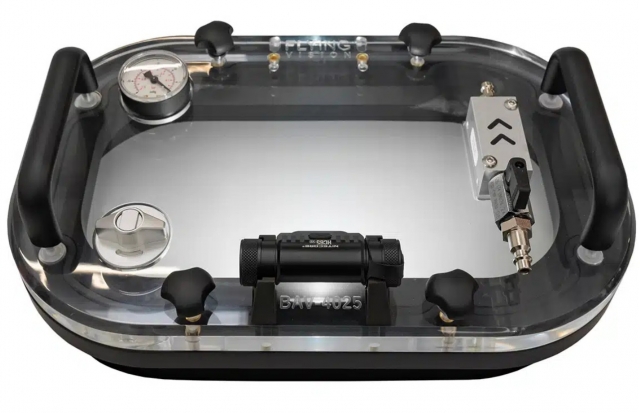

• High-Performance Vacuum Box for Precise Leak Testing – BAV-4025
• The BAV-4025 is a compact, versatile vacuum box (400 × 250 mm)
• designed for precise leak testing of flat welds, lap joints, curved seams, and complex geometries.
• The BAV4025 series features a 400 x 250 mm inspection area and is designed for fast, efficient vacuum box testing of long weld seams.
• Available with 35mm 45mm 75mm foam
• Vacuum box designed for leak testing on:
• Flat welds
• Lap joints, lap welds
• Internal or external circular welds depending on the curvature radius
