B-Scan Ultrasonic Inspection system Scanner RUC1

Code: RUC1



Datasheet PDF, 0.22 Mb


Description

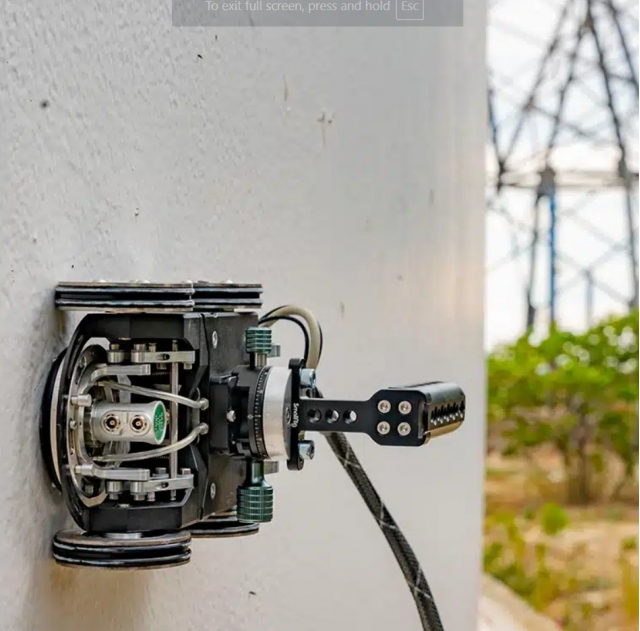

Ultrasonic Height Control B-Scan Runner (RUC1)

Reach new heights in ultrasonic inspection with the RUC1, the perche-deployable Runner B-scan for fast, precise, and secure inspections.

The RUC1 is an ultrasonic Height Control B-Scan Runner specifically developed to address the challenges posed by inspections of elements at heights below 10 meters, which usually require expensive means or involve significant risks for personnel. Designed to be deployed by pole or manually, its innovative design allows for fast, precise, and ergonomic controls for reliable and safe results.


Context and field of application
The RUC1 provides an innovative solution for conducting ultrasonic inspections on structures below 10 meters in height in industries such as petrochemicals, energy, shipbuilding, and heavy industry. Being deployable by perche, this ultrasonic Runner B-scan eliminates the high costs and risks associated with conventional methods. It is particularly suitable for inspecting equipment such as tanks, vessels, vertical pipelines, small storage tanks, boat hulls, and similar structures. It can also be used manually with an ergonomic handle for easy handheld B-scan inspections at human height. The addition of magnetic wheels greatly enhances the stability of the Runner, allowing it to remain in position without being held when used manually on ferromagnetic surfaces.

Avantages
Performance
Control height and difficult access with precision and speed
-
Height control without deploying expensive and complex means
-
Innovative kinematics for optimal stability during controls

Quality
High quality components for optimum reliability
-
High quality encoder for total control accuracy

Security​
Reduction of human risks thanks to pole inspections

Versatility
Adaptable to many surface geometries, whether flat or curved
-
Possibility to use the RUC1 in manual mode or with a pole for greater flexibility

Features
Fonctionnalité : Adhérence et déplacement du produit de contrôle non destructif RUC
Adhesion and displacement
Equipped with optional interchangeable and magnetic wheels for stable control on vertical surfaces or pipes without slipping. Its standard attachment system allows it to interface with several accessories for greater versatility.

Fonctionnalité : Capacite de contrôle en hauteur du produit de contrôle non destructif RUC
Height control capability
Carbon fiber pole allowing deployment at a height of up to 10 meters for inspections in difficult-to-access areas by limiting the risks and reducing the costs of the means usually implemented (rope access technicians, scaffolding, complex robots, etc.).

Fonctionnalité : codeur intègre et connectiques du produit de contrôle non destructif RUC
Integrated encoder and connectors
Integrated encoder system for precise and fast B-Scan checks. Resistant and durable connectors for use in difficult conditions.

Quick Translator Change
Quick interface system for easy change of probe according to the sheet thickness to be checked

Fonctionnalité : Utilisation manuelle du produit de contrôle non destructif RUC
Manual use
Ergonomic handle for easy, comfortable manual control.


More products FLYING VISION

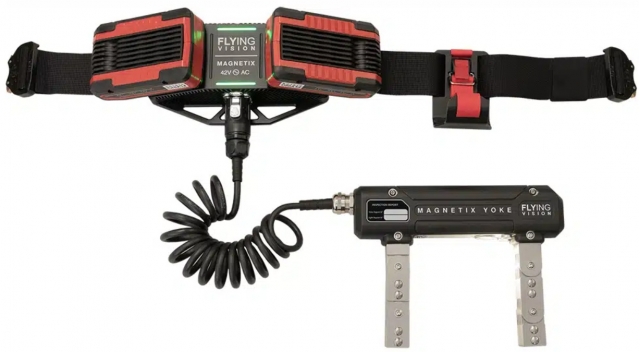

MAGNETIX MGN4 MAGNETIC YOKE FOR DETECTING SURFACE FLAWS IN FERROMAGNETIC ELEMENTS WELDS

• Greater freedom of movement
• No mains power cord constraints
• Easier access in restricted areas
• Improved portability for field work
• Reliable performance in harsh environments
• A practical solution for demanding on-site MPI inspections

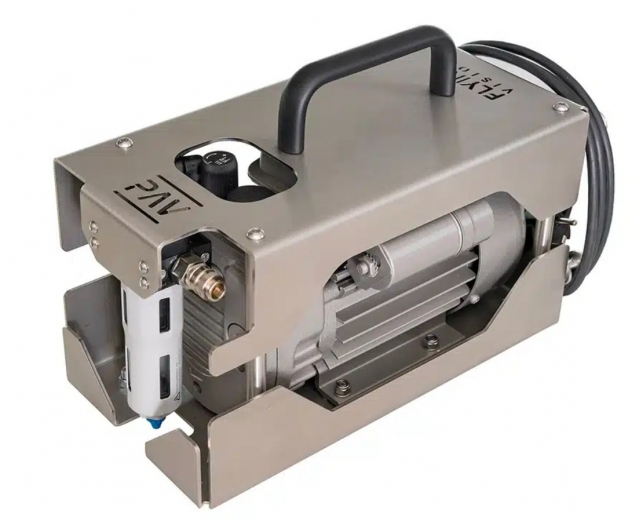

PAV-B8 VACUUM PUMP FOR LEAK VACUUM BOX ESTING

• High-performance dry vacuum pump (8m³/h – 150 mbar vacuum) in 110/120V – 50/60Hz and 220/240V – 50/60Hz,
• perfectly suited for the most demanding field conditions, with optimal reliability and minimal maintenance.
• Its dry vane vacuum system eliminates the need for oil lubrication, allowing the pump to operate in any orientation without the risk of failure or environmental contamination.

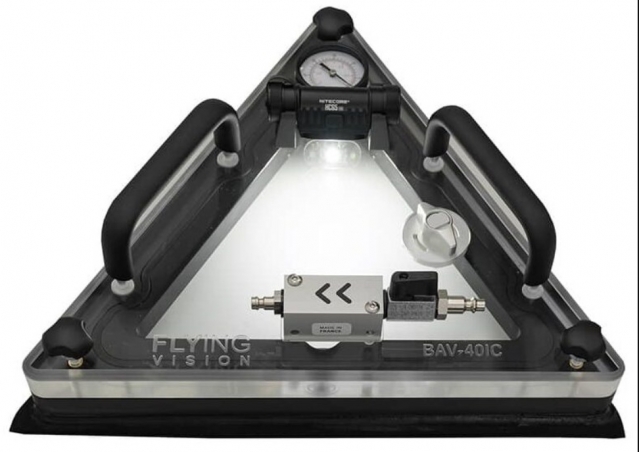

BAV40C VACUUM BOX FOR LEAK TESTING OF INTERNAL CORNERS WELDING OF TANKS CONTAINERS WELDED STRUCTURES

• The BAV40C inside corner vacuum box is designed for vacuum leak testing of 90° internal corners and three-plane corner configurations.
• It is ideal for inspecting weld areas where the bottom meets two sidewalls in tanks, containers, and welded structures.
• Compact and easy to handle, it provides fast and reliable leak detection in inside corner applications.

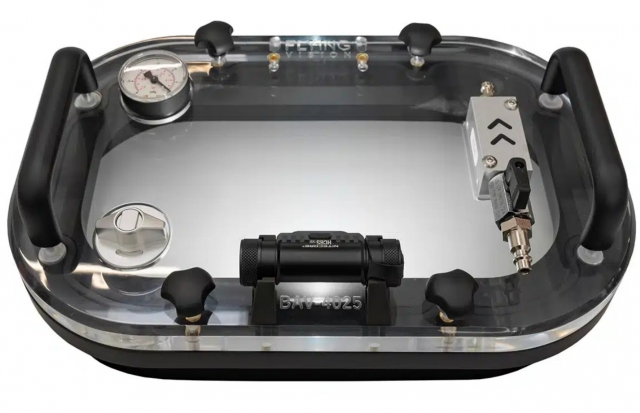

FLYING VISION BAV-4025 VACUUM BOX FOR WELD BUBBLE LEAK TESTING OF TANK, PIPELINE, SHIP VESSELS

• High-Performance Vacuum Box for Precise Leak Testing – BAV-4025
• The BAV-4025 is a compact, versatile vacuum box (400 × 250 mm)
• designed for precise leak testing of flat welds, lap joints, curved seams, and complex geometries.
• The BAV4025 series features a 400 x 250 mm inspection area and is designed for fast, efficient vacuum box testing of long weld seams.
• Available with 35mm 45mm 75mm foam
• Vacuum box designed for leak testing on:
• Flat welds
• Lap joints, lap welds
• Internal or external circular welds depending on the curvature radius

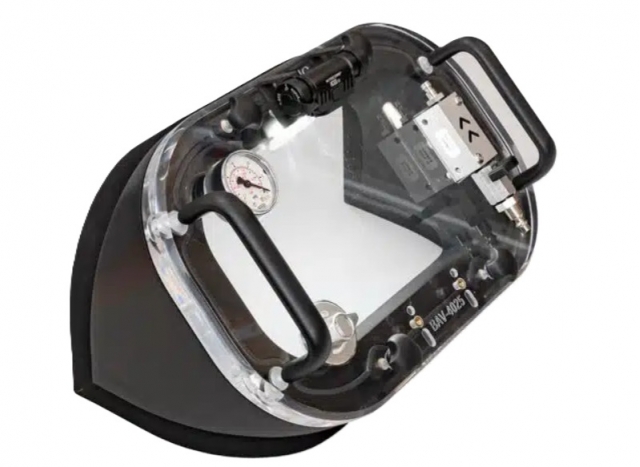

FLYING VISION BAV-4025A VACUUM BOX FOR LEAK TESTING ON INTERNAL OR EXTERNAL FILLET CORNER WELDS ON STORAGE TANKS

• The BAV-4025A is a modular vacuum box (400 × 250 mm)
• engineered for leak testing of fillet welds and corner joints, both internal and external.
• Available with multiple gasket bases and dedicated angle profiles,
• it offers precise adaptation to complex geometries.

B-SCAN ULTRASONIC INSPECTION SYSTEM SCANNER RUC1

• The RUC1 is an ultrasonic Height Control B-Scan Runner
• specifically developed to address the challenges posed by inspections of elements at heights

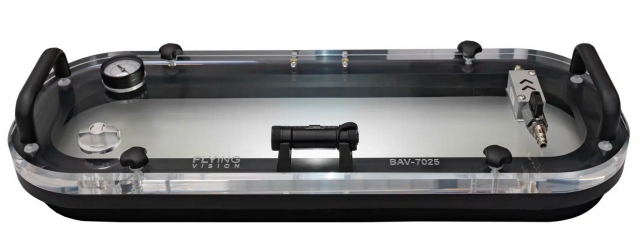

FLYING VISION BAV-7025 VACUUM BOX FOR WELD BUBBLE LEAK TESTING OF TANK, PIPELINE, SHIP

• High-Performance Vacuum Box for Precise Leak Testing – BAV-7025
• The BAV7025 series features a 700 x 250 mm inspection area and is designed for fast, efficient vacuum box testing of long weld seams.
• Available with 35 mm or 45 mm foam
• Vacuum box designed for leak testing on:
• Flat welds
• Lap joints, lap welds
• Internal or external circular welds depending on the curvature radius

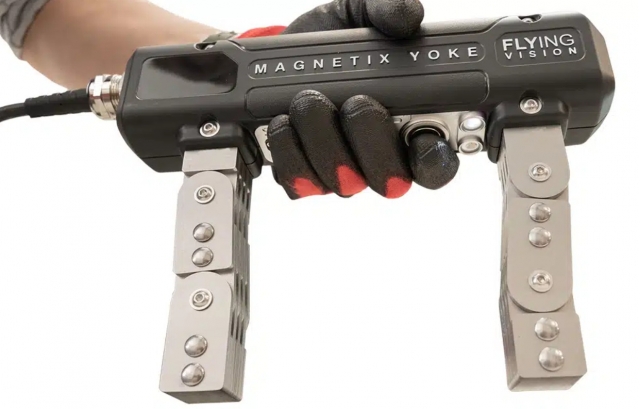

ELECTROMAGNETIC YOKE FOR DETECTION OF CRACS FLAWS FAULTS IN FEROUS MATERIALS
