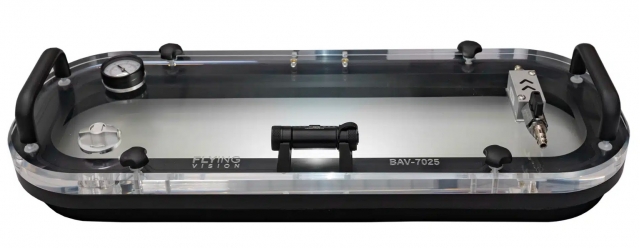

FLYING VISION BAV-7025 Vacuum Box for Weld Bubble Leak Testing of Tank, Pipeline, Ship

Code: FLYING-VISION BAV-7025 BAV7025 BAV-A100-001



Datasheet PDF, 6.22 Mb


Description

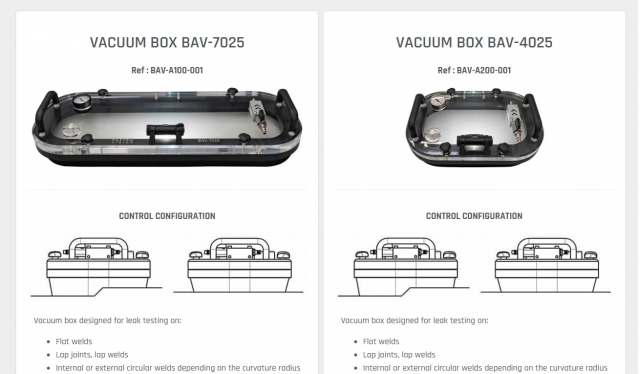

Vacuum box designed for leak testing on:

  • Flat welds
  • Lap joints, lap welds
  • Internal or external circular welds depending on the curvature radius

The BAV7025 is an NDT vacuum box designed for flat surfaces, tailored for leak testing welds, sheets, waterproofing membranes, and coverings on roof terraces, flat roofs in various industrial sectors. Its interchangeable base offers great flexibility to inspect different surfaces and weld configurations, enabling rapid leak detection.

Easily control the tightness, waterproofing of your welds and sheets with the new generation BAV7025 vacuum box with interchangeable base.

  • High-Performance Vacuum Box for Precise Leak Testing – BAV-7025
  • The BAV7025 series features a 700 x 250 mm inspection area and is designed for fast, efficient vacuum box testing of long weld seams.
  • Available with 35 mm or 45 mm foam, our vacuum box can be used for both butt weld and lap weld inspection.
  • An internal 90° version is also available for testing right-angle joints and internal 90° geometries.

OUR SOLUTIONS FOR VACUUM BOX LEAK TESTING (NDT LT)
Flying Vision designs high-performance vacuum box equipment for leak testing of welded joints in NDT and industrial inspection applications.
Our systems are rugged, portable, and engineered to comply with major international standards such as API 650, ASTM E515, EN 1593, as well as maritime-specific regulations including IACS UR S14, Lloyd’s Register Rules, and ABS Steel Vessel Guidelines.

Our complete range of vacuum boxes and dry vacuum pumps is perfectly suited for bubble leak testing of flat, curved, or complex weld seams, and is trusted across oil & gas, shipbuilding, tank manufacturing, and pipeline construction.

Discover reliable, field-ready, and efficient vacuum box testing solutions designed for professionals in quality control and non-destructive testing environments.


Presentation video VACUUM BOXE FLYING VISION







Standard accessories

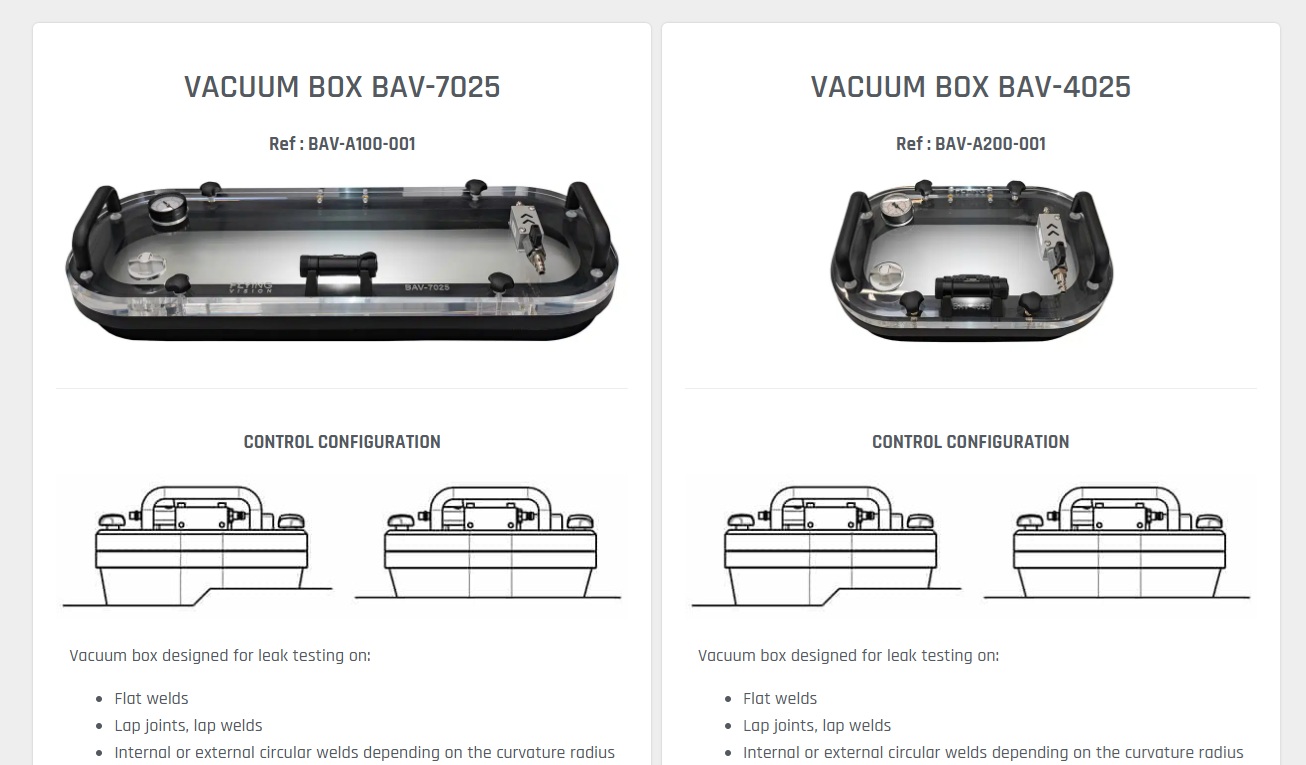

VACUUM BOX - KIT COMPOSITION
BAV-7025 vacuum box kit composition
Réf: BAV-A100-00X – Vacuum Box Kit BAV-7025

Viewing window includes :
Vacuum gauge
Hybrid vacuum system
Handling grip
Quick control valve
Insert for optional lighting
Base assembly includes :
Factory-bonded foam
Sealing gasket
Inserts for window fixation
Connection hose :
50 cm hose with quick coupling to claw coupling for Venturi effect vacuum system


More products FLYING VISION

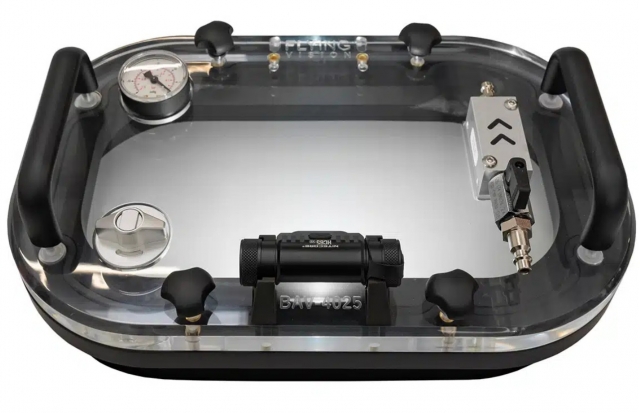

FLYING VISION BAV-4025 VACUUM BOX FOR WELD BUBBLE LEAK TESTING OF TANK, PIPELINE, SHIP VESSELS

• High-Performance Vacuum Box for Precise Leak Testing – BAV-4025
• The BAV-4025 is a compact, versatile vacuum box (400 × 250 mm)
• designed for precise leak testing of flat welds, lap joints, curved seams, and complex geometries.
• The BAV4025 series features a 400 x 250 mm inspection area and is designed for fast, efficient vacuum box testing of long weld seams.
• Available with 35mm 45mm 75mm foam
• Vacuum box designed for leak testing on:
• Flat welds
• Lap joints, lap welds
• Internal or external circular welds depending on the curvature radius

ELECTROMAGNETIC YOKE FOR DETECTION OF CRACS FLAWS FAULTS IN FEROUS MATERIALS

• Low-voltage AC electromagnetic yoke combining advanced MCU-controlled architecture
• enhanced operator safety, high magnetic performance
• optional integrated UVW lighting for demanding visible and fluorescent MPI inspections.

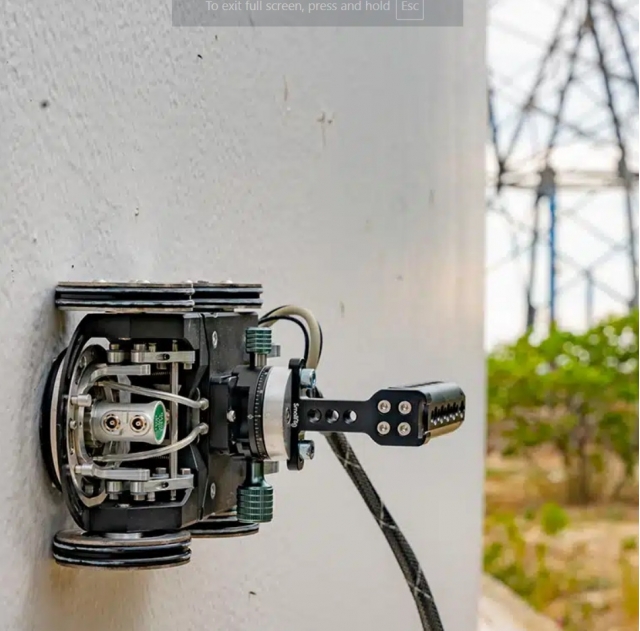

B-SCAN ULTRASONIC INSPECTION SYSTEM SCANNER RUC1

• The RUC1 is an ultrasonic Height Control B-Scan Runner
• specifically developed to address the challenges posed by inspections of elements at heights

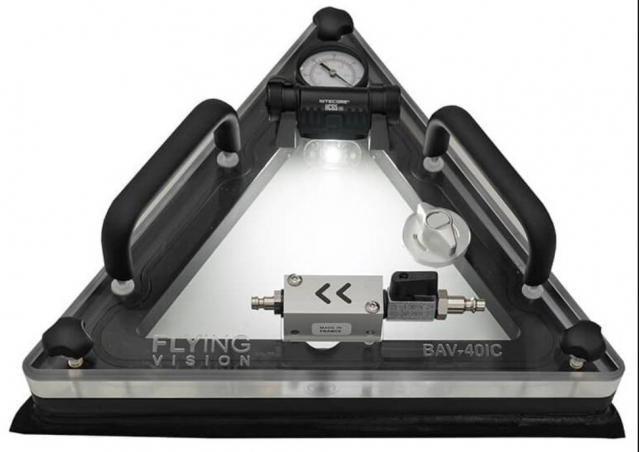

BAV40C VACUUM BOX FOR LEAK TESTING OF INTERNAL CORNERS WELDING OF TANKS CONTAINERS WELDED STRUCTURES

• The BAV40C inside corner vacuum box is designed for vacuum leak testing of 90° internal corners and three-plane corner configurations.
• It is ideal for inspecting weld areas where the bottom meets two sidewalls in tanks, containers, and welded structures.
• Compact and easy to handle, it provides fast and reliable leak detection in inside corner applications.

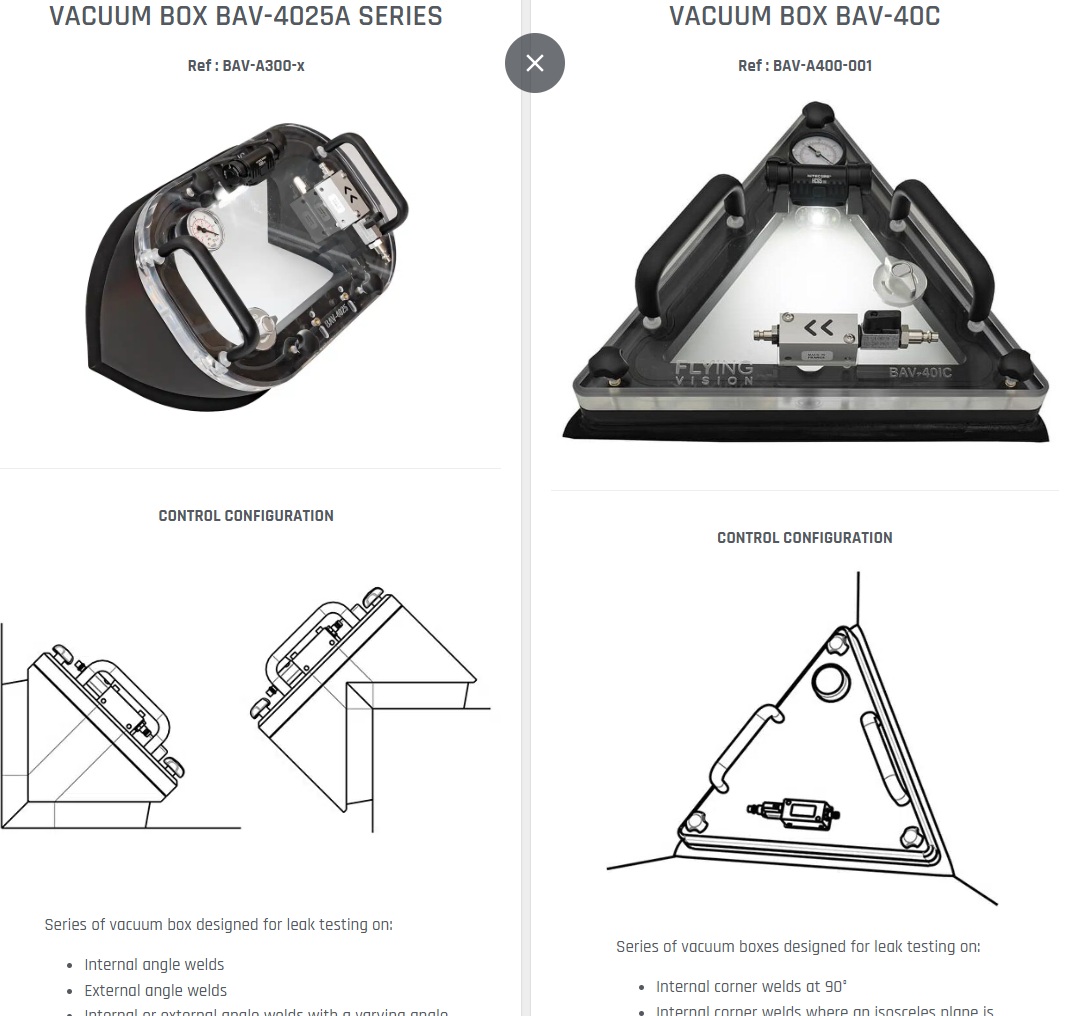

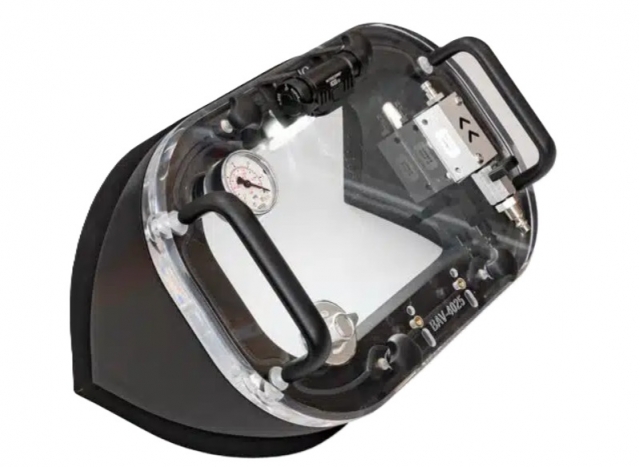

FLYING VISION BAV-4025A VACUUM BOX FOR LEAK TESTING ON INTERNAL OR EXTERNAL FILLET CORNER WELDS ON STORAGE TANKS

• The BAV-4025A is a modular vacuum box (400 × 250 mm)
• engineered for leak testing of fillet welds and corner joints, both internal and external.
• Available with multiple gasket bases and dedicated angle profiles,
• it offers precise adaptation to complex geometries.

FLYING VISION BAV-7025 VACUUM BOX FOR WELD BUBBLE LEAK TESTING OF TANK, PIPELINE, SHIP

• High-Performance Vacuum Box for Precise Leak Testing – BAV-7025
• The BAV7025 series features a 700 x 250 mm inspection area and is designed for fast, efficient vacuum box testing of long weld seams.
• Available with 35 mm or 45 mm foam
• Vacuum box designed for leak testing on:
• Flat welds
• Lap joints, lap welds
• Internal or external circular welds depending on the curvature radius

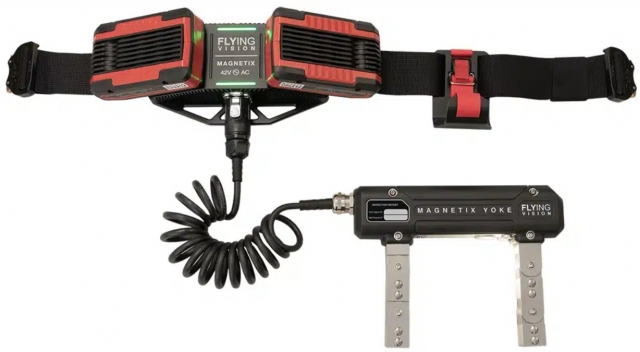

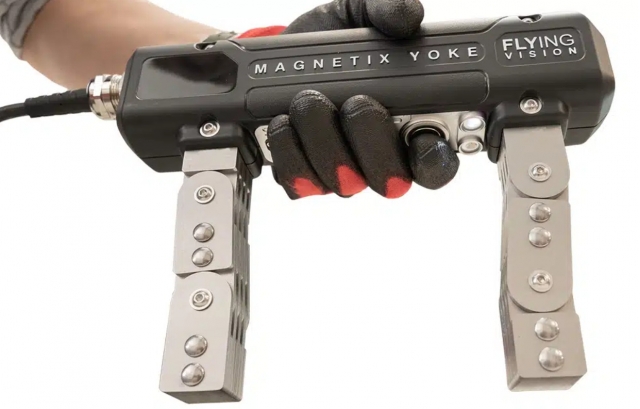

MAGNETIX MGN4 MAGNETIC YOKE FOR DETECTING SURFACE FLAWS IN FERROMAGNETIC ELEMENTS WELDS

• Greater freedom of movement
• No mains power cord constraints
• Easier access in restricted areas
• Improved portability for field work
• Reliable performance in harsh environments
• A practical solution for demanding on-site MPI inspections

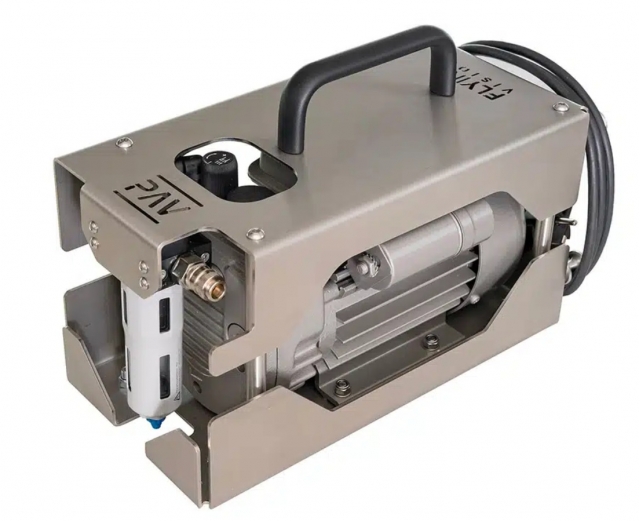

PAV-B8 VACUUM PUMP FOR LEAK VACUUM BOX ESTING
