Code: Fluke 700G 700G01 700G0 700G04 700G05 700G06 700G27 700G06 700G07 700G08 700G10 700G29 700G30 700G31 700GA4 700GA5 700GA6 700GA27 700RG05 700RG06 700R

Datasheet

PDF, 0.29 Mb

Description

Pressure Gauges Designed to Handle All Your Pressure Calibration Needs

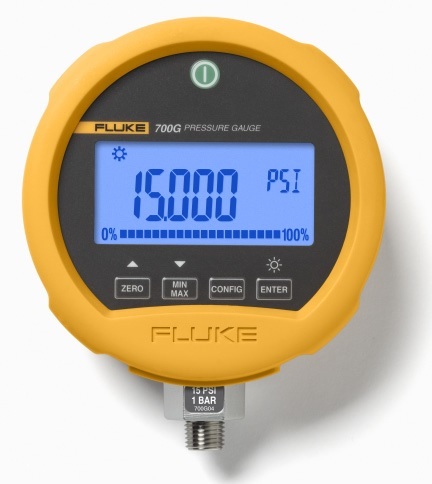

Fluke 700G Precision Pressure Test Gauge

Portable, high-quality round pressure gauge calibrator for fast and accurate calibration test results

With best-in-class accuracy and measurements, the Fluke 700G series precision pressure test gauges were designed to handle all of your pressure calibration needs. The 700G series pressure test gauges are rugged and easy to use, with twenty three models ranging from ±10 inH2O/20 mbar to 10,000 psi/690 bar including absolute pressure ranges. When combined with the Fluke 700PTPK or 700HTPK you’ve got a complete pressure testing solution for up to 600 psi (40 bar) with the PTP-1 pneumatic pump and up to 10,000 psi (690 bar) with the HTP-2 hydraulic pump.

700G Series Precision Pressure Gauge Calibrator

Precision pressure measurement from ±10 inH2O/20 mbar to 10,000 psi/690 bar
Absolute pressure measurement ranges 15, 30, 100, 300 psia
Accuracy to 0.05 % of full scale
Reference class gauge accuracies to 0.04 % of reading
Easy to use, rugged construction for reliable performance
CSA; Class 1, Div 2, Groups A-D rating
ATEX rating: II 3 G Ex nA IIB T6
Combine with the 700PTPK or 700HTPK pump kits for a complete pressure testing solution for up to 600 psi (40 bar) with the PTP-1 pneumatic pump and up to 10,000 psi (690 bar) with the HTP-2 hydraulic pump
Log up to 8,493 pressure measurements to memory (requires 700G/TRACK software)
Three-year warranty

Fluke-700PTPK Pneumatic Test Pump Kit

Combine with any Fluke-700G Series Gauge, 1,000 psi (69 bar) or less, to make a complete pressure testing kit
Generate pressure up to 600 psi, 40 bar with the 700PTP-1 test pump
Connect the 700G Series gauge directly to the included PTP-1 hand pump
Includes hoses and adapters for connecting to the pressure device to be tested
Hard case protects pump and gauge and allows gauge to remain connected to the pump

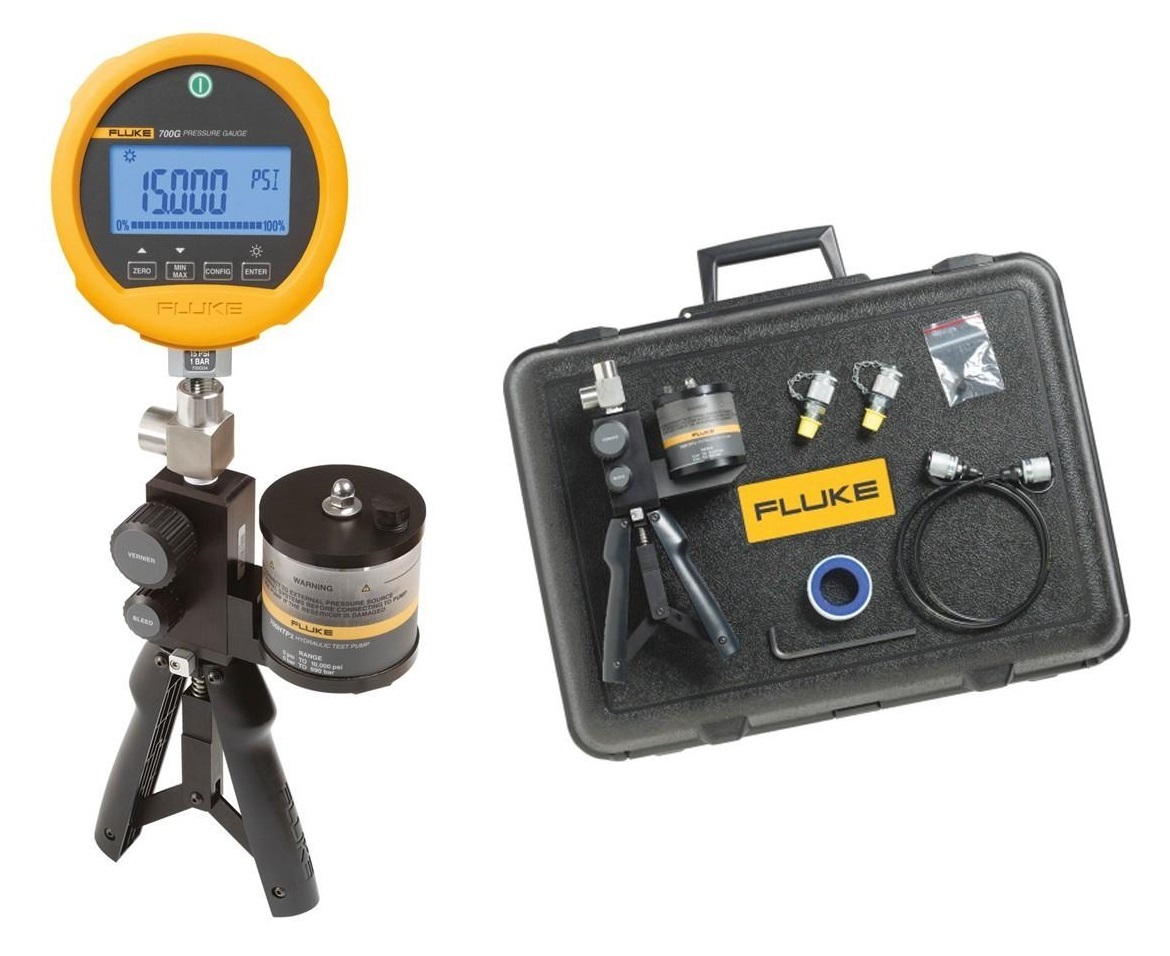

Fluke-700HTPK Hydraulic Test Pump Kit

Combine with any Fluke-700G Series Gauge, 1,000 psi (69 bar) range or greater, to make a complete pressure testing kit
Generate pressure up to 10,000 psi, 690 bar with the included 700HTP-2 test pump

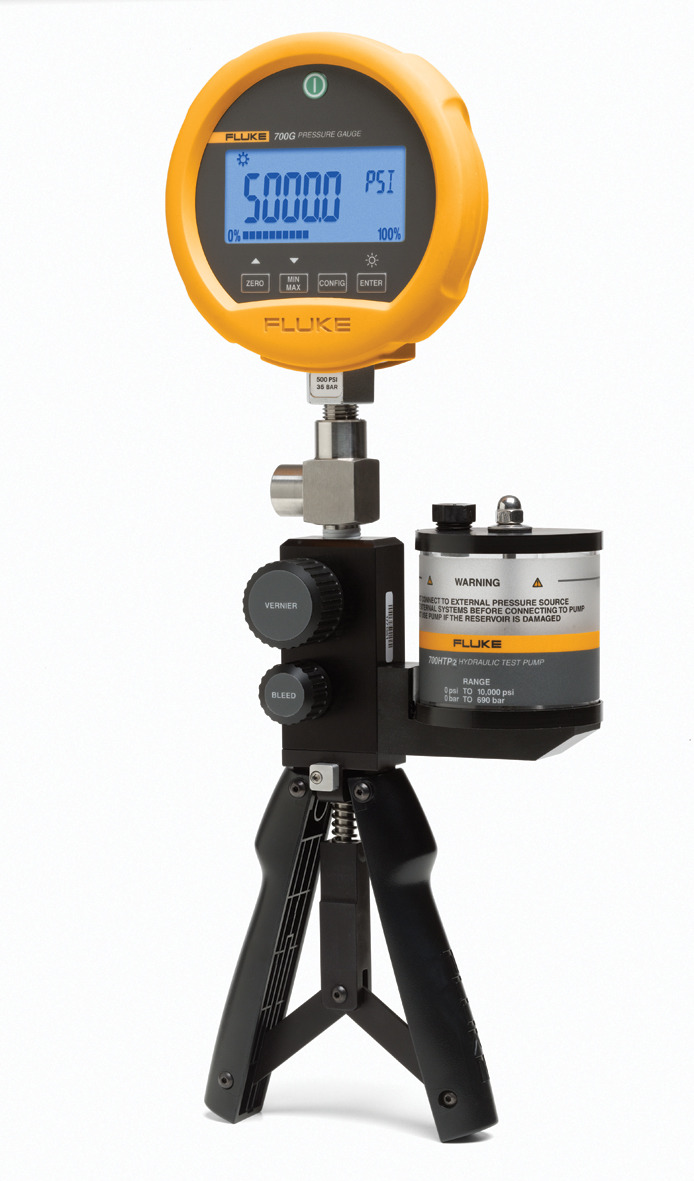

Connect the 700G Series gauge directly to the HTP-2 hand pump
Includes 700HTH-1 hose kit and adapters for connecting to the pressure device to be tested
Hard case protects pump and gauge and allows gauge to remain connected to the pump

700G/TRACK Logging Software

Use with 700G Series gauges to perform real time data logging to a PC
Download logging configurations to the 700G Series gauges for a remote logging event
Configure logging event reading rate, duration and measurement units
Upload measurements logged remotely and display or export measurements
Includes communication cable for connection to a PC

Standard accessories

Included accessories (Gauges)

Manual on CD-ROM in 14 languages

Traceable certificate of calibration

1/4? NPT to 1/4? ISO adapter

Fluke-700G01 Pressure Gauge, �+-10 inH2O -20 mbar to 20 mbar

Fluke-700G02 Pressure Gauge, �+-30 inH2O -70 mbar to 70 mbar

Fluke-700G04 Pressure Gauge, �+-15 PSIG -.97 bar to 1 bar

Fluke-700G05 Pressure Gauge, 30 PSIG -.97 bar to 2 bar

Fluke-700G06 Pressure Gauge, 100 PSIG -.83 bar to 6.9 bar

Fluke-700G27 Pressure Gauge, 300 PSIG -.83 bar to 20 bar

Fluke-700G07 Pressure Gauge, 500 PSIG -.83 bar to 34 bar

Fluke-700G08 Pressure Gauge, 1000 PSIG -.97 bar to 69 bar

Fluke-700G10 Pressure Gauge, 2000 PSIG -.97 bar to 140 bar

Fluke-700G29 Pressure Gauge, 3000 PSIG -.97 bar to 200 bar

Fluke-700G30 Pressure Gauge, 5000 PSIG -.97 bar to 340 bar

Fluke-700G31 Pressure Gauge, 10000 PSIG -.97 bar to 690 bar

Fluke-700GA4 Pressure Gauge, 15 PSIA 0 to 1 bar absolute

Fluke-700GA5 Pressure Gauge, 30 PSIA 0 to 2 bar absolute

Fluke-700GA6 Pressure Gauge, 100 PSIA 0 to 6.9 bar absolute

Fluke-700GA27 Pressure Gauge, 300 PSIA 0 to 20 bar absolute

Fluke-700RG05 Pressure Gauge, Reference, 30 PSIG -0.97 to +2 bar

Fluke-700RG06 Pressure Gauge, Reference, 100 PSIG -0.83 to 6.9 bar

Fluke-700RG07 Pressure Gauge, Reference, 500 PSIG -0.83 to 34 bar

Fluke-700RG08 Pressure Gauge, Reference, 1000 PSIG -0.97 to 69 bar

Fluke-700RG29 Pressure Gauge, Reference, 3000 PSIG -0.97 to 200 bar

Fluke-700RG30 Pressure Gauge, Reference, 5000 PSIG -0.97 to 340 bar

Fluke-700RG31 Pressure Gauge, Reference, 10000 PSIG -0.97 to 690 bar

700G/TRACK Data logging software and cable

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR

Media compatibility

• 10 inH2O, 1, 15, 30 psi: any clean dry non-corrosive gas

• 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic,

non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.

Recommended options

700G/TRACK Data logging software and cable

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR
