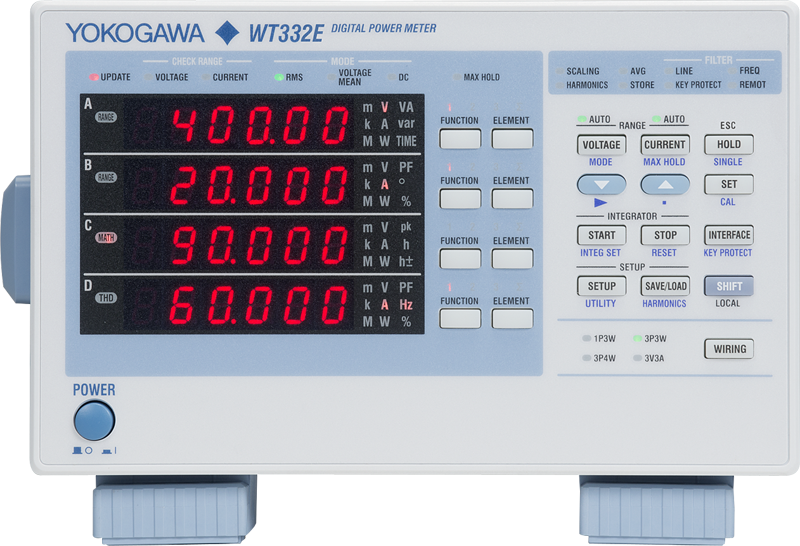

YOKOGAWA - WT300E Powermetru digital

Cod: YOKOGAWA - WT300E Digital Power Meter




Brosura produs PDF, 4.64 Mb

Descriere

The WT300E series digital power analyzer provides extremely low current measurement capability down to 50 micro-Amps, and a maximum of up to 26 Amps RMS. This instrument is ideal for engineers performing stand-by power measurements, Energy Star®, SPECpower and IEC62301 / EN50564 testing, battery charger and other low-level power measurements.



Accuracy with fast display and update rate:
The WT300E series with the fast display update rate of 100ms, offer’s engineers a short tact time in their testing procedures. The basic accuracy for all input ranges is 0.1% rdg + 0.05% rng (50/60Hz) and DC 0.1% rdg + 0.2% rng.



Simultaneous Measurement:

U/I/P/Freq/Integ(+/-)/Harmonics components/ THD with max. 100ms cycle.

In addition to standard power measurements, the WT300E series measures all DC and AC parameters. Additionally, the WT300E series can measure harmonics and perform integration simultaneously without changing the measurement mode. The accompanying WTViewerFreePlus software can monitor and save the 200 parameters used.



Auto ranging function available in selected ranges.

The auto-range function is used to select or change the ranges automatically, within specified ranges. This results in shorter range changing times, allowing more efficient testing.
