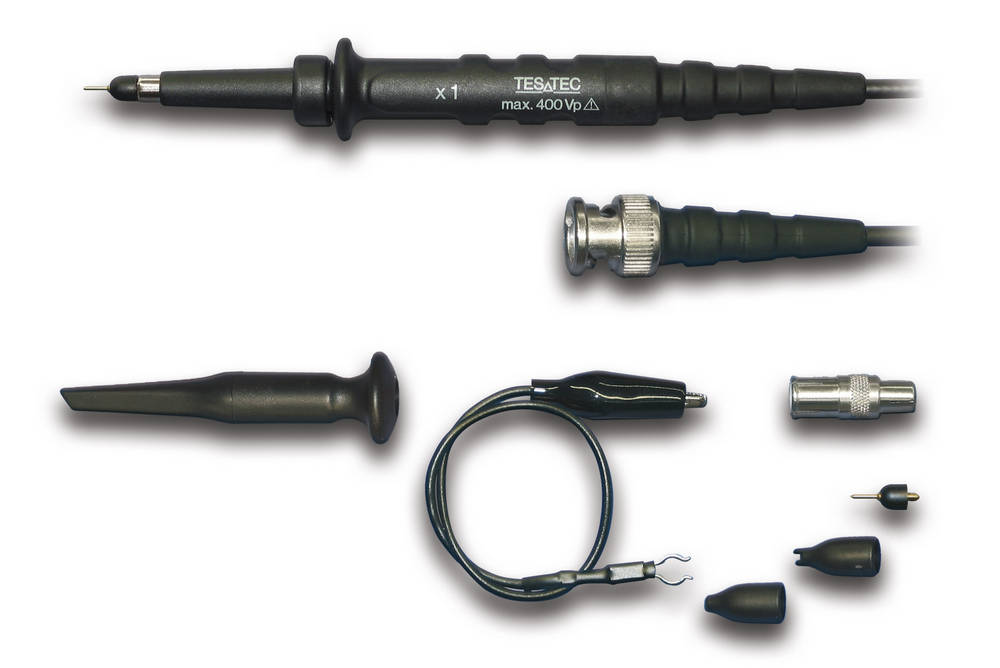

Sonda pasiva osciloscop atenuare 1x Testec TT-LF100

Cod: Testec TT-LF100

Descriere

TT-LF 112 1:1 - 1,2m, 25MHz

Attenuation Ratio: x1

Input Impedance: * Ω, 45 pF

Bandwidth: 25 MHz

Rise Time: 14 ns

Cable Length: 1,2 m

TT-LF 116 1:1 - 1,6m, 22MHz

Attenuation Ratio: x1

Input Impedance: * Ω, 56 pF

Bandwidth: 22 MHz

Rise Time: 16 ns

Cable Length: 1,6 m

TT-LF 120 1:1 - 2,0m, 20MHz

Attenuation Ratio: x1

Input Impedance: * Ω, 67 pF

Bandwidth: 20 MHz

Rise Time: 18 ns

Cable Length: 2,0 m
