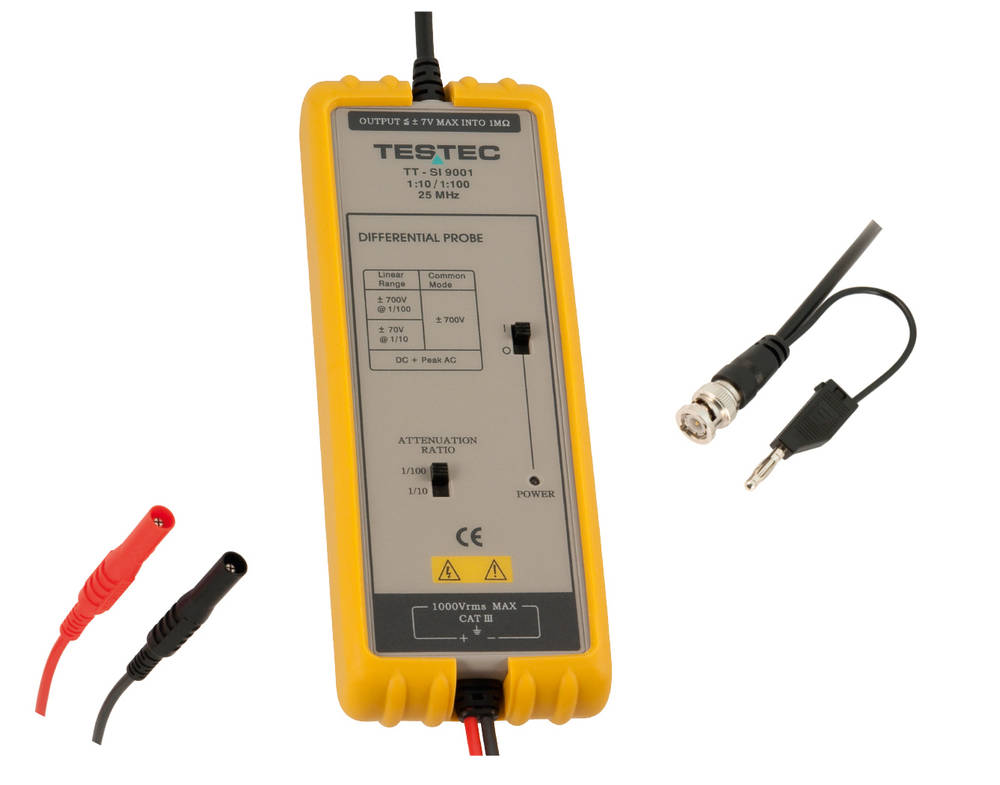

Sonda activa diferentiala osciloscop 25MHz Testec TT-SI

Descriere

TT-SI 9002  1:20 / 1:200, 25MHz

Bandwidth: 25 MHz

Attenuation Ratio: x20 / x200

Accuracy: +/-2%

Rise Time: 14 ns

Input Impedance: 4 Ω, 5,5 pF

Only connect to a grounded oscilloscope!

Input Voltage

Differential Mode

            x20: +-140V (DC + peak AC) or 140Vrms

            x200: +-1400V (DC +peak AC) or 1000Vrms

Common Mode

            x20: +-1400V (DC + peak AC) or 1000Vrms

            x200: +-1400V (DC +peak AC) or 1000Vrms

Absolute max. Voltage

            x20: +-1400V (DC + peak AC) or 1000Vrms CAT III

            x200: +-1400V (DC +peak AC) or 1000Vrms CAT III

Output Voltage

            Swing: +-7V (into 2kΩ load)

            Offset: <+-5mV

            Noise (typical): 0,7mVrms

            Source Impedance (typical): 1Ω @ 1kHz, 8Ω @ 1MHz

            CMRR (typical): -80dB @ 50Hz, -60dB @ 20kHz

Power requirements: 4x AA Cells or Mains Adaptor 6VDC/60mA or regulated 9VDC/40mA

Dimensions (LxWxH): 170 mm x 63 mm x 21 mm

Length: BNC Cable 95 cm - Input Leads 45 cm

Weight: 400 g (Probe and PVC-Jacket)
