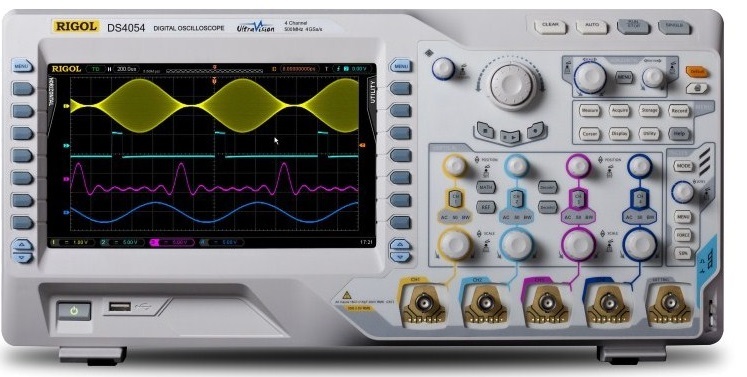

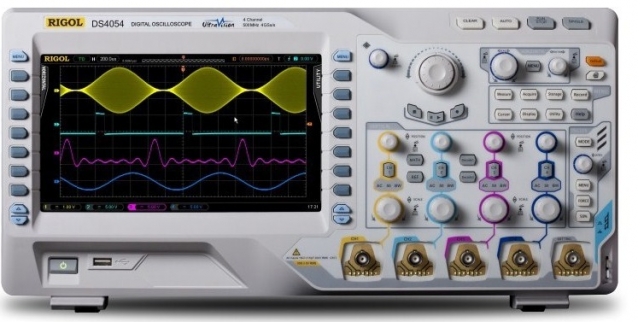

Osciloscop digital Rigol DS4000
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Rigol DS4000 DS4012 DS4014 DS4022 DS4024 DS4032 DS4034 DS4052 DS4054



Brosura produs PDF, 2.67 Mb

Descriere

DS4012 2-Channel, 100MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

DS4014 4-Channel, 100MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

DS4022 2-Channel, 200MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

DS4024 4-Channel, 200MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

DS4032 2-Channel, 350MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

DS4034 4-Channel, 350MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

DS4052 2-Channel, 500MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

DS4054 4-Channel, 500MHz Bandwidth, 4GS/s Sample Rate, 140Mpts





  • Up to 500 MHz bandwidth
  • 4 GSa/s sample rate
  • 2 or 4 Analog channels available
  • 140 million memory points, standard
  • 110,000 Waveforms per second
  • Original Ultravision technology
  • Hardware allows for real-time, continuous waveform recording and waveform analysis





Model

DS4054

DS4052

DS4034

DS4032

DS4024

DS4022

DS4014

DS4012

Channels

4

2

4

2

4

2

4

2

Frequency

500 MHz

350 MHz

 200 MHz

 100 MHz

Real-Time Sample Rate

4 GSa/s

Memory Depth

140 Million Points

Waveform Acquisition Rate

110,000 Waveforms per Second







Accesorii standard

Power Cord conforming to the standard of the country -

Front Panel Cover FPCS-DS4000

USB Data Cable C B - U S B A - U S B B -

FF-150

2 or 4 Passive Probes (500 MHz) RP3500A

1 Set logic analysis probe RPL2316

Quick Guide - Resource CD (User"™s Guide and Application Software) ""



Optiuni recomandate

Optional Accessories

Active Differential Probe (1.5 GHz) RP7150

Rack Mount Kit RM-DS4000



Decoding options

RS232/UART Decoding Kit SD-RS232-DS4000

I2C/SPI Decoding Kit SD-I2C/SPI-DS4000

CAN Decoding Kit SD-CAN-DS4000

FlexRay Decoding Kit SD-FlexRay-DS4000
