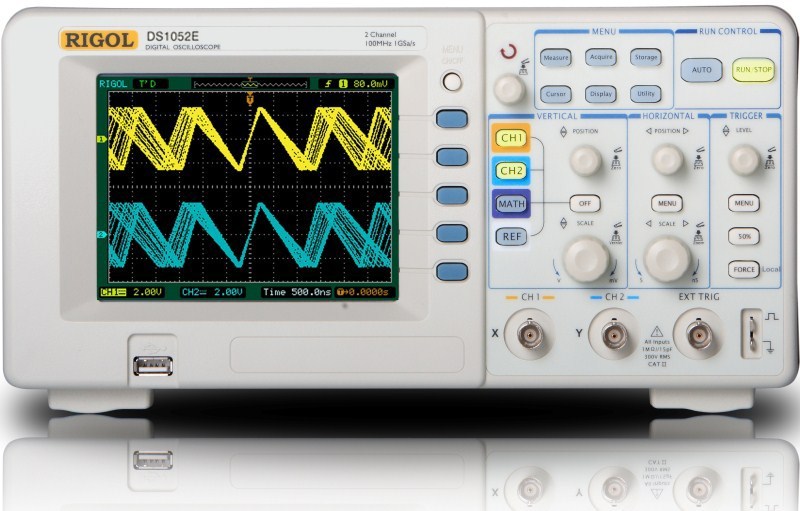

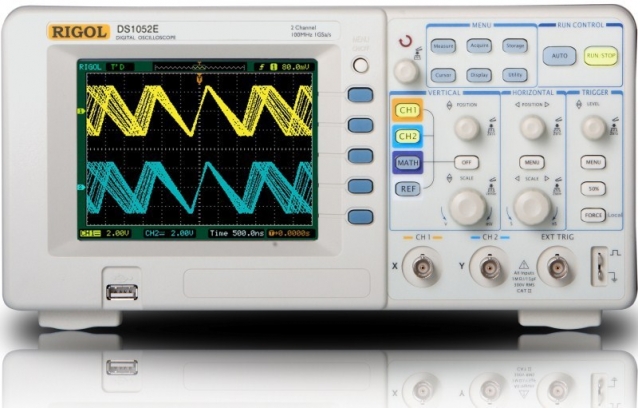

Osciloscop digital Rigol DS1052E
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Rigol DS1000E DS1052E DS1102E




Descriere

DS1052E  2-Channel,  50MHz Bandwidth, 1GS/s Sample Rate,  1Mpts Memory

DS1102E  2-Channel, 100MHz Bandwidth, 1GS/s Sample Rate,  1Mpts Memory

  •
  • 2 Analog channels plus external trigger
  • 1 Million point deep memory
  • 1 GSa/sec max sample rate
  • 5.7" TFT QVGA (320X240) with 64K color LCD backlit display
  • Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate



Model

DS1102E

DS1052E

Bandwidth

100 MHz

50 MHz

Analog Channels

2

Vertical Sensitivity

2 mV/div - 10V/div

Real-time Sample Rate

1 GSa/s¼each channel¼¼500 MSa/s¼dual channels¼

Equivalent Sample Rate

25 GSa/s

10 GSa/s

Memory Depth

Mode

capture rate

common

long memory

one channel

1 GSa/s

16 kpts

N/A

500 MSa/s

16 kpts

1 Mpts

dual channels

500 MSa/s

250 MSa/s
or less

8 kpts

8 kpts

N.A.

512 kpts

Standard Interface

USB Host & Device, RS-232, P/F Out

Vertical Resolution

8 bits

Math

¼, ¼, -, FFT

Max Input Voltage

All inputs 1Ω"-15pF 300 V RMS CATâ

Cursor Measurements

Manual, Track and Auto Measure modes





Accesorii standard

Standard Accessories

 Probe-2 (1.5m), (1:1 or 10:1 adjustable) Passive Probes

 A Power Cord that fits the standard of destination country

 A Data Cable (DS1000D series)

 An Active Logic Head (DS1000D series)

 20 Logic Testing Nips (DS1000D series)

 20 Logic Testing leads (DS1000D series)

 A CD-ROM (including User"™s Guide and Application Software)

 A Quick Guide



Optiuni recomandate

Optional Accessories

 BNC Cable

 USB Data Cable

 RS232 Cable

 USB-GPIB Adapter

 DS1000E, DS1000D soft carrying case
