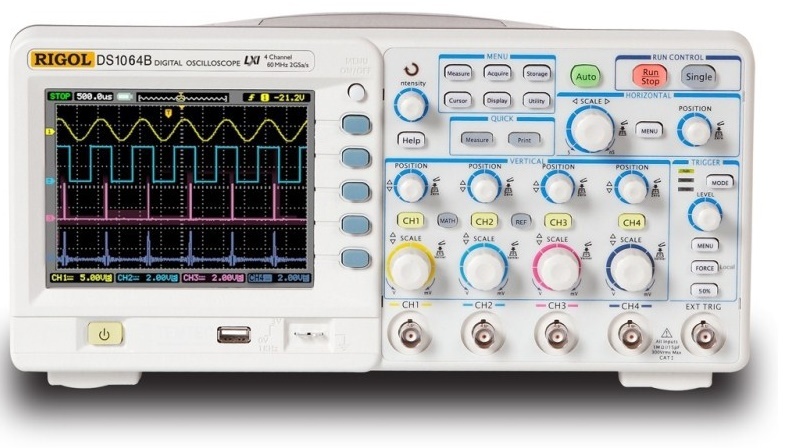

Osciloscop digital 4 canale Rigol DS1000B
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Rigol DS1000B DS1074B DS1104B DS1204B



Brosura produs PDF, 0.25 Mb

Descriere

DS1074B  4-Channel,   70MHz Bandwidth, 2GS/s Sample Rate, 16Kpts Memory

DS1104B  4-Channel,  100MHz Bandwidth, 2GS/s Sample Rate, 16Kpts Memory

DS1204B  4-Channel,  200MHz Bandwidth, 2GS/s Sample Rate, 16Kpts Memory



  • 4 Analog channels plus external trigger
  • 2 GSa/sec max sample rate
  • 5.7" TFT QVGA (320-240) with 64K color LED backlight display with power save mode
  • Advanced trigger modes including Edge, Video, Pulse Width, Alternate and Pattern trigger





Model

DS1204B

DS1104B

DS1064B

Bandwidth

200 MHz

100 MHz

60 MHz

Memory Depth

16 kpts¼half channel¼, 8 kpts¼each channel¼

Channels

4 channels ¼ external trigger

Real-time Sample Rate

2 GSa/s¼half channel¼, 1 GSa/s¼each channel¼

Equivalent-time Sample Rate

50 GSa/s

25 GSa/s

10 GSa/s

Rise Time

1.8 ns

3.5 ns

5.8 ns

Input Impedance

1 Ω||18 pF

Timebase Range

1 ns/div ~ 50 s/div

2 ns/div ~ 50 s/div

5 ns/div ~ 50 s/div

Trigger modes

Edge, Video, Pulse Width, Alternate, pattern trigger across 4 analog channels

Vertical Sensitivity

2 mV/div ~ 10 V/div

Vertical Resolution

8 bits

Maximum Input Voltage

All Inputs 1Ω||18pF 300Vrms Max CAT I

Cursor Measurement

Manual, Track and Auto Measure modes.

Automatic Measurements

Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Time Delay Aâ’B, Time Delay Aâ’B, Phase Delay Aâ’B,- Phase Delay Aâ’B

Math

¼, ¼, -, FFT

Internal Storage

10 waveforms, 10 setups

USB Storage

8 bits BMP, 24 bits BMP, PNG,CSV,Waveforms and Setups against USB flash drive"™s limit

Connectivity

USB Device, dual USB Host, LXI-C compliant LAN

Display

5.7" TFT QVGA(320-240) with 64K color LED backlight display

Power Supply

AC:100-127V,45Hz-440Hz;100-240V,45Hz-65Hz. 60VA Max





Accesorii standard

Four Passive Probes:

RP2200 (1X or 10X, adjustable) for DS1074B/DS1104B

RP3300A (10X) for DS1204B

 A Power Cord that fits the standard of

destination country

 An USB Cable

 A CD-ROM (including User"™s Guide an

application software)

 A Quick Guide



Optiuni recomandate

BNC Cable

 RS232 Cable

 DS1000B special convenient soft bag
