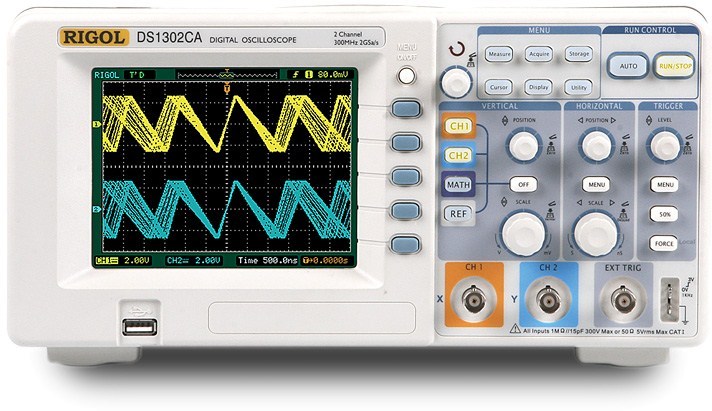

Osciloscop digital 2 canale Rigol DS1102CA
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Rigol DS1000CA DS1062CA DS1102CA DS1202CA DS1302CA



Brosura produs PDF, 0.34 Mb

Descriere

DS1062CA  2-Channel,   60MHz Bandwidth, 2GS/s Sample Rate,  10Kpts Memory

DS1102CA  2-Channel,  100MHz Bandwidth, 2GS/s Sample Rate,  10Kpts Memory

DS1202CA  2-Channel,  200MHz Bandwidth, 2GS/s Sample Rate,  10Kpts Memory

DS1302CA  2-Channel,  300MHz Bandwidth, 2GS/s Sample Rate,  10Kpts Memory



  • 2 Analog channels plus external trigger
  • Up to 300MHz bandwidth
  • 2GSa/s real-time sample rate and 50GSa/s equivalent-time sample rate.
  • Up to 2000wfms/s waveform update rate
  • 5.7" TFT QVGA (320X240) with 64K color LCD backlit display
  • Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate





Model

DS1302CA

DS1202CA

DS1102CA

DS1062CA

Bandwidth

300 MHz

200 MHz

100 MHz

60 MHz

Analog Channels

2

Vertical Sensitivity

1 mV/div ~ 10V/div

Real-time Sample Rate

2 GSa/s¼each channel¼¼1 GSa/s¼dual channels¼

Equivalent Sample Rate

50 GSa/s

25 GSa/s

10 GSa/s

10 GSa/s

Standard Interface

USB Host & Device, RS-232, P/F Out

Vertical Resolution

8 bits

Math

¼, ¼, -, FFT

Max Input Voltage

All inputs 1Ω"-15pF 300 V RMS CATâ

Cursor Measurements

Manual, Track and Auto Measure modes
