Brand: Dadi

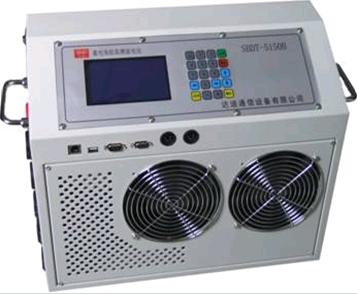

Tester incarcare-descarcar-monitorizare baterii Dadi SBDT-5100A

Cod: Dadi SBDT-5100A




Brosura produs PDF, 0.99 Mb


Descriere

  • Storage battery measurements
  • Total battery voltage

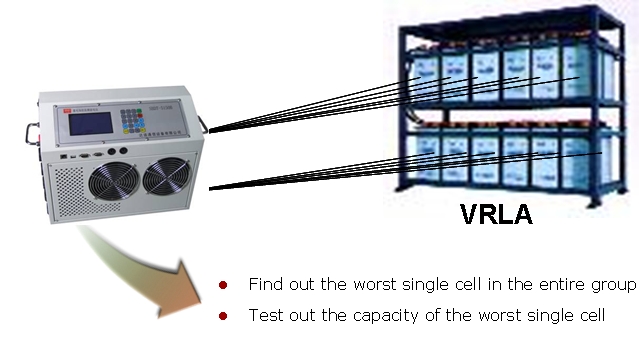

  • Individual cell voltage
  • Discharge current
  • Remaining capacity estimate
  • Constant current discharge
  • Continuously adjustable during 1-300A, maximum for 3000AH battery maintenance testing
  • Automatically alarm/shut-down
  • Total battery voltage low limit
  • Individual cell voltage low limit
  • Set discharge time limit
  • Set discharge capacity limit
  • Computer management platform
  • Record: Recording battery voltage and current during discharge
  • Various graphic displays: record chart, characteristics comparison figure, total battery volt curve, the individual cell volt curve and capacity histogram
  • Perfect test report printing
  • Complete discharge: support long time deep discharge and get battery capacity accurately
  • USB interface: for test results storage
  • Ethernet or RS232 serial interface: data exchange with management platform based on PC
  • Automatically generate data report & print test reports
  • Remote control via Ethernet
  • Wireless Data collection method
