Battery internal resistance test: an important parameter to judge battery. According to the value of resistance, we can judge the battery’s advantage and disadvantage; precise measurement of the external conductor resistance;
Battery voltage test: determine over-discharge or overcharge;
Battery capacity test: test battery capacity through two kinds of model: with and without temperature detection. Test capacity of the battery at present state accurately and quickly.
Battery capacity types selection test: According to customers’ needs, you can choose AH for battery capacity or CCA for battery capacity;
Battery life test: contrast battery’s own capacity with capacity at present state to get a percentage through a function, the percentage is battery life;
Battery starting capability test: determine the starting capability when the car starts;
Battery charge system test: check if the battery charge is normal;
Battery charge ripple test: check if charging ripple is too large;
Varieties Of operation modes: hand-held operation or external power supply operation;
Varieties of network interfaces: USB port and TCP / IP port
Back-office system software can automatically discover devices through the network and establish connections and automatically collect data to develop reports in accordance with set-up time;
RS232/485 interface, we can link with internet or download data via RS232/485 interface and receive remote commands;
Test various types of batteries: test various kinds of batteries such as 6V, 12V;
Download data model under multi-monitoring: support local on-line monitoring and download data support remote monitoring and download data;
Multiple testing modes: support a single test and auto-timing real-time test;
Large storage capacity: massive FLASH memory (64M bit) can store a large number of test data (more than 3000 items);
Display mode: buttons with touch operation, 3.5-inch LCD backlight with Chinese (or English), resolution of 128 � 64 dot-matrix;
Support domestic and international standards: domestic standard the United States and Japanese standard German standard European standard old European standards;
Built-in Battery: Built-in rechargeable lithium battery without memory effect, work for more than 8 hours without outside power;
Built-in high-precision clock and calendar, test data every time automatically with testing time records;
Use wide temperature chip: it can work normally under -10 ~ +50 ? and meet a variety of tests under adverse and hard conditions;
Strong meter structure is particularly suitable for field work.

Alte produse PITE

Brand: Dadi

TESTER CONEXIUNI XDSL DADI DSL-3011A

• xDSL physical layer test
• xDSL network layer test
• Ethernet test
• Ping test
• cable test
• DMM: loop resistance, insulation resistance, capacitance, AC and DC voltage and line length estimation test
• Tone generator
• TFT true color display, touch screen operation

Brand: Dadi

TESTER MULTIFUNCTIONAL TESTARE ACCES RETELE XDSL, EPON, WLAN, ETHERNET DADI MTS-3530A

• XDSL Physical Layer Test
• xDSL Network Layer Test
• xDSL Application Layer Test
• Cable Test
• EPON Test
• WLAN Test
• Ethernet Test
• Network Cable Test

Brand: Dadi

ANALIZOR TRANSMISIUNI RETELE DE DATE PENTRU SERVICE SI MONITORIZARE DADI BER-1530

• G.703 E1 In-service / Out of Service Test
• Various alarm and error insert
• Balance interface (75 Ohm) / unbalanced interface (120 Ohm) for E1
• ITU-T G.821/G.826/M2100 BER analysis
• Pattern slips analysis
• Clock slips analysis
• Color touch screen TFT LCD.

Brand: Dadi

TESTER MONITORIZARE STANDARD G.703 E1 LAN DADI IAT-1710A

• G.703 E1 circuit FAS, CRS code monitoring
• E1 on-line monitoring
• slip code test
• V series interface test
• V.24/RS232, V.35 interface error test
• ITU error indicator analysis
• RFC2544 test
• color HD touch screen

Brand: Dadi

TESTER CABLU GIGABIT RETEA LAN 10/100/1000 MBIT DADI CNT-8050

• Data loopback
• Flashing port
• Traffic generation: gigabit wire-speed traffic generation capability
• Traffic statistics
• SFP optical interface, up to 1000Mbps

Brand: Dadi

ANALIZOR BER TRANSMISIUNI DATE RETELE PDH DADI BER-1580

• G.703 E in-service / out of service Test
• Dual E ports monitoring
• Various alarming types and BER types insert
• ITU-T G.82/G.826/M200/20 BER Analysis
• Histogram display
• Color TFT LCD with touch screen
• 2M clock jitter Rx/Tx test

Brand: Dadi

TESTER RETEA ADSL DADI DA-280

• ADSL Physical Layer Test
• Fast and Interleave signal channel BER test
• Test downstream, upstream rate and channel availability of the line
• ES statistics
• ADSL Network Layer Test
• Ethernet Test
• LAN Ping test
• Cable Test
• DMM: including loop resistance, insulation resistance, capacitance, DC & AC voltage and line length estimation test

Brand: Dadi

ANALIZOR CANALE AUDIO PCM DADI DDA260

• complete full test of speech channel indicators
• 2M interface supported: Multi PCM system including PCM30 PCM31 PCM30CRC PCM31CRC
• Support G.821 E1 error test
• Support manual test, auto loop test, auto end-to-end test, optional circuit auto test
• Support pairs of reference test signal, 1020Hz or 820Hz optional, meet diversified need of clients.

Brand: Dadi

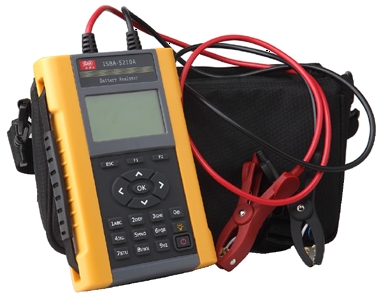

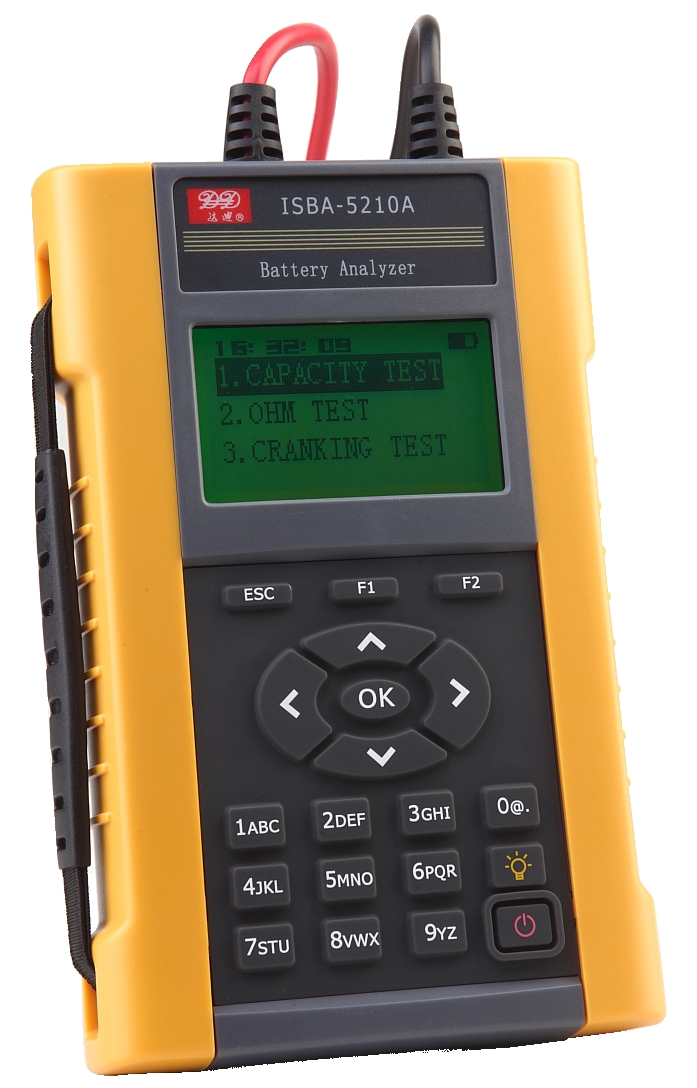

TESTER PORTABIL REZISTENTA INTERNA-CAPACITATE BATERII 6V/12V DADI ISBA-5210A

• Battery internal resistance test
• Battery voltage test
• Battery capacity test
• Battery life test
• Battery starting capability test
• Battery charge system test
• Battery charge ripple test
• Varieties of network interfaces: USB port and TCP / IP port

Brand: Dadi

ANALIZOR RETELE VDSL, VDSL2, ADSL, ADSL2, ADSL2+ DADI DSL-3020V

• XDSL Physical Layer Testing
• ADSL2+Modular: full support all ADSL standards
• Test upstream, downstream, maximum speed and channel utilization
• Display every sub-channel of Bits per Tone
• xDSL Network Layer Test
• PPPoE dial-up obtain IP address and Ping test
• Router tracking test
• Ethernet Test
• DHCP client test
