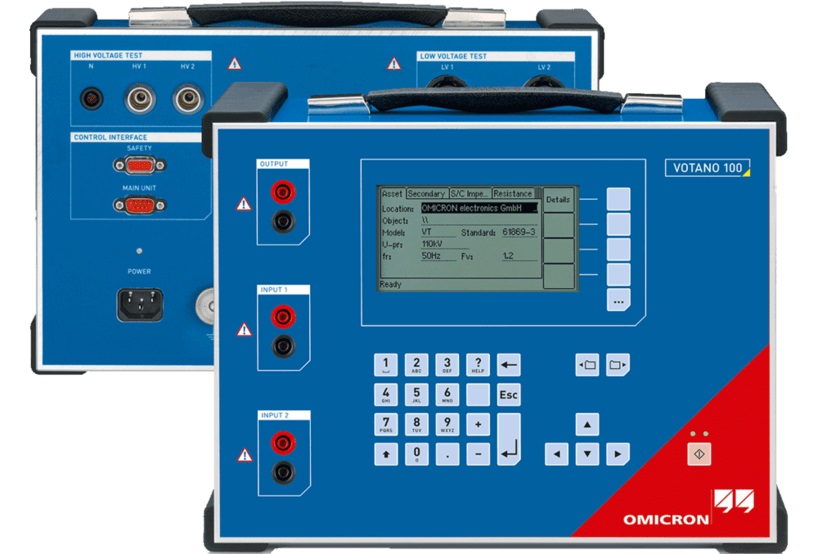

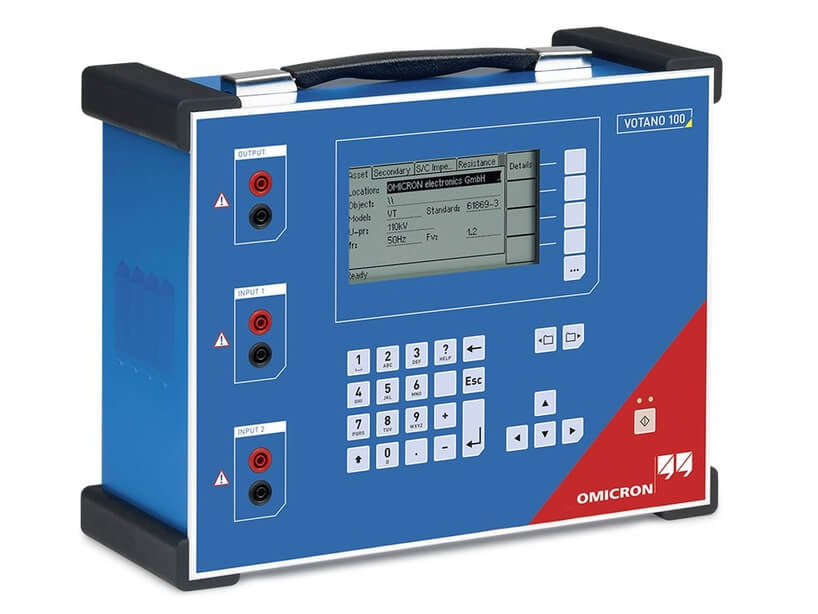

Omicron VOTANO 100 Accurate and mobile voltage transformer testing and calibration system

Cod: Omicron VOTANO 100



Brosura produs PDF, 4.33 Mb


Descriere

Due to automated measurements, VOTANO 100 can test all of the important parameters of voltage transformers quickly. It is the first portable test system to also offer high accuracy. The measured results are automatically assessed in accordance with IEEE and IEC standards.

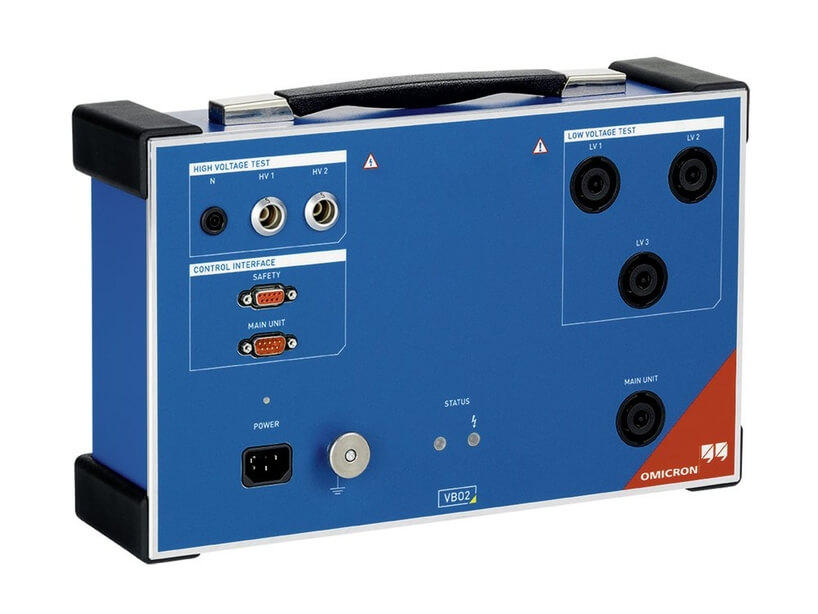

VOTANO 100½s light-weight design makes it ideal for on-site tests and calibration tasks in power system grids, production facilities, and test/development labs. It is supplied with the separate voltage booster VBO2. This 4 kV amplifier provides the necessary test voltage during the ratio measurement. Its integrated switchbox automatically switches between the necessary test sequences. This facilitates fast and reliable tests as wiring only needs to be done once saving time and preventing failures.

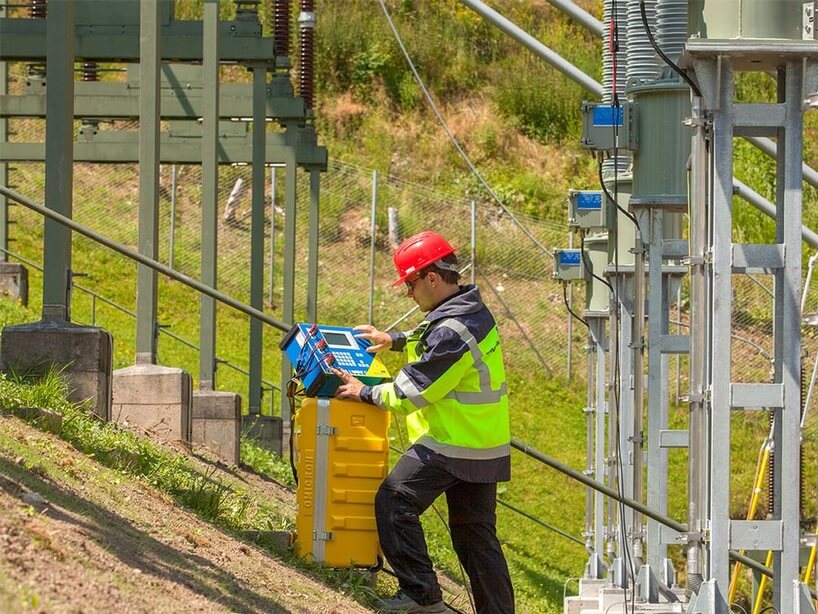

VBO2 is positioned close to the transformer under test while VOTANO 100 is operated in the safe area outside of the high-voltage environment.



Features:

  • Very high accuracy allows field calibration of VTs up to the 0.1 accuracy class
  • Excellent mobility through compact size and low total weight (15 kg / 33 lbs)
  • Automatic result assessment as per IEEE and IEC standards directly after the test
  • Short testing time compared to conventional methods (< 15 min)
  • Burden measurement
