Tester raport transformare, deplasare faza, rezistenta infasurare transformatoare Megger TTR100

Cod: Megger TTR100




Brosura produs PDF, 0.25 Mb

Descriere

• Tests turns ratio, phase displacement, excitation current, vector group, winding resistance and polarity
• Fully automatic; fast; easy-to-use; handheld; robust; lightweight
• Battery powered with power-saving and shutdown function
• Alphanumeric keyboard
• RS232 for data transfer and printing
• Stores 200 test results and 100 user-defined transformer test settings



The latest TTR available from Megger is the TTR100, a handheld, robust, lightweight and battery operated instrument. This TTR will complement several existing Megger transformer test products and will offer functions, such as winding resistance and polarity. These functions, as well as the phase angle measurement function, can be switched off when not required.
With a turn ratio of 20,000:1, the TTR100 offers the highest turns ratio accuracy in the industry of 0.1%. The TTR100 features special software capabilities.

The TTR100 is used to perform final test and calibration of transformers in the manufacturing process, such as a QA or Test Department. Using the new TTR100 in this environment will improve the productivity of such QA testing, as well as efficiently collect and store large amounts of data, which can be uploaded to a PC spreadsheet, or data base program.

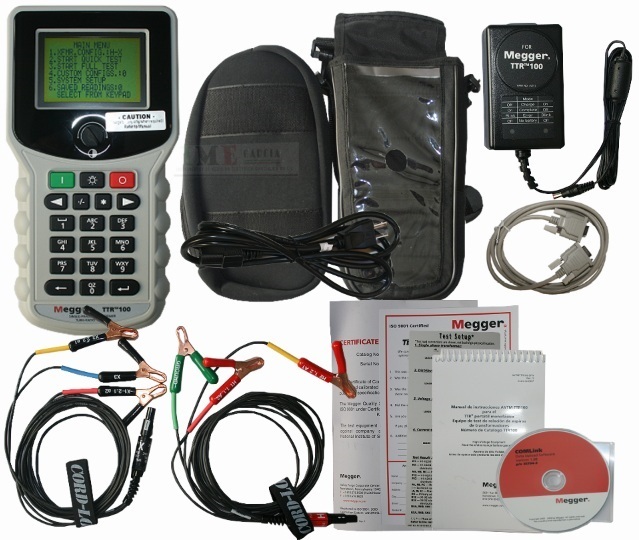

Accesorii standard

Included Accessories

Test Leads

"X" winding, 6 ft (1.8 m) 35502-511

"H" winding, 6 ft (1.8 m) 35502-521

PC interface cable 33147-18

Battery pack 35753

Universal battery charger 35757

Power cable for battery charger Determined by Country

Protective neoprene carrying case and accessory pouch 55-20008

Software for uploading test results to a PC 35794-2

Quickstart guide 55-20013

Instruction manual AVTMTTR100-XXX



Optiuni recomandate

Optional Accessories

Test Leads

"X" winding, 12 ft (3.6 m) 35502-510

"H" winding, 12 ft (3.6 m) 35502-520

"X" winding, 20 ft (6 m) 35502-512

"H" winding, 20 ft (6 m) 35502-519

Semi-hard fabric transport case 35788

Additional battery pack 35753

Inverter cigarette adapter with power cable, 12 V dc to 115 V ac, 60 Hz, non CE marked 35973

Printer package, including battery/line power serial thermal printer with paper,

battery pack, battery charger, printer interface cable, 120 V, 60 Hz 35755-1

Printer package, including battery/line power serial thermal printer with paper,

battery pack, battery charger, printer interface cable, 230 V, 50 Hz 35755-2

Additional printer paper (1 roll) 27705-1
