• Small and weighs less than 33 lbs (15 kg)
• Test currents from 10 A to 600 A dc
• 0.1 µohms best resolution
• On board memory for up to 300 test results and notes
• RS232 port to download stored results or for real time output to a printer
• Supplied complete with 16.4 ft (5 m) test leads and download software

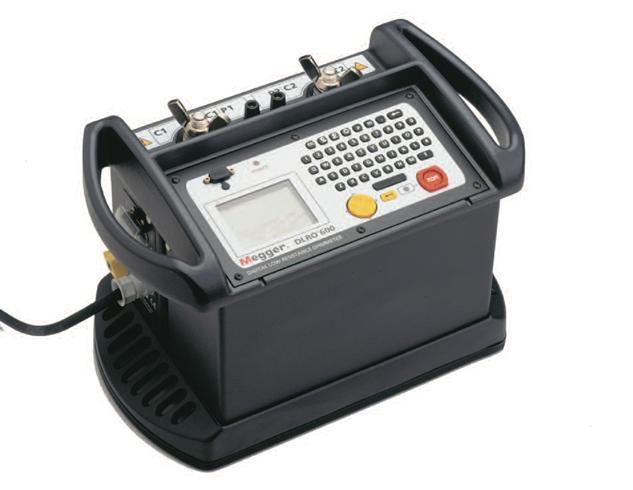

Megger DLRO600 measures resistances between 0.1 µohms and 1 µohms, at high currents.

This versatile instrument can provide test currents from 10 amps up to 600 amps subject to the load resistance and supply voltage. A large liquid crystal display provides all the information needed to perform a test; all test parameters and measurement results are displayed.

The unique design allows the weight and size of DLRO600 to be kept to a minimum; the instrument weighs less than 33 lbs (15kg). This small size makes DLRO600 equally at home in the workshop, on the production floor or in the field. The high current capability and compact design make DLRO600 suitable for testing circuit breaker contacts, switch contacts, busbar joints or other applications where high current is needed.

Accesorii standard

STANDARD VERSIONS WITH TEST LEADS

Item (Qty) Order No.

DLRO600 High Current Digital Low Resistance

Ohmmeter (English QWERTY keyboard) DLRO600-EN

DLRO600 High Current Digital Low Resistance

Ohmmeter (French AZERTY keyboard) DLRO600-FR

Included Accessories

5 m (16.4 ft.) Lead set set comprising 2 x 50 mm2

current leads with clips and 2 potential

leads with clips 6220-755

Download Manager 6111-442

User Guide on CD-ROM 6172-763

RS232 download cable 25955-025

Quick Start Guide (English) 6172-782

Quick Start Guide (French) 6172-783

Warranty card. 6170-618

VERSIONS WITHOUT TEST LEADS

Item (Qty) Order No.

DLRO600 High Current Digital Low Resistance

Ohmmeter (English QWERTY keyboard) DLRO600-EN-NLS

DLRO600 High Current Digital Low Resistance

Ohmmeter (French AZERTY keyboard) DLRO600-FR-NLS

Included Accessories

Download Manager 6111-442

User Guide on CD-ROM 6172-763

RS232 download cable 25955-025

Quick Start Guide (English) 6172-782

Quick Start Guide (French) 6172-783

Warranty card. 6170-618
