Modul PXI matrice RF 3GHz Quad 1 x 4, 75 Ohm Agilent M9151A

• Quad 4-channel multiplexers
• DC to 1.5 GHz, 75 Ohm
• High isolation, low VSWR
• 30V, 0.5A, 10W switching
• 75 Ohm mini SMB connectors



• 2 x 30 MHz sine, square, and pulse bandwidth cover more applications
• 250 MSa/s, 16-bit sampling rate for higher time-resolution arbitrary waveforms
• Dual-channel model with independent or coupled channels



• Control of most popular microwave switches and attenuators
• Expandable with 34945EXT Remote Module
• Distribution boards for ease of wiring
• Switch readback capabilities
• External power option for simultaneous switching



• 1 MHz to 13.6 GHz Frequency range(tunable to 9 kHz)
• 10 Hz to 3 MHz RBW
• 1 Hz to 3 MHz VBW



• 20,000 counts resolution with dual display
• 100 Hz / 120 Hz / 1 kHz / 10 kHz test frequencies
• inductance, capacitance and resistance measurements
• Backlight
• Auto-calculation of Phase Angle
• Dissipation and Quality Factors



• 40 MHz bandwidth
• 2 analog channels
• 200MS/s sample rate
• 6000 count Digital Multimeter
• 11KS Maximum recording length viewable on screen with zoom function



• 64-channel, high-density 2-wire switch multiplexer
• 100Vrms
• 0.5A/1.0A switch/carry current
• 10W max power
• High-speed 500 usec reed relays
• Break-before-make or simultaneous switch closures



• Dual 4 Channel RF Multiplexer
• 2 GHz bandwidth, 75 Ohm
• Cascade together for up to 16:1 multiplexer
• BNC to SMB adapter cables included

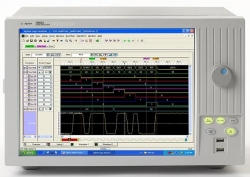

• 34-channel portable logic analyzer
• 4 GHz (250 ps) timing zoom with 64 K memory
• 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
• up to 250 MHz State clock rates
• up to 250 Mb/s Data rates
• up to 32 M acquisition memory depth



• Fast, low-noise, Single outputs
• Linear output regulation
• Dual-range, precision low current measurement
• High-speed programming, 2 ms (400 µs in fast mode)
• GPIB (SCPI) & RS-232
