Brand: Jilong

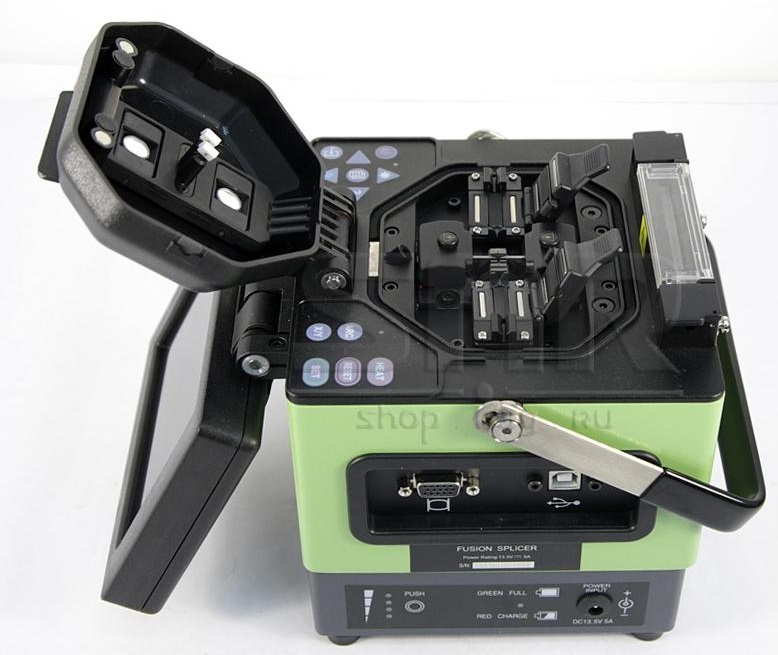

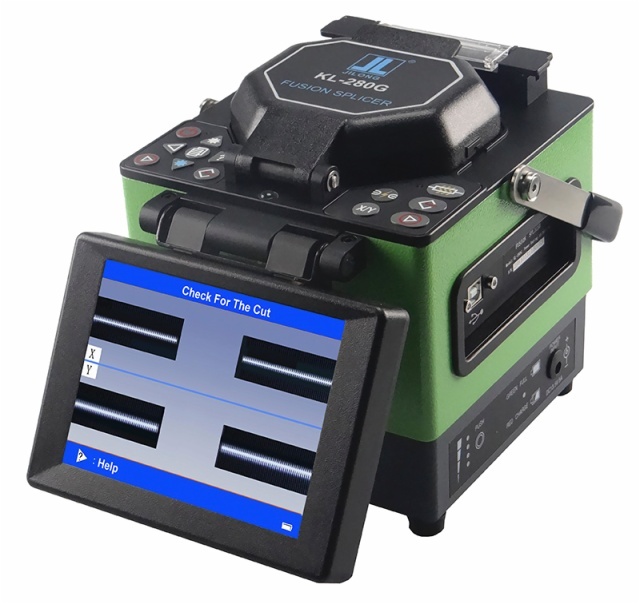

Aparat sudura fibra optica Jilong KL-280G

Cod: Jilong KL-280G



Brosura produs PDF, 1.26 Mb


Descriere

  • Core to core alignment by PAS technology(PAS:Profile Alignment System)
  • Fiber core can be display clearly
  • Single X or Y view and X & Y view simultaneously
  • Auto check quality of cleaved end face
  • Display fiber cleaved and offset angle

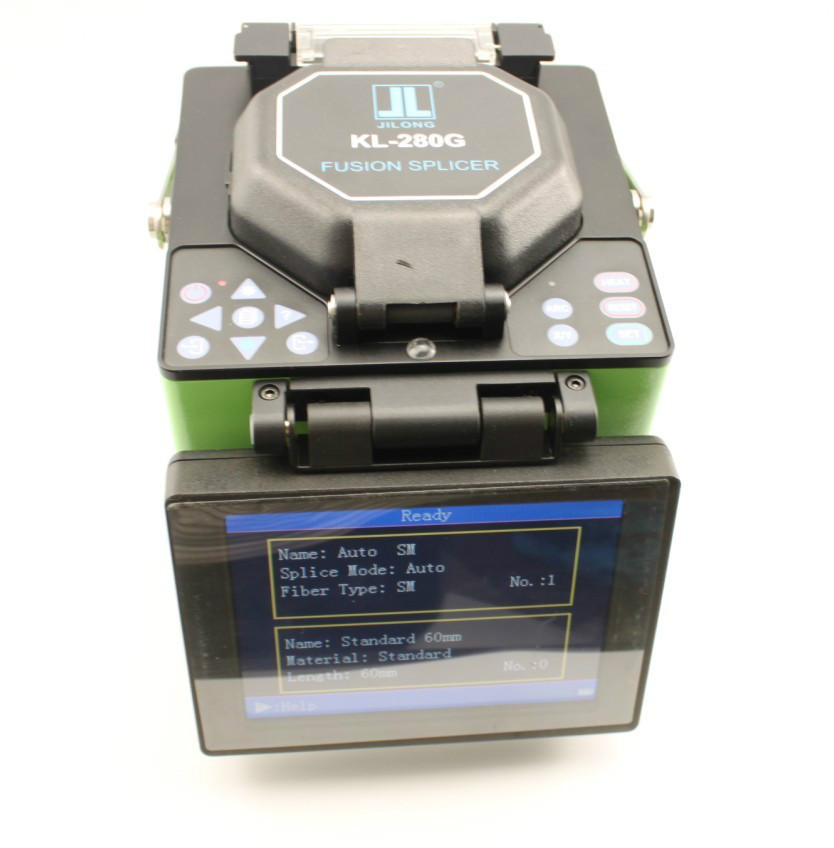

  • 5.6 inch TFT color LCD monitor with clear digital image display

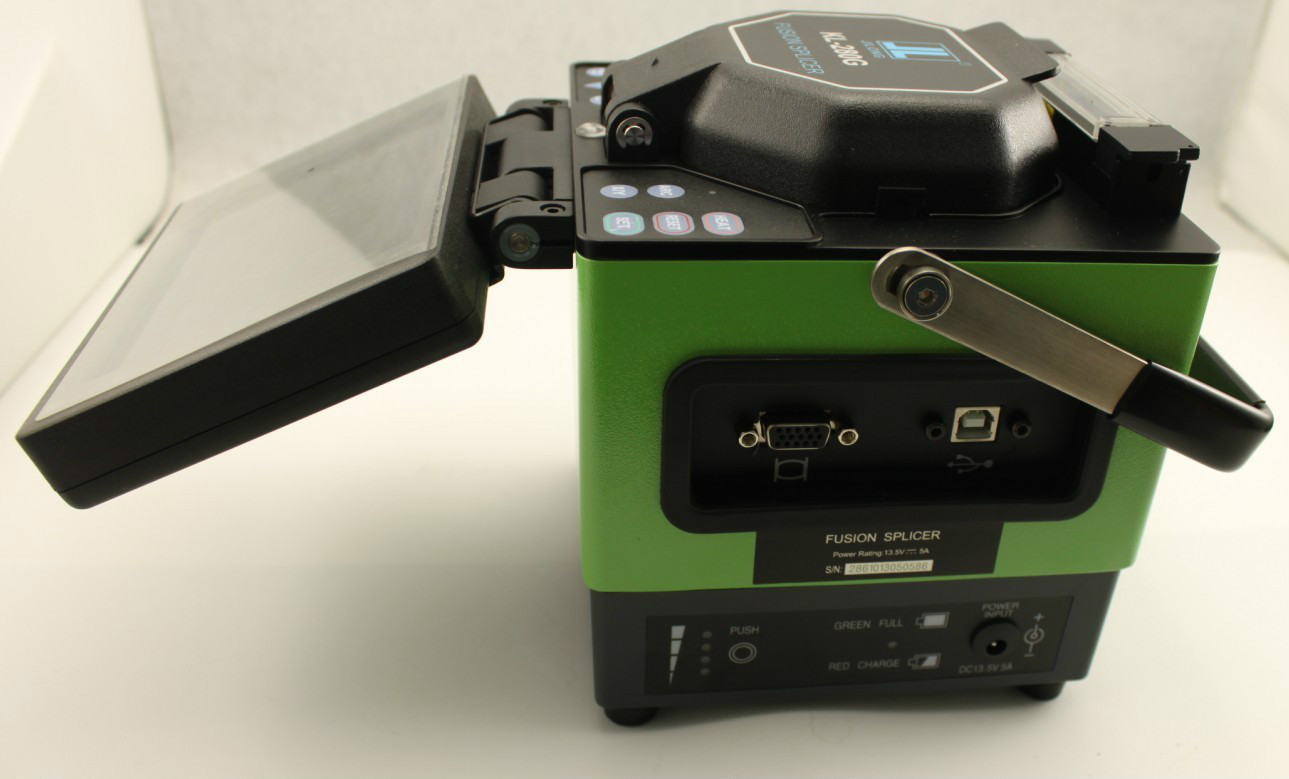

  • USB & VGA interface
  • Software upgrade via USB interface

Specifications

Applicable fibers

SM  MM  DS  NZDS

Fiber diameter

Cladding diameter:80-150µm;

Coating diameter:100-1000µm

Fiber count

Single

Fiber cleaved length

12-16mm (Coating diameter:250µm)

Actual average splice loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Typical splicing time

Typical 9 sec (standard SM fiber)

Return loss

>60dB

Splicing mode

Auto Calibrate Normal Special

Fiber aligning method

Meticulous?Core?Clad?Manual

Splicing program

53 (templet), 40(user)

Tube heating program

9 (templet),24(user)

Tube typical heating time

Typical 30 sec

Protection sleeve length

60mm, 40mm

Storage of splice result

4000 results, 20 parameter per result

Fiber image magnification

300X (X or Y view),150X  (X and Y view)

Battery capacity

Typical 400 cycles (splice/tube heat with inner Li-battery)

Monitor

5.7 inch color LCD monitor

Tension test

2N

Electrode life

2500

Terminal

USB

Power supply

AC 100-240V with AC adapter Inner Li-battery (7800mAH)  DC 13.5V

Operating condition

0-5000m above sea level, -10-50? Max wind velocity of 15m/s

Dimension

150mm(L)×150mm(W)×150mm(H)

Weight

2.55Kg excluding battery,3.05Kg including battery











Comparison of Jilong Fusion Splicers

Function

KL-280G

KL-300T

KL-500

KL-510

Display fiber cleaved angle

-

?

?

?

Display fiber offset angle

-

?

?

?

Display core offset

-

?

?

?

Display clad offset

-

?

?

?

Splicing mode (Auto, Calibrate, Normal , Special)

?

?

?

?

Fiber aligning method (Core, Clad, Manual)

?

?

?

?

Arc strength automatic adjustment

?

?

?

?

Image turn over

-

?

?

?

Fiber angle limit

-

?

?

?

Display inside temperature

-

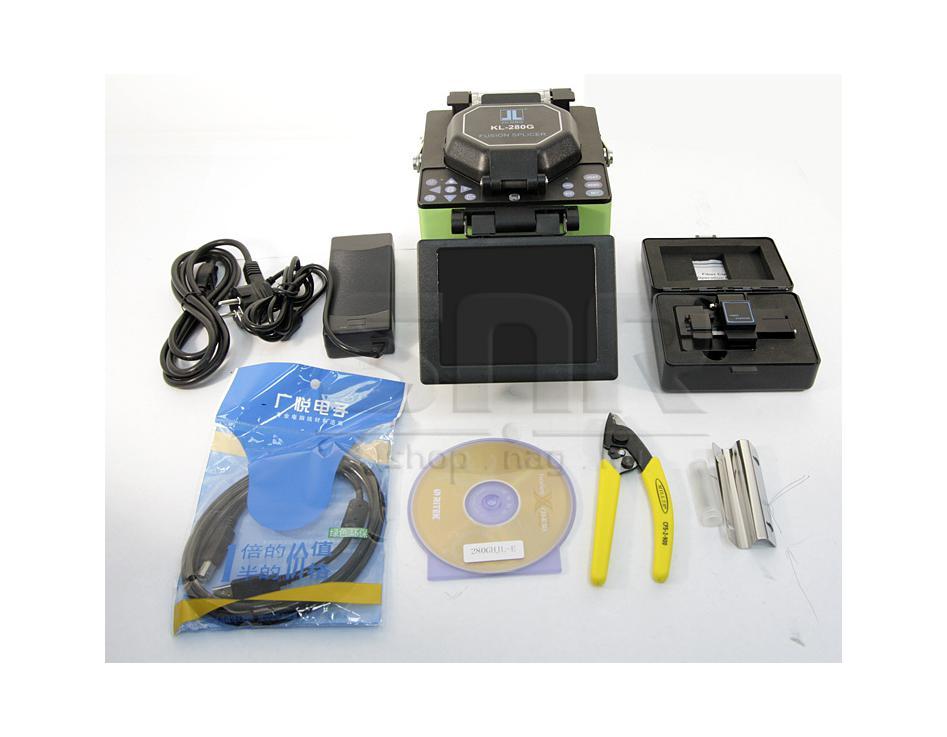

Accesorii standard

  • KL-21C  fiber cleaver
  • CFS-2 fiber stripper
  • inner rechargeable Li battery
  • AC adaptor
  • P.S cord

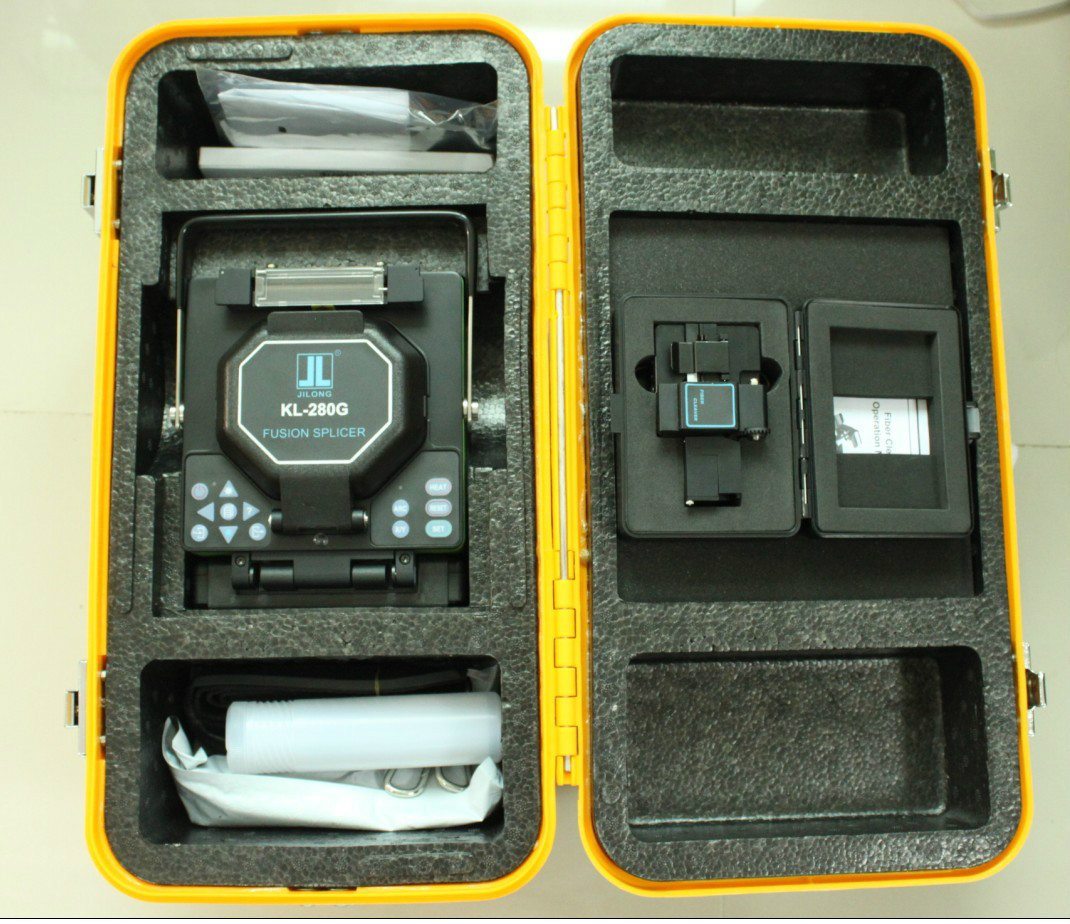

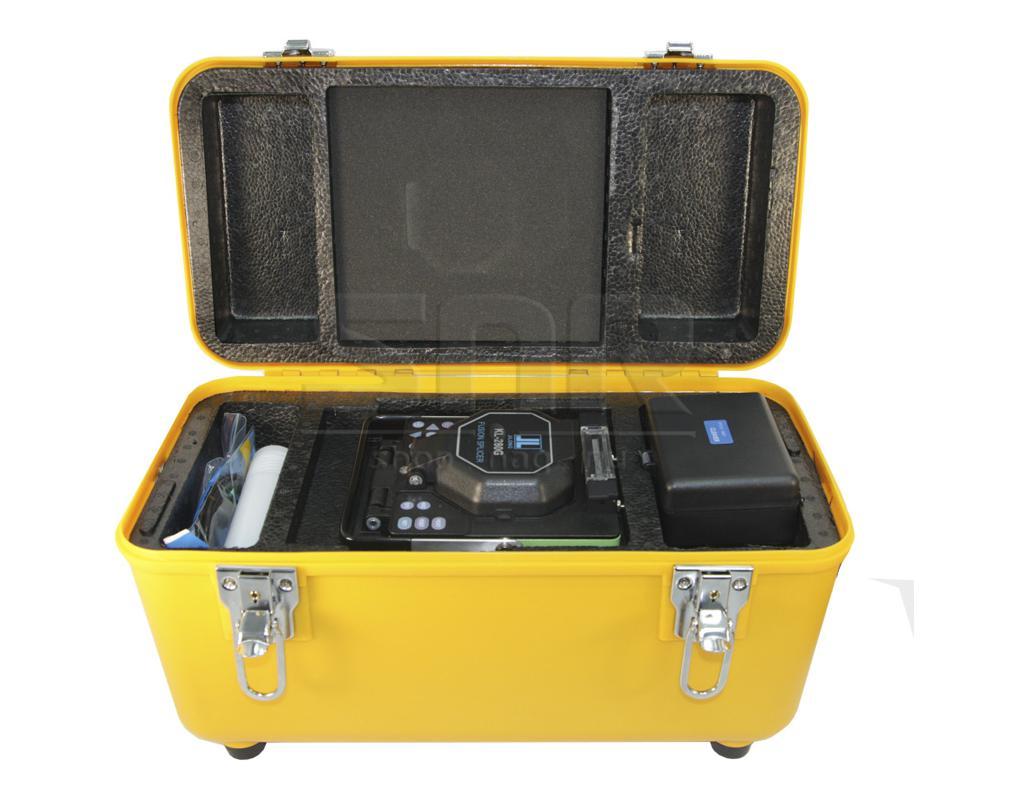

  • carrying case
  • spare electrodes
  • cooling tray
  • cleaning tools
  • operating manual
