Brand: Jilong

Aparat de sudat fibra optica Jilong KL-500

Cod: Jilong KL-500



Brosura produs PDF, 0.36 Mb

Descriere

  • Applicable fibers: SM  MM  DS  NZDS
  • Fiber diameter: Cladding diameter:80-150µm
  • Typical splicing time: Typical 9 sec (standard SM fiber)
  • Fiber aligning method: Meticulous, Core, Clad, Manual
  • Storage of splice results: 4000 results, 20 parameter per result
  • Fiber image magnification:  120X (X or Y view), 60X  (X and Y view)
  • Weight: 1.3Kg including battery

Specifications





Applicable fibers

SM  MM  DS  NZDS

Fiber diameter

Cladding diameter:80-150µm

Fiber count

Single

Fiber cleaved length

12-16mm (Coating diameter:250µm)

Actual average splice loss

0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)

Typical splicing time

Typical 9 sec (standard SM fiber)

Return loss

>60dB

Splicing mode

Auto Calibrate Normal Special

Fiber aligning method

Meticulous?Core?Clad?Manual

Splicing program

53 (templet), 40(user)

Tube heating program

9 (templet),24(user)

Tube typical heating time

Typical 30 sec

Protection sleeve length

60mm, 40mm

Storage of splice result

4000 results, 20 parameter per result

Fiber image magnification

120X (X or Y view),60X  (X and Y view)

Battery capacity

Typical 300 cycles (splice/tube heaty)

Monitor

3.5 inch color LCD monitor

Tension test

2N

Electrode life

2500

Terminal

USB

Power supply

AC 100-240V with AC adapter  DC 13.5V

Inner Li-battery (5200mAh)

Operating condition

0-5000m above sea level, -10-50°

Max wind velocity of 15m/s

Dimension

125mm(L)×105mm(W)×113mm(H)

Weight

1.3Kg including battery





Comparison of Jilong Fusion Splicers

Function

KL-280G

KL-300T

KL-500

KL-510

Display fiber cleaved angle

-

?

?

?

Display fiber offset angle

-

?

?

?

Display core offset

-

?

?

?

Display clad offset

-

?

?

?

Splicing mode (Auto, Calibrate, Normal , Special)

?

?

?

?

Fiber aligning method (Core, Clad, Manual)

?

?

?

?

Arc strength automatic adjustment

?

?

?

?

Image turn over

-

?

?

?

Fiber angle limit

-

?

?

?

Display inside temperature

-

?

?

?

Display ambient temperature

-

?

?

?

Display heater temperature

-

?

?

?

Display air pressure

-

?

?

?

Display battery voltage

-

?

?

?

Taper splice

-

?

?

?

Sleep

-

?

?

?

Auto shut down

-

?

?

?



Accesorii standard

  • fiber cleaver
  • fiber stripper
  • inner rechargeable Li battery
  • AC adaptor
  • P.S cord
  • carrying case
  • spare electrodes
  • cooling tray
  • cleaning tools
  • operating manual


Alte produse JILONG

Brand: Jilong
APARAT DE SUDAT FIBRA OPTICA JILONG KL-500

• Applicable fibers: SM MM DS NZDS
• Fiber diameter: Cladding diameter:80-150µm
• Typical splicing time: Typical 9 sec (standard SM fiber)
• Fiber aligning method: Meticulous, Core, Clad, Manual
• Storage of splice results: 4000 results, 20 parameter per result
• Fiber image magnification: 120X (X or Y view), 60X (X and Y view)
• Weight: 1.3Kg including battery


Brand: Jilong
INCHIRIERE APARAT SUDURA FIBRA OPTICA

• Servicii de Inchiriere aparate de sudura fibra optica
• Preturi foarte accesibile, negociabile
• Orice perioada de inchiriere incepand cu 1 zi
• Accesorii necesare pentru sudare incluse: Fiber Stripper, Taietor fibra, Geanta transport, etc...


Brand: Jilong
APARAT SUDARE FIBRA OPTICA JILONG KL-510

• Applicable fibers: SM MM DS NZDS
• Fiber diameter: Cladding diameter:80-150µm
• Typical splicing time: Typical 9 sec (standard SM fiber)
• Fiber aligning method: Meticulous, Core, Clad, Manual
• Storage of splice results: 4000 results, 20 parameter per result
• Fiber image magnification: 120X (X or Y view), 60X (X and Y view)
• Weight: 1.1Kg including battery


Brand: Jilong

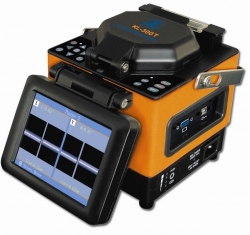

APARAT SUDURA FIBRA OPTICA JILONG KL-300T
