GOODWILL INSTEK AFG-200/100 Series

Cod: GOODWILL INSTEK AFG-200/100 Series



Brosura produs PDF, 2.97 Mb


Descriere

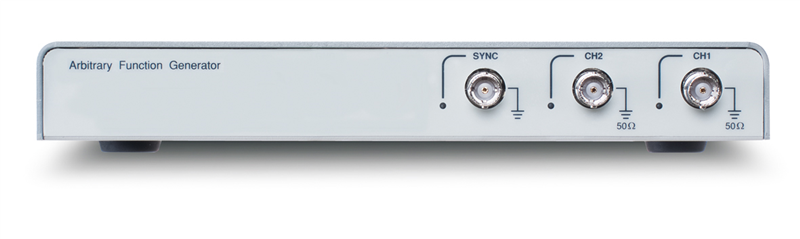

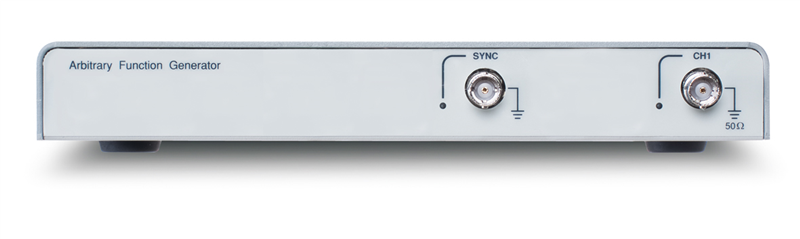

GW Instek launches the brand new AFG-100/200 series 25MHz USB modular arbitrary function generator with four models for selections. The AFG-100/200 series arbitrary function generator with many unique features such as light weight, handy, and USB interface compatible is an ideal choice for the applications at the general laboratories in applying stand-alone operation or collocation with the GDS-2000A series digital oscilloscope.



The main features of the AFG-100/200 series are output amplitude of 2.5Vpp (connecting with a load of 50 ohms), frequency range reaching 25MHz, frequency resolution of 1uHz, and built-in sine waveform, square waveform, triangle waveform, and noise signal. Square waveform can adjust the duty cycle from 1% to 99% and it can be utilized as pulse signal. Users, via the GDS-2000A FG APP, can select from the 66 built-in function waveforms to conduct arbitrary waveform editing. The AFG-100/200 series, with functions of AM/FM/PM/FSK/SUM modulation, frequency sweep, burst and coupling, is suitable for various communications applications.



The AFG-100/200 series collocates with the FG APP of GDS-2000A digital oscilloscope through USB interface. While conducting stand-alone operation, the AFG-100/200 series utilizes USB interface, which allows users to quickly set up their required tests by the simple connection feature. AWES (arbitrary waveform editing software) PC software is provided to enter settings speedily and easily for measurement. Users can select required waveforms from arbitrary waveform editor.



Features:

  • Frequency range: 1uHz~25MHz
  • 1uHz frequency resolution
  • Built-in 120 MSa/s, 10 bit resolution and arbitrary waveform editing function with 4k point memory
  • Dual channel models support coupling, tracking, and phase functions
  • Square waveform can adjust the duty cycle from 1% to 99%.
  • Support various arbitrary waveform editing methods.
  • Built-in AM/FM/PM/FSK/SUM(AFG-225/225P) modulation, sweep and burst functions
  • USB interface signal control

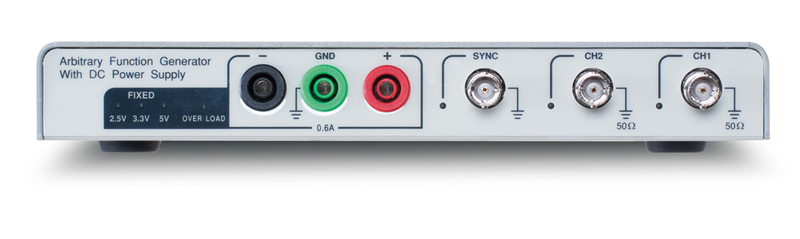

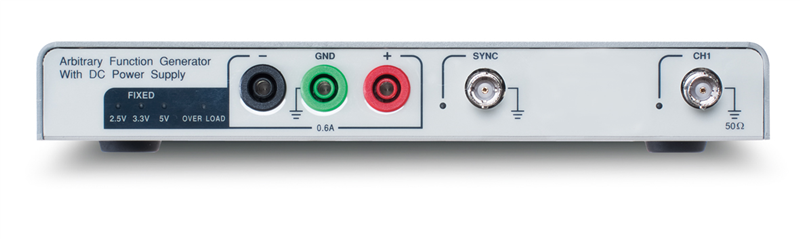

  • AFG-125P/225P provide three DC power selections


Alte produse INSTEK

OSCILOSCOAPE DIGITALE 2/4 CANALE 70/100/200/300MHZ INSTEK GDS-2000A

• GDS-2072A 70MHz ,2-channel ,Visual Persistence DSO
• GDS-2074A 70MHz ,4-channel ,Visual Persistence DSO
• GDS-2102A 100MHz ,2-channel ,Visual Persistence DSO
• GDS-2104A 100MHz ,4-channel ,Visual Persistence DSO
• GDS-2202A 200MHz ,2-channel ,Visual Persistence DSO
• GDS-2204A 200MHz ,4-channel ,Visual Persistence DSO
• GDS-2302A 300MHz ,2-channel ,Visual Persistence DSO
• GDS-2304A 300MHz ,4-channel ,Visual Persistence DSO


GOODWILL INSTEK PSB-2400L2

• Output Voltage Rating : 80V/800V
• Output Power Rating : 400W~800W
• Constant Power Output for Multi-Range(V&I)Operation
• Series and Parallel Operation(2 Units in Series or 4 Units in parallel Maximum)

GOODWILL INSTEK AFG-303X SERIES

• Input/output signal ground independent of housing and signal ground between channels also insulated.
• Synchronized phase operates up to 6 units and 12 channels
• Pulse waveform parameters can be set independently for more precise timing
• Harmonic signal generator


GOODWILL INSTEK PSS-SERIES

• High Resolution 10mV, 1mA
• High Stability, Low Drift
• Over-Voltage, Over-Current, Over Temperature Protection
• Intelligent Fan Control (Changes by Output Power)


GOODWILL INSTEK PSU-SERIES

• C.V/ C.C priority mode
• Adjustable voltage/current rise and fall time
• 1U height and 19½Rack Mount Size
• Bleeder Control function
• Internal Resistance function


ANALIZOR DE SPECTRU IEFTIN 150KHZ..3GHZ INSTEK GSP-730

• Frequency Range : 150kHz ~ 3GHz
• RBW Range : 30kHz, 100kHz, 300kHz, 1MHz
• ACPR/CHPW/OCBW Measurement
• Presentation Material for Training Courses
• Support Interface : USB Device/Host, RS-232C
• 5.6" TFT LCD with VGA Output


GOODWILL INSTEK PPE-3323

• 50 Sets memory
• Self test and software calibration
• Meets UL, CSA, IEC safety regulation
• Auto step running with timer setting


OSCILOSCOP ANALOGIC 2 X 100 MHZ GW INSTEK GOS-6103

• 100 MHz bandwidth, Delayed Sweep
• 2 analog channels
• 10 Sets Memory for Front Panel Setting Save & Recall
• Time Base Auto-range
• Cursor Readout with 7 Measurements

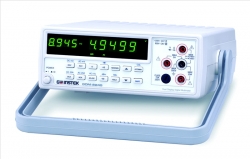

GOODWILL INSTEK GDM-8245
