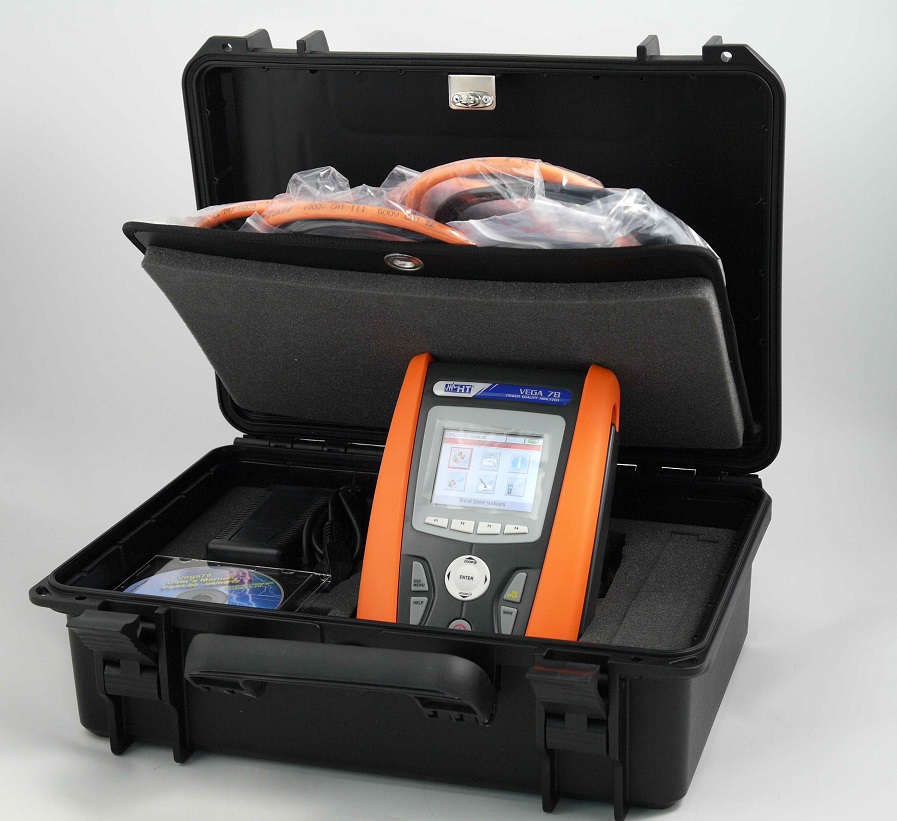

Analizor portabil calitate energie retele mono si trifazice HT Italia Vega78
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: HT Italia Vega78




Brosura produs PDF, 0.21 Mb


Descriere

  • TRMS P-N, P-P, P-PE voltage measures (5 inputs)
  • TRMS current on phases and neutral (4inputs)
  • Active, reactive and apparent powers measures
  • Active, reactive and apparent energies measures
  • Power factors measure
  • Frequency measure
  • Max 251 selected parameters at the same time
  • Integrated period selectable from 1s to 60min
  • Harmonic analysis of voltage and current up to 49th component
  • Voltage anomalies (sags, swells) with 10ms resolution
  • Numerical and graphical (waveforms) visualization
  • Histogram visualization of harmonic analysis
  • Vectorial diagram of voltages and currents
  • Voltage unbalance
  • Predefined recordings of parameters
  • TFT colour display with "touch screen"
  • 15Mbytes internal memory for recordings saving
  • Using of external compact flash and USB pen drives
  • USB interface for PC connection
  • Windows software for recordings analysis
  • Rechargeable Li-Ion battery and external AC/D adapter
  • Contextual help selectable on each screen
  • Virtual keyboard at display


Accesorii standard

  • KIT800: set of 5 cables with alligator clip
  • HTFLEX33D: flexible clamp 3000A AC, 174mm, 4 pcs
  • A0055: 100/240V 50Hz /5VDC external adapter
  • TOPVIEW2007: PC Windows software + USB cable C2007
  • BORSA2051N: carrying bag
  • PT400: Pen for touch screen display
  • Rechargeable battery Li-ION
  • Calibration certificate ISO9000
  • User manual on CD-ROM
  • Quick reference guide


Optiuni recomandate

  • HT96U: transducer standard clamp 1-100-1000A/1V AC, 54mm diameter
  • HT97U: transducer standard clamp 10-100-1000A/1V AC, 54mm diameter
  • HP30C2: transducer standard clamp 200-2000A/1V AC, 70mm diameter
  • HTFLEX35: flexible clamp 3000A AC, 274mm diameter
  • HT903: Box 3 x 1-5A / 1V for connection of CT’s
  • A0056: AC/DC external adapter 110V/60Hz
  • CF800: compact flash card 1GB
  • MCR800: USB compact flash reader
  • SP-0400: set of straps for carrying belt


Alte produse HT ITALIA

THT600 CAMERA INFRAROSU 384X288PXL

• Rezoluție IR 384x288 pxl
• Interval de temperatură -20° ÷ 650°C
• Frecvență imagine 50Hz
• Sensibilitate termică / NETD <0.05°C @ 30°C / 50mK
• Câmp vizual (FOV) 17° x 12.7°

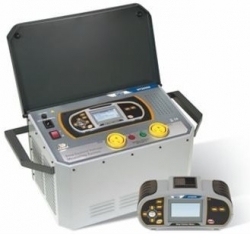

TESTER TENSIUNE DE PAS SI DE CONTACT CURENT MAXIM 50A HT ITALIA HT2055
