Tester securitate sisteme panouri fotovoltaice HT PVCHECK

Cod: HT PVCHECK




Brosura produs PDF, 0.12 Mb

Descriere

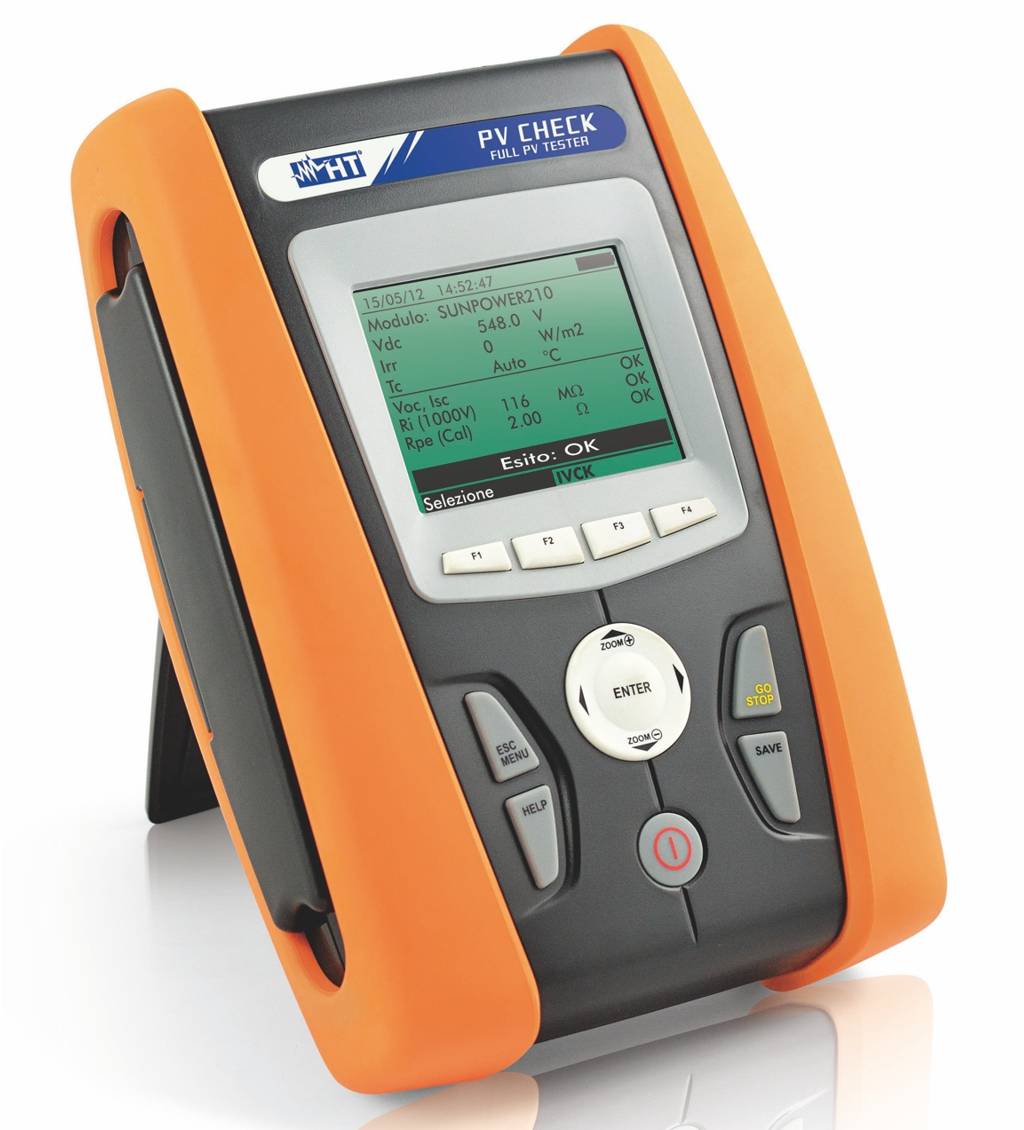

Multifunction instrument to check safety, parameters and performance of a PV plant





The multifunction instrument PVCHECK allows prompt and safe electrical checks required for a PV system (section DC) as well as controls on working of  modules / strings in accordance with IEC/EN62446 guidelines. PVCHECK verifies the  continuity of the protective conductors (and the associated connections) and executes insulation resistance measurement of the active conductors on a module, a string or a photovoltaic field in accordance with the requirements of IEC/EN62446, without the need of short-circuiting the positive and negative terminals. PVCHECK allows verification of  a PV string's working in accordance with the requirements of IEC/EN62446 by measuring the open circuit voltage and short-circuit current under operating conditions and reporting the results to STC (by means of radiation measurement). It provides an immediate outcome for both absolute measurements and for measurements compared  with the previously tested PV strings.
PVCHECK also allows carrying out performance analysis of PV array (DC) under operating conditions (connected to the inverter) providing an indication of the power generated and the efficiency of the field as specified by IEC/EN62446.



  • Safety test of PV installation
  • Continuity test on protective conductors with 200mA
  • Insulation test with test voltage of 250, 500, 1000VDC
  • DC voltage
  • DC current
  • DC Power
  • Solar irradiation [W/m2] with reference cell
  • Environmental  and module temperature by means of PT1000 probe
  • SOLAR-02: remote unit for irradiance and temperature measurements (RF connection).
  • Recording of PV plant parameters (DC side) with programmable IP (5s � 60min)
  • Use of PDC compensation ratios according to environmental and module temperature
  • Use of relationship to maximize the DC efficiency
  • Outcome OK/NO
  • Check of PV string's working
  • Measurement of open circuit voltage up to 1000V DC
  • Measurement of short circuit current up to 10A DC
  • Measurement of temperature, automatic or by means of  PT1000 probe
  • Measurement of solar radiation [W/m2] with reference cell
  • Mechanical inclinometer for the detection of solar radiation incidence angle
  • Comparison with standard conditions (STC 1000 W/m2, 25�C)
  • Outcome of testing: OK / NO
  • Database to manage up to 30 types of photovoltaic modules
  • Internal memory for data saving
  • Optical/USB port for PC connection
  • Help on line on display





Standards

EMC 2004/108/CE Directive
CE MARK
IEC/EN 61010-032
IEC/EN 61010-1
IEC/EN61557-1
IEC/EN61557-2
IEC/EN61557-4
IEC/EN62446
LVD 2006/95/CE Directive



Accesorii standard

STANDARD

  • KITGSC4 : Set 4 cables + 4 alligator clips
  • KITPCMC3 : Set of 2 multi-contact one wire for MC3 connectors
  • KITPCMC4 : Set 2 multi-contact one wire for MC4 connectors
  • HT4004 : Standard clamp for  DC current up to 100A
  • TOPVIEW2006 : Windows software + optical/USB cable C2006
  • BORSA2051 : Soft carrying bag
  • User manual on CD-ROM
  • Quick reference guide
  • ISO9000 calibration certificate


Optiuni recomandate

  • SOLAR-02 : Remote unit for irradiance/temperature
  • HT304N : Reference cell for radiation measurements
  • PT300N : PT1000 probe for cell temperature measurement
  • M304 : Mechanical inclinometer
  • SP-0400 : Set of straps for use of meter on neck
