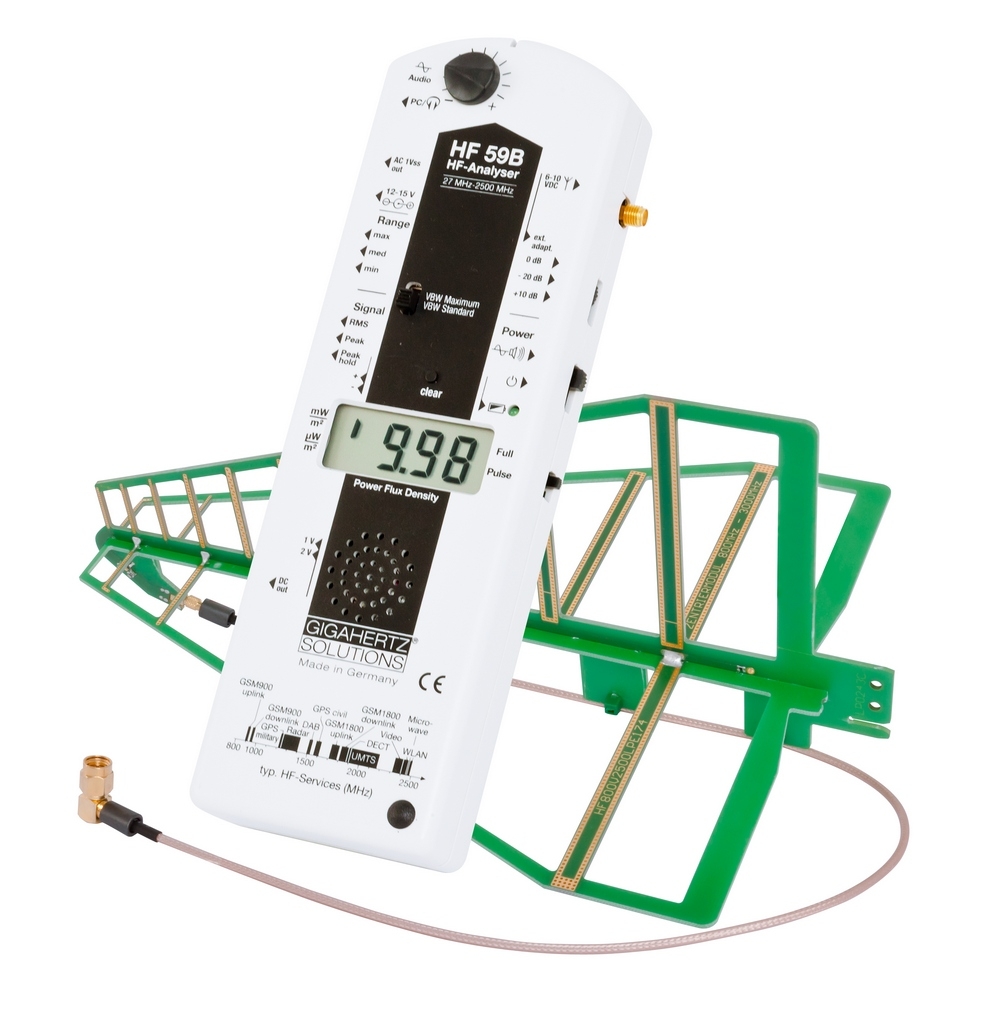

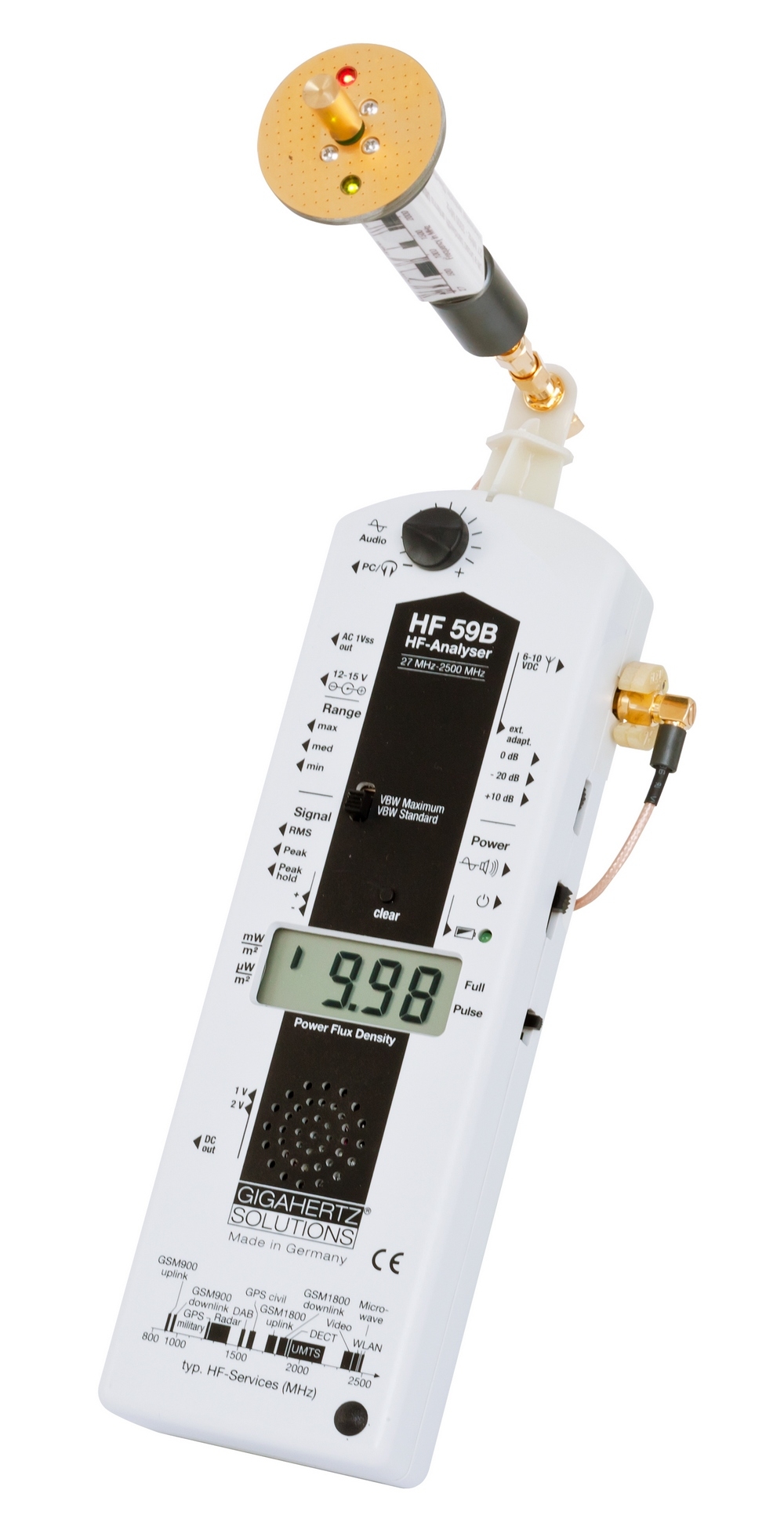

Due to its extra broad frequency response, this basic device is predestined for an extension with the UBB27 and for detailed, professional analyses. Its functions and features are tailored to the needs and practical experiences of the building biology. Due to its comparably low price, it is often also used for scientific and industrial purposes - mostly as kit called HF E 59B - especially in the sector of EMVU and product development (precompliance).

Frequency range: A frequency range of down to 27 MHz within the basic device - suitable for the connection of an optionally available antenna (the scope of delivery includes a compensated antenna for 800 MHz up to 2.7 or 3.3 GHz)

Features:

A frequency range of down to 27 MHz within the basic device - suitable for the connection of the optionally available antenna UBB27_G3 (the scope of delivery includes a compensated antenna for 800 MHz up to 2.7 or 3.3 GHz).
A calibrated extra AC-measurement output for the demodulated signal, and a scalable DC-output.
HINT: If you only need to measure above 800 MHz the HF58B-r is the cheaper and better solution for you. Only with the antenna UBB27 (included in the kit HFE59B) you can in fact measure frequencies below 800 MHz (e.g. digital TV, TETRA, new GSM Channels in Europe).

Alte produse GIGAHERTZ

GIGAHERTZ SOLUTIONS - ULTRA BROAD BAND HF ANALYSER SET HFEW35C

• This set also enables a quantitative differentiation between pulsed and unpulsed radiation corresponding to the building biology recommendations for the frequency range of 2.5 GHz to 6 GHz.
• Detailed information to be found in the specific product descriptions.
• The plastic case K5 for a safe transportation of the measurement devices plus antennas is included in the scope of supply.

GIGAHERTZ SOLUTIONS - 3D-LF-ANALYSER WITH DATA LOGGER NFA1000

• Non-isolated electric field measurement possible with integrated sensor or with the optionally available TCO conform probe TCO3.
• An integrated voice recorder facilitates the measurement analysis.
• Please have a look at the data sheet (to be found under "available downloads") for detailed descriptions of the broad performance range of this meter, also in comparison to the other NFAs.

GIGAHERTZ SOLUTIONS - HF-ANALYSER HFW35C

• Frequency range from 2.4 to 6 GHz.
• A special device suitable for the measurement of radiation caused by wireless applications / computer networks, including the new standards (Bluetooth, WLAN, WiFi), also covering the WiMAX-frequencies auctioned off in 2006.
• It comes with an especially aligned log.-per. antenna with excellent directivity (Patent pending: AZ 10 2006 051 180.8 ).

GIGAHERTZ SOLUTIONS - HF-ANALYZER HFE35C-BASIC

• Audio analyses for the identification of pulsed radiation sources (mobile radio (GSM, UMTS/G3), cordless telephones (DECT), WLAN (Bluetooth), air-traffic control radar) by means of an acoustic signal proportional to the modulation frequency.
• Display of peak value as well as average value (switchable).
• Sensitivity increased by a factor of 10 (from a minimum display resolution of 0.1µW/m² to a maximum of 1999 µW/m²).

GIGAHERTZ SOLUTIONS - 3D-MAGNETIC FIELD DATA LOGGER NFA30M

• Allows longterm measurements of the magnetic field as required in the guidelines for sleeping place measurements.
• Please have a look at the data sheet (to be found under "available downloads") for detailed descriptions of the broad performance range of this meter, also in comparison to the other NFAs.

GIGAHERTZ SOLUTIONS - HF-ANALYSER HF32D

• The reading shows the total pollution without any calculation required.
• The measured values are reliably displayed directly in the entity corresponding to the building biology standard values.
• An acoustic signal proportional to the field strength with "Geiger-counter-effect" helps identifying regions with increased exposure.
• Digital display of 1 µW/m² up to 1999 µW/m².

GIGAHERTZ SOLUTIONS - LOW FREQUENCY ANALYSER ME3851A

• NiMH battery, battery charger / power supply unit included.
• An AC- and a DC-output.
• Increased reliability by the use of a test switching mode for the zero deviation.

GIGAHERTZ SOLUTIONS - HF-ANALYSER HF59B

• A frequency range of down to 27 MHz within the basic device - suitable for the connection of the optionally available antenna UBB27_G3 (the scope of delivery includes a compensated antenna for 800 MHz up to 2.7 or 3.3 GHz).
• A calibrated extra AC-measurement output for the demodulated signal, and a scalable DC-output.
• HINT: If you only need to measure above 800 MHz the HF58B-r is the cheaper and better solution for you. Only with the antenna UBB27 (included in the kit HFE59B) you can in fact measure frequencies below 800 MHz (e.g. digital TV, TETRA, new GSM Channels in Europe).

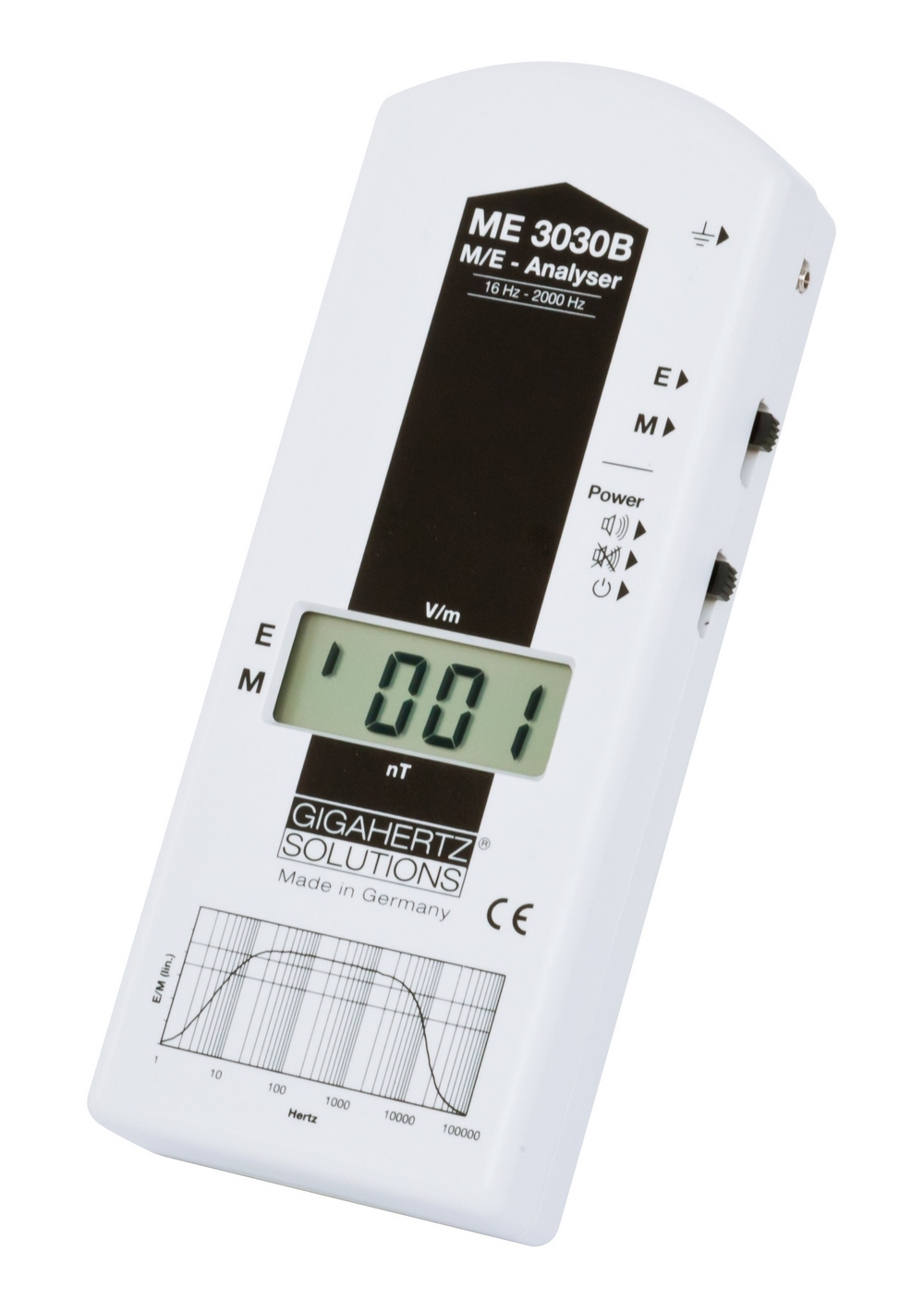

GIGAHERTZ SOLUTIONS - LOW FREQUENCY ANALYSER ME3030B

• The reading shows the total pollution without any calculation required.
• The measured values are reliably displayed directly in the entity corresponding to the building biology standard values, namely:
• The electric field strength from 1 to 1999 V/m (against ground potential)
• The magnetic flux density from 1 to 1999 nT.

GIGAHERTZ SOLUTIONS - HF-ANALYSER SET HFW59D PLUS

• Maximum video band width for the demonstration of the shortest radar pulses (< 0.5 µs).
• Optimized Peak Hold function (patent no. DE 103 34 886).
• HV20_2400G10 included for maximum sensitivity within the full frequency range: 0.01 mW/m² display resolution for measurements of weakest WLAN signals.
• Includes an especially shielded log-per antenna with excellent directional characteristics.
