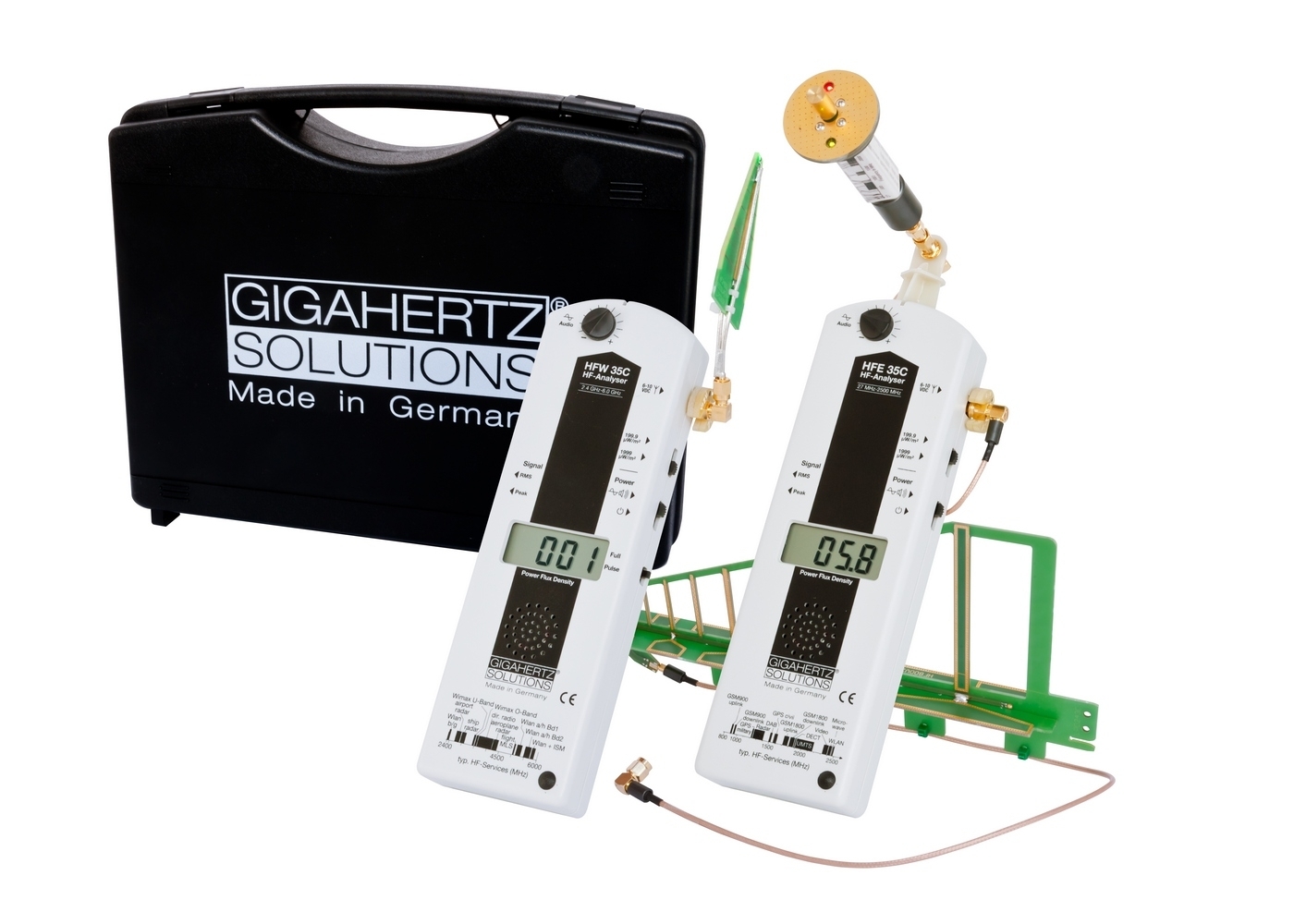

Gigahertz Solutions - ULTRA BROAD BAND HF ANALYSER SET HFEW35C

• Maximum video band width for the demonstration of the shortest radar pulses (< 0.5 µs).
• Optimized Peak Hold function (patent no. DE 103 34 886).
• HV20_2400G10 included for maximum sensitivity within the full frequency range: 0.01 mW/m² display resolution for measurements of weakest WLAN signals.
• Includes an especially shielded log-per antenna with excellent directional characteristics.



• Display of peak value as well as average value (switchable).
• Sensitivity increased by a factor of 10 (from a minimum display resolution of 0.1µW/m² to a maximum of 1999 µW/m²).
• HINT: Our best-selling meter for the easy evaluation!



• A 10 times higher sensitivity: Minimum display resolution 0.01 µW/m² .
• A measuring range extended upwards by a factor of 10: max. 19.99 mW/m² .
• Clearly simplified measurements with the help of the "peak-hold"- function.



• Horizontal isotropic ultra broad bandwidth antenna UBB27_G3 from 27 MHz up to beyond 3.3 GHz (limited by the frequency response of the HF59B).
• 800 MHz high pass filter HP800_G3 for the suppression of low frequencies when measuring with the log.-per. antenna of the HF59B.
• High frequency preamplifier HV10_27G3. Increases the measurement range by 10 dB (by a factor of 10) - important when wanting to reduce the increased noise background in the radar or UMTS/3G-mode.



• This set also enables a quantitative differentiation between pulsed and unpulsed radiation corresponding to the building biology recommendations for the frequency range of 2.5 GHz to 6 GHz.
• Detailed information to be found in the specific product descriptions.
• The plastic case K5 for a safe transportation of the measurement devices plus antennas is included in the scope of supply.



• Includes an especially shielded log-per antenna with excellent directional characteristics.
• Integrated steep high pass filter at 2.4 GHz reliably suppresses the often dominant GSM and DECT frequencies.
• Calibrated AC measurement output for the demodulated signal, scalable DC output.



• NiMH battery, battery charger / power supply unit included.
• An AC- and a DC-output.
• Increased reliability by the use of a test switching mode for the zero deviation.



• For technical details please check the information supplied on the pages of the individual meters.
• The attenuator DG20_G10 contained in the kit is suitable for both meters.
• For a safe transport of the meters and antennas, the kit is supplied in a plastic case (K2).



• A frequency range of down to 27 MHz within the basic device - suitable for the connection of the optionally available antenna UBB27_G3 (the scope of delivery includes a compensated antenna for 800 MHz up to 2.7 or 3.3 GHz).
• A calibrated extra AC-measurement output for the demodulated signal, and a scalable DC-output.
• HINT: If you only need to measure above 800 MHz the HF58B-r is the cheaper and better solution for you. Only with the antenna UBB27 (included in the kit HFE59B) you can in fact measure frequencies below 800 MHz (e.g. digital TV, TETRA, new GSM Channels in Europe).



• ONE-dimensional potential-free measurement of the electric field (Y-axis).
• Non-isolated electric field measurement possible with integrated sensor or with the optionally available TCO conform probe TCO3.
• An integrated voice recorder facilitates the measruement analysis.
