Extech PRT200 Tester secventa faza fara contact

Cod: Extech PRT200




Brosura produs PDF, 0.2 Mb

Descriere

Tests up to 1000VAC with visual/audible indication

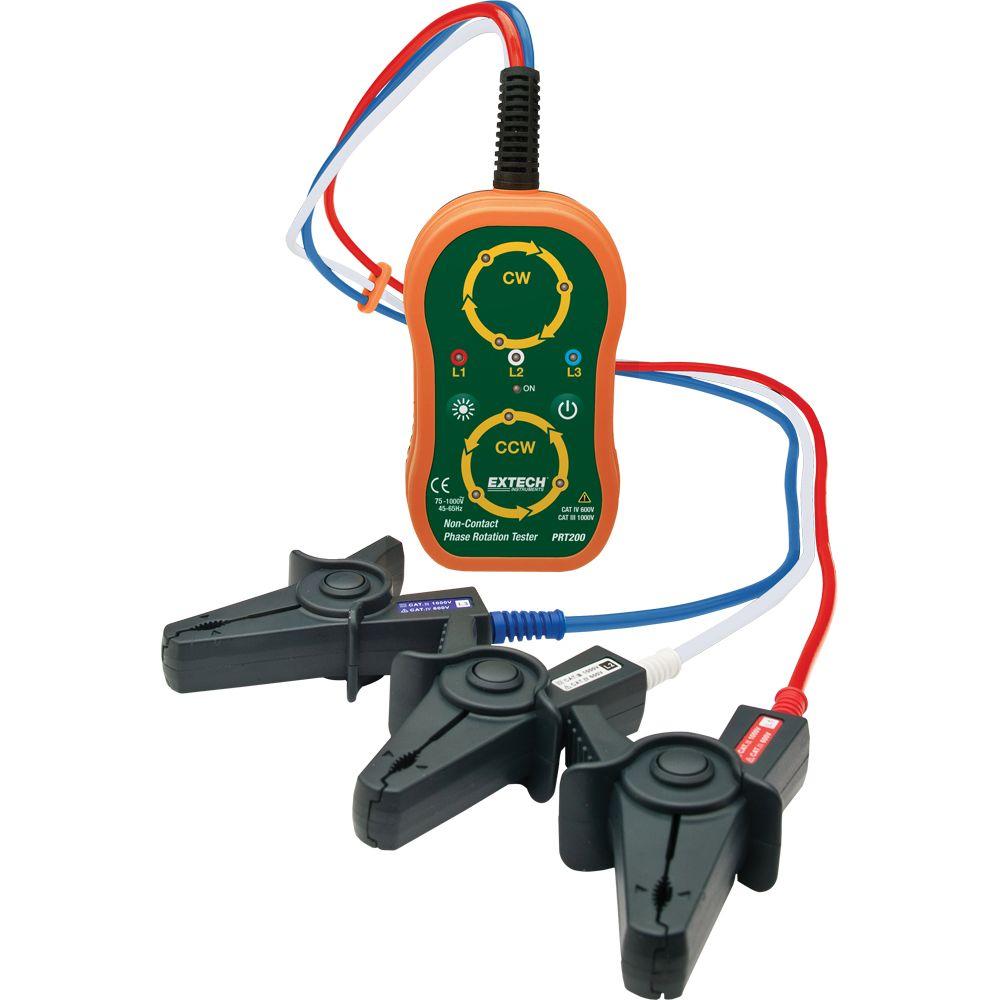

The PRT200 is a non-contact phase sequence tester that tests up to 1000 VAC with visual/audible indication. The tester has a 45 to 65Hz frequency range, features adjustable Hi/Lo LED brightness switch for making measurements in dimly lit areas or sunlight, low battery warning and fully insulated alligator clips with wide jaws. The product has a CAT IV 600 Volt safety rating and is complete with a year warranty, three built-in 30 in. test leads with large color-coded alligator clips, 4 AA batteries, and a pouch case.



Features:

  • 75 to 1000VAC input voltage with 45 to 65Hz frequency range
  • LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
  • Beeper sounds intermittently when correct phase is detected and continuously if phase is reversed
  • Durable housing with back cover magnet for attachment to an AC distribution panel for easy measurement
  • Adjustable Hi/Lo LED brightness switch for making measurements in dimly lit areas or sunlight
  • Fully insulated alligator clips with wide jaws
  • Low battery warning
  • Complete with three built-in 30" test leads with large color-coded alligator clips, four AA batteries, and pouch case
