The SIGI EX is a multi range measurement device for flammable gases with an internal pump. Like many other Esders instruments the well known operating concept with a menu technology driven by two function keys is also used for the SIGI EX.

Innovations:

Improved sensor technology and adjustment options
Increased operating temperature range of -20 to +50 ° C
By up to 44% larger display area for better readability
Red backlight for improved perception of alarm messages
Simpler handling of the battery and battery connection mechanism
Extension of the operating time by about 30%
Representation of the individual menu items (fields of application) in plain text

The following operating modes are used in the menu:

Workplace monitoring (measurement of LEL; 0 -50% LEL)
Tracing gas in pipeline networks ( measurement of gas concentration from ppm to 100 Vol.% with auto ranging)
Leak detection in houses (measurement of gas concentration on gas installations and alarm on LEL; ppm to 50% LEL)
Pipe filling, gaspurity (measurement range from 0 to 100 Vol.%)

The display shows useful informations like the peak value or leak rate. Furthermore it is possible to make pressure measurements (optional) and leak detection together with the SIGI EX P. One problem on an installation is a low gas pressure or a failure of the gas regulator. That is why the SIGI EX is together with the functions of monitoring the explosion limits and leak detection a powerful testing device for pressure tests of in-house gas installations.

The construction of the device head with a built in pump guarantees an extremely short indication time of flammable gas concentrations. The hydrophobic filter is easy to exchange and provides a protection of the device from water and dust. As an extra options a flexible probe with quick connector, a test adapter and chargers for 12 volt and 230 volt are available.

Extremely rugged and light weight hand-held measurement device
Internal pump and filter technology
Menu technology and function keys for easy operating
Automatic start in last used operating mode
Display of useful extra information, peak value and leak rate

Alte produse ESDERS

ESDERS GOLIATH ANALIZOR DE GAZE

• Time-tested Esders operation concept.
• Very quick initial break-in phase after being switching on or changing application.
• Extremely short reaction times when measuring CH4 and CO2 in all concentrations.
• Oxygen and up to 3 toxic gas sensors are available as an option.
• Ethane analysis with automatic measurement result assessment can be integrated.
• Optional pressure measuring up to 2,000 hPa.

ESDERS VIBRAGAS EX TESTER GAZ U CERTIFICARE EX

• Easy replacement of batteries with innovative battery Management
• Systematic evaluation of the measured data using Esders PC-1 software
• Graphical printout on site on mobile printer
• Simple operation with intuitive menu navigation
• Practical accessories for all applications

ESDERS TONI GASTEST CH4 DETECTOR SCURGERI GAZ METAN

• Interval de măsurare: 0 - 10.000 ppm metan
• Timp de răspuns foarte rapid
• Robust, portabil, cu protecţie IP64
• Alarmă de vibraţii şi afișaj digital
• Fabricat în Germania

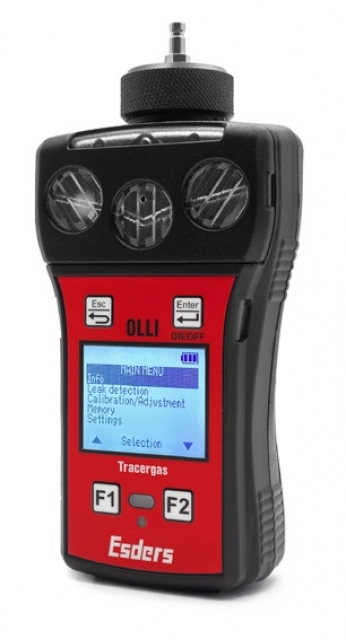

DETECTOR SCAPARI GAZ CU POMPA SPATII INTERIOARE SI EXTERIOARE ESDERS OLLI CU PROTECTIE EXPLOZII ATEX

• Aparat de măsurare antiexplozie ATEX
• Se pot instala până la trei senzori de gaz (Ex/Ox/Tox)
• Dispozitivul poate fi echipat baterii Li-ion, pompă și măsurare presiuni
• compact, rezistent la explozii, pentru până la cinci gaze combustibile și toxice, precum și oxigen
• carcasă din plastic extrem de durabilă din 2 componente

ESDERS SIGI EX TESTER GAZE INFLAMABILE

• Improved sensor technology and adjustment options
• Increased operating temperature range of -20 to +50 ° C
• By up to 44% larger display area for better readability
• Red backlight for improved perception of alarm messages

ESDERS VIBRAGAS DETECTOR GAZ CU ALARMA

• Rugged hand-held instruments with ergonomic aluminum housing
• Wide range of applications in the gas installation
• Powerful gas detector with vibration alarm and digital display reading for gas leak detection
• High contrast LCD display with backlight for an optimal presentation of all measured values

ESDERS SAFE ETHANTEST TESTER GAZ ETAN

• Taking the service box to the measurement site
• Activate device and connect sensor
• Feed sensor into sensor hole and start analysis at the touch of a button
• SAFE absorbs a gas sample and displays its concentration in vol.%
• The gas sample passes through the chromatographic column and the display of methane and ethane (if applicable) takes place

ESDERS VACUUM-PROBES-SYSTEM VSS 15

• Complete with connection cable and metal plug
• Stainless steel design with coarse filter and integrated water barrier
• Complete with connection cable and metal bush

ESDERS LECKOMIO DETECTOR PORTABIL DE SCAPARI SCURGERI GAZ METAN

• Rugged hand-held instruments with ergonomic aluminum housing
• Wide range of applications in the gas and water installation
• Load- and tightness tests according to TRGI
• Powerful gas detector with vibration alarm and digital display reading for gas leak detection

ESDERS GOLIATH BIOGAS ANALIZOR DE BIOGAZ

• Use of infrared sensors for CH4 and CO2 guarantee fast run-in period and extremely short response times and exclude cross-sensitivities to other gases.
• An oxygen and a hydrogen sulphide sensor are offered as an option.
• The measurement range for H2S is 0 to 2,000 ppm and cover the requirement for measurements at biogas plants ideal.
