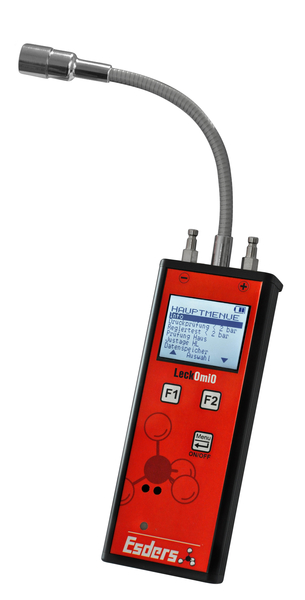

The LeckOmiO is a combination device for various applications in the gas installation. It Allows detection of smallest gas leaks as well as rapid and precise pressure measurements, ease of use and a wide range of applications. Through the display of minimum and maximum values??, as well as measurement times and start and end pressures in pressure tests, it offers numerous advantages in handling. The following operating modes are selectable from the menu:

Pressure Test display of starting pressure, final pressure, measurement time and pressure drop, as well as minimally and maximum pressure value.

Regulator Test display of the outgoing pressure, closing pressure, safety pressure release valve response pressure and leak-proof completion, upper and lower deactivation of safety shut-off valve and leak-proof completion.

Load test according to TRGI Menu-driven procedure with individual Adjusting of the measuring time to the requirements of the TRGI load testing

Tightness test according to TRGI Menu-driven procedure with individual Adjusting of the measuring time to the requirements of the TRGI tightness testing

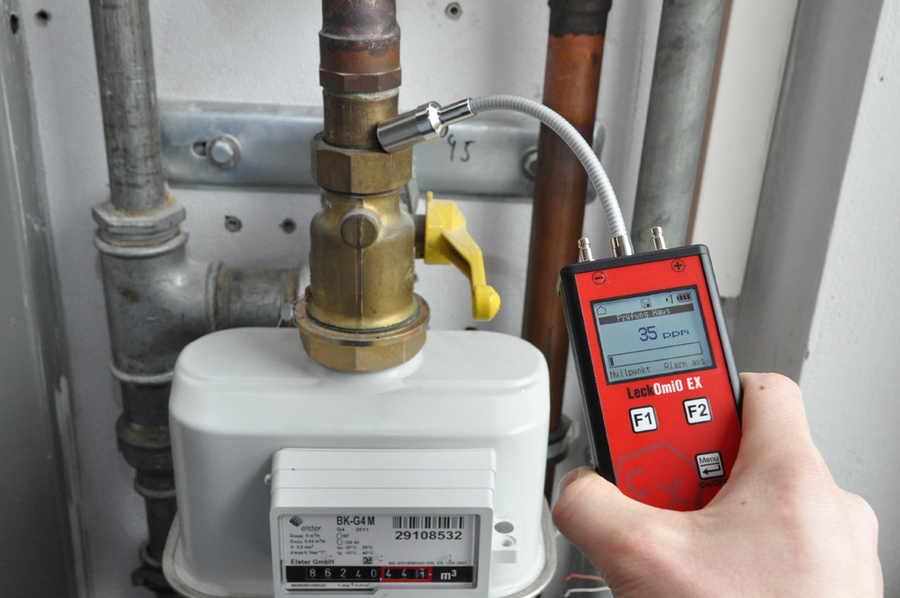

Building inspection detection of smallest leaks in plumbing lines and connections. In addition to the optical and acoustic signal a vibration alarm is available.

Settings Custom configuration of the operating parameters such as the measuring unit, automatic switch off or the duty cycle of the backlight to the user�s requirements.

Adjustment Sensor sensitivity test and calibration of the device according to DVGW Note G 465-4 by applying test gas and set point adjustment by pressing a button

Features:

Rugged hand-held instruments with ergonomic aluminum housing
Wide range of applications in the gas and water installation
Load- and tightness tests according to TRGI
Powerful gas detector with vibration alarm and digital display reading for gas leak detection
High contrast LCD display with backlight for an optimal presentation of all measured values
Easy replacement of batteries with innovative battery Management
Systematic evaluation of the measured data using Esders PC-1 software
Graphical printout on site on mobile printer
Simple operation with intuitive menu navigation Practical accessories for all applications

Alte produse ESDERS

ESDERS VACUUM-PROBES-SYSTEM VSS 15

• Complete with connection cable and metal plug
• Stainless steel design with coarse filter and integrated water barrier
• Complete with connection cable and metal bush

ESDERS HUNTER DETECTOR SI ANALIZOR SCAPARI DE GAZE

• Cast carpet mat free from the material wear common in deep drawn mats
• Stabilising mould elements enable optimal fit on the ground and enable the carpet to be pulled backwards
• Comprehensive flow channels for sampling

ESDERS MULTI GAS DETECTOR H2S CO O2 LEL

• 2 month battery life on a single charge (infrared version)
• Compact and lightweight
• Low maintenance cost
• Simple to use
• LEL sensor (IR) does not require oxygen

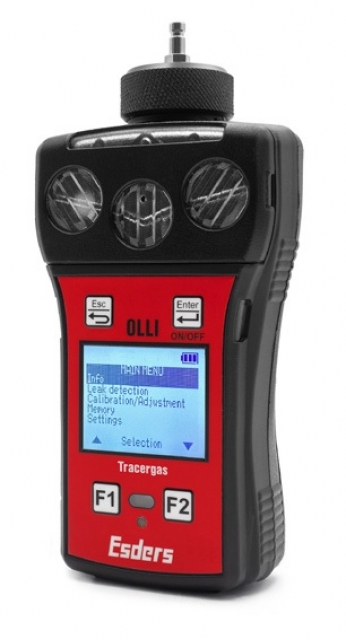

DETECTOR SCAPARI GAZ CU POMPA SPATII INTERIOARE SI EXTERIOARE ESDERS OLLI CU PROTECTIE EXPLOZII ATEX

• Aparat de măsurare antiexplozie ATEX
• Se pot instala până la trei senzori de gaz (Ex/Ox/Tox)
• Dispozitivul poate fi echipat baterii Li-ion, pompă și măsurare presiuni
• compact, rezistent la explozii, pentru până la cinci gaze combustibile și toxice, precum și oxigen
• carcasă din plastic extrem de durabilă din 2 componente

ESDERS VIBRAGAS EX TESTER GAZ U CERTIFICARE EX

• Easy replacement of batteries with innovative battery Management
• Systematic evaluation of the measured data using Esders PC-1 software
• Graphical printout on site on mobile printer
• Simple operation with intuitive menu navigation
• Practical accessories for all applications

ESDERS LECKOMIO EX DETECTOR SCURGERE GAZ

• Extremely rugged hand-held measurement device as an individual or combination instrument in aluminium casing with very-well protected LCD display
• Easy operation through menu technology and function keys guarantees problem-free use.
• Document tests by printing them on the thermal-printer through the IR interface
• Practice-orientated accessories for all applications

ESDERS GASCAM® SG CAMERA VIZUALIZARE SCURGERI GAZ METAN

• Infrared Lens
• Detector unit
• Lithium-ion rechargeable battery packs
• Tripod with swivel/tilt head
• High performance Notebook

ESDERS GASTEST DELTA3 TESTER GAZ CONFORM DVGW-TRGI 2008

• Usability test in accordance with G5952 or Esders express procedure
• Leak detection via external, digital hand sensor with integrated calibration and vibration alarm
• Automatic and manual test on controllers and safety valves
• Leak test with 150 mbar, strength test with 1 bar
• Pressure measurement up to 25 bar via external sensors

ESDERS GOLIATH ANALIZOR DE GAZE

• Time-tested Esders operation concept.
• Very quick initial break-in phase after being switching on or changing application.
• Extremely short reaction times when measuring CH4 and CO2 in all concentrations.
• Oxygen and up to 3 toxic gas sensors are available as an option.
• Ethane analysis with automatic measurement result assessment can be integrated.
• Optional pressure measuring up to 2,000 hPa.

ESDERS SIGI EX TESTER GAZE INFLAMABILE

• Improved sensor technology and adjustment options
• Increased operating temperature range of -20 to +50 ° C
• By up to 44% larger display area for better readability
• Red backlight for improved perception of alarm messages
