The new GasCam^® SG model offers you a significantly lighter and more compact system. As a highly specialised system for the detection of methane, it is the ideal choice for the detection of leaks in biogas and natural gassystems. Methane can be detected reliably even from distances of up to 100 metres, and is displayed against the background as a coloured gas cloud in real time.

Inspect natural gas and biogas plants for thightness and methane emissions more quickly

The question of whether natural gas or biogas plants are safe or not largely depends on whether they are leakproof. Unknown and undiscovered gas escapes in natural gas and biogas plants thus pose a great danger. The methane contained in these gases can not only turn into an ignition hazardous mixture with the ambient air, but is also a greenhouse gas which is 22 times stronger than CO². Therefore, leaks in gascontaining plants must be determined quickly and precisely in order to ensure the plant’s safe operation. Up to now, it has been very troublesome and above all time-consuming and cost-intensive to down gas escapes by using conventional flame ionisation or semiconductor gas detectors. The search for leaks can now be conducted much more quickly. This is enabled by the GasCam^® SG from Esders, a mobile infrareddetector measuring unit, which diagnoses gas clouds at gas containing plants in real time and immediately provides the user with a colour moving images of the escaping methane cloud. GasCam^® SG can be up to100 metres away from the object being measured. The measurement system�s big benefit: leaks are discovered immediately and the point of escape is located.

Features:

Infrared Lens
Detector unit
Lithium-ion rechargeable battery packs
Tripod with swivel/tilt head
High performance Notebook

Alte produse ESDERS

ESDERS LECKOMIO DETECTOR PORTABIL DE SCAPARI SCURGERI GAZ METAN

• Rugged hand-held instruments with ergonomic aluminum housing
• Wide range of applications in the gas and water installation
• Load- and tightness tests according to TRGI
• Powerful gas detector with vibration alarm and digital display reading for gas leak detection

ESDERS SAFE ETHANTEST TESTER GAZ ETAN

• Taking the service box to the measurement site
• Activate device and connect sensor
• Feed sensor into sensor hole and start analysis at the touch of a button
• SAFE absorbs a gas sample and displays its concentration in vol.%
• The gas sample passes through the chromatographic column and the display of methane and ethane (if applicable) takes place

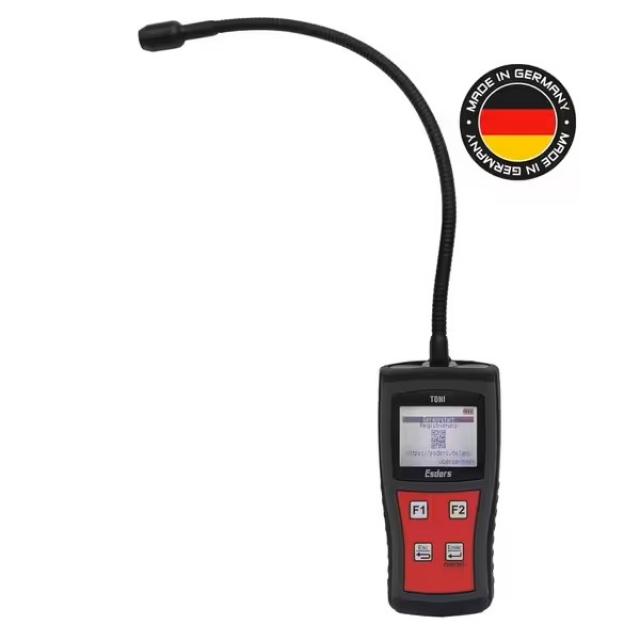

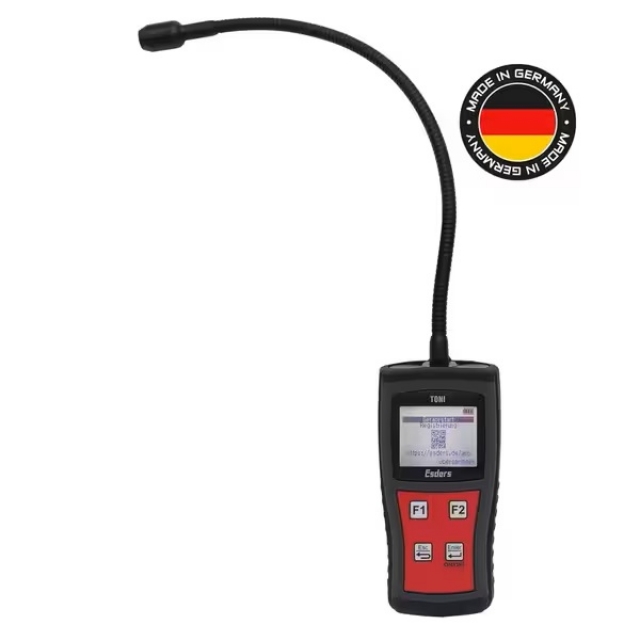

ESDERS TONI GASTEST CH4 DETECTOR SCURGERI GAZ METAN

• Interval de măsurare: 0 - 10.000 ppm metan
• Timp de răspuns foarte rapid
• Robust, portabil, cu protecţie IP64
• Alarmă de vibraţii şi afișaj digital
• Fabricat în Germania

ESDERS GAS STANDPIPE - SISTEM TESTARE TEAVA DE EVACUARE GAZE

• Practical system with wide application
• Easy adaptation to many thread sizes, drilling saddles and fittings -directly or via electrically conductive tube
• Rapid extraction of gas by using the Venturi nozzle
• Flame arrestor for burning off the gas safely

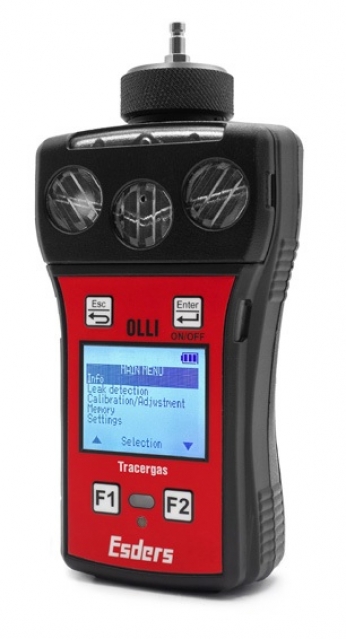

DETECTOR SCAPARI GAZ CU POMPA SPATII INTERIOARE SI EXTERIOARE ESDERS OLLI CU PROTECTIE EXPLOZII ATEX

• Aparat de măsurare antiexplozie ATEX
• Se pot instala până la trei senzori de gaz (Ex/Ox/Tox)
• Dispozitivul poate fi echipat baterii Li-ion, pompă și măsurare presiuni
• compact, rezistent la explozii, pentru până la cinci gaze combustibile și toxice, precum și oxigen
• carcasă din plastic extrem de durabilă din 2 componente

ESDERS SIGI EX TESTER GAZE INFLAMABILE

• Improved sensor technology and adjustment options
• Increased operating temperature range of -20 to +50 ° C
• By up to 44% larger display area for better readability
• Red backlight for improved perception of alarm messages

ESDERS GOLIATH ANALIZOR DE GAZE

• Time-tested Esders operation concept.
• Very quick initial break-in phase after being switching on or changing application.
• Extremely short reaction times when measuring CH4 and CO2 in all concentrations.
• Oxygen and up to 3 toxic gas sensors are available as an option.
• Ethane analysis with automatic measurement result assessment can be integrated.
• Optional pressure measuring up to 2,000 hPa.

ESDERS VACUUM-PROBES-SYSTEM VSS 15

• Complete with connection cable and metal plug
• Stainless steel design with coarse filter and integrated water barrier
• Complete with connection cable and metal bush

ESDERS GOLIATH BIOGAS ANALIZOR DE BIOGAZ

• Use of infrared sensors for CH4 and CO2 guarantee fast run-in period and extremely short response times and exclude cross-sensitivities to other gases.
• An oxygen and a hydrogen sulphide sensor are offered as an option.
• The measurement range for H2S is 0 to 2,000 ppm and cover the requirement for measurements at biogas plants ideal.

ESDERS GASTEST DELTA3 TESTER GAZ CONFORM DVGW-TRGI 2008

• Usability test in accordance with G5952 or Esders express procedure
• Leak detection via external, digital hand sensor with integrated calibration and vibration alarm
• Automatic and manual test on controllers and safety valves
• Leak test with 150 mbar, strength test with 1 bar
• Pressure measurement up to 25 bar via external sensors
