Remarkable Features
1, Smart phone-type, icon-based menu management
2, Strong tasks management functions: supporting Info-management of gauges under calibrate, Parameter setup while calibration, Auto-executed while calibration, Data automated analysis, AutoMark of overproof point.
3, Fast saving calibration results and Tasks download upload available;
4, Thermal units exchange tool, which conforms to ITS-90;
5, Advanced automated cold side compensation technique: Build-in cold junction heat preservation block; temperature variation tracing rapidly; and take the lead in realizing the calibration of cool junction sensor.
6, Reliable mis-operation protection technique: 30V mis-operation voltage can be bore between any two jacks. The test jack can bore 1A mis-operation current for quite a long time. After the mis-operation stopped, the calibrator will return to normal and no need to change fuse.

Other Features
1, Screen snapshot file saving is available.
2, Supports the calibration of square root transmitter and its display instrument;
3, Pulse frequency output is available;The calibration of Flow totalizer is convenient.
4, Use as high accuracy Pt resistance digital thermometer, Supports parameter adjustment of Ro, a, b and c
5, The rechargeable battery can be replaced, and it has a quite long continuing working time, 15hours.
6, Introducing 3.5 inch TFT color screen, English display.

Applications
Resistance measurement / simulation
Voltage measurement / generation
Current measurement /generation
Frequency measurement / generation
Pulse counting/generation
24 VDC loop supply
Switch sensing
RTD measurement / simulation
TC measurement / simulation

31X Series calibrator Selection Sheet

Description		ConST316	ConST317	ConST318
Measure Source	mV- Voltage	v	v	v
	V-Voltage	v	v	v
	I- Current	v	v	v
	Hz- Frequency	v	v	v
	Pulse	v	v	v
	R-Resistance	v	v	v
	On-off	v	v	v
	RTD(4)	v	v	v
	RC(8)	v	v	v
Other function	Thermal units converter	v	v	v
	Task Management	v	v	v
	Ramp, Step	v	v	v
	24V loop power source	v	v	v
	Simulate Transmitter	v	v	v
	RS232	v	v	v
	Storage	v	v	v
	*Pressure modules	�	v	v
	HART Ability	�	�	v

Accesorii standard

10V/220v external power adapter 1pc.
Chargeable Li-ion Battery 1pc.
Test Leads 6pc.
Short Circuit Cable 2pc.

Optiuni recomandate

CDP External Pressure Module
9060 Pressure connection Cable
9050 USB to RS232 (DB-9 Male) adapter
9080 Cold junction compensation kits
9712 Spare chargeable Li-ion battery for multifunction calibrator
9816 110V/220V external power adapter for multifunction calibrator
9906 Carrying case for multifunction calibrator
9816 Task Management Software for MF

External Pressure Modules CDP

Pressure Range	Type	Accuracy
-1 ~0 bar 0~0.7bar 0~1bar 0~2bar 0~7bar 0~20bar 0~30bar 0~70bar	G	0.05%FS
0~140bar 0~200bar 0~300bar	SG	0.05%FS
0~700bar	SG	0.05%FS
-1 ~0 bar 0~0.7bar 0~1bar	A	0.02%FS
0~2bar 0~7bar 0~20bar 0~30bar 0~70bar 0~140bar 0~200bar 0~300bar 0~700bar	A	0.05%FS

Remark:

G: Gauge pressure

SG:sealed gauge pressure

A: absolute pressure

The other pressure ranges can be customized

Alte produse CONST

Brand: ConST

SOLUTIE PORTABILA CALIBRARE HIDRAULICA PRESIUNE CONST

• portable gauge and transmitter calibration system that is very conveniently use on-site
• compact, easily operation, reduces calculations errors and has a 0.02% full scales accuracy
• up to 9000PSI (600 bar)
• weather-proof kitbag that can protect instruments well

Brand: ConST

CALIBRATOR DE PROCES MULTIFUNCTIONAL CONST317

• Multifunction Process Calibrator
• Measure: mV, V, mA, Hz, Pulse, O, on-off, RC*4, RTD*8
• Source: mV, V, mA, Hz, Pulse, O, on-off, RC*4, RTD*8
• Task Management, Ramp, Step, 24V loop power source
• Connect to external pressure modules

Brand: ConST

MANOMETRU DIGITAL DE PRECIZIE MASURA PRESIUNI CONST211

• Differential pressure: down to 0.6mbar (6mmH2O)
• Gauge pressure: up to 2500bar (37500psi)
• Long working time: 6,000 hours
• Large, easy-to-read display with 5 digit resolution
• Bar graph for quick visual and % pressure indication
• Measuring Speed : up to 10 times/s

Brand: ConST

POMPA HIDRAULICA CALIBRARI PRESIUNI INALTE -90%~ 2500 BAR CONST186

• Pressure: -90%~ 2500 bar
• Oil media
• Durable and Minimal Maintenance
• Easy-to-use
• Extremely low leakage

Brand: ConST

POMPA PNEUMATICA CALIBRARE PRESIUNI -95%~ 40 BAR CONST117

• Pressure: -95%~ 40bar
• Pressure resolution: 0.1mbar (10Pa)
• Size: 315mm *198mm * 140 mm Weight:3.0 kg
• dual pressure source with the ability to easily adjust and stabilize
• Ideal pressure source for big cavity pressure gauge User friendly design

Brand: ConST

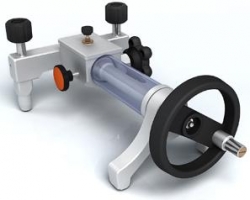

POMPA HIDRAULICA CALIBRARE PRESIUNI -85%~ 400BAR CONST131
