Great handheld unit to test PC and Mac monitors. The model 1275 is ideal for the field or the service bench. Small, portable and very effective, the 1275 generates crosshatch, dots, color bars and raster patterns in green, blue, red, black and white.

CGA, VGA, SVGA
Standard DB 9, DB 15 and DB 15 Hi res mini connectors

Alte produse BK PRECISION

SURSA LINIARA PROGRAMABILA CURENT CONTINUU BK-PRECISION 915X

• Model 9150: 0-5.2V, 0-60A
• Model 9151: 0-20V, 0-27A
• Model 9152: 0-30V, 0-18A
• Model 9153: 0-60V, 0-9A

MILIOHMMETRU DIGITAL PORTABIL MASURARE REZISTENTE MICI BK PRECISION 310

• 0..2000 Ohm in 5 ranges
• 5 ranges with 100µ ohm max resolution
• Four wire Kelvin lead measurements
• Over-voltage and over-temperature protection
• Water resistant case with shoulder strap
• Auto Power Off

SURSA DE CURENT ALTERNATIV PROGRAMABILA 1500VA BK PRECISION 1657

• Low distortion sine-wave output with programmable frequency and voltage
• Two selectable output voltage ranges of 135 VAC or 270 VAC
• Output frequency adjustable from 45 Hz to 450 Hz in 0.01 Hz steps
• 0.1 V settable resolution
• 50/60 Hz Margin testing
• 400 Hz Testing for avionics equipment

SURSA LINIARA PROGRAMABILA CURENT CONTINUU BK-PRECISION XLN

• XLN3640: 0-36V, 0-40A
• XLN6024: 0-60V, 0-24A
• XLN8018: 0-80V, 0-18A
• XLN10014: 0-100V, 0-14.4A
• 1.44 kW Programmable DC Power Supplies
• Compact, high density, 1U package

SURSA DC PROGRAMABILA USB BK-PRECISION 917X/918X

• Model 9171: 0-10V/0-10A, 0-20V/0-5A
• Model 9172: 0-35V/0-3A, 0-70A/0-1.5A
• Model 9173: 2 x 0-10V/0-10A, 2 x 0-20V/0-5A
• Model 9174: 2 x 0-35V/0-3A, 2 x 0-70V/0-1.5A
• Model 9181: 0-18V/0-8A, 0-36V/0-4A
• Model 9182: 0-10V/0-20A, 0-20V/0-10A
• Model 9183: 0-35V/0-6A, 0-70V/0-3A
• Model 9184: 0-100V/0-2A, 0-200V/0-1A
• Model 9185: 0-400V/0-0.5A, 0-600V/0-0.35A

GENERATOR SEMNAL VIDEO TESTARE MONITOR VIDEO PC VGA SVGA RGB BK PRECISION 1280B

• Designed to test (burn-in) one to four monitors
• Full color, green, blue, red, black and white
• PC and Mac Monitors
• 16 Monitor Types/Resolution Selections
• Displays Color Bar, Cross Hatch, Dot, Raster and Window patterns
• VGA, SVGA, RGB, HV,V & Four DB 15 (Rear panel) for multiple monitor burn in

TESTER PORTABIL CAPACITATE ACUMULATORI 12V BK PRECISION 600

• Measures both No Load Voltage and Battery Capacity
• Displays storage capacity of 12V Lead Acid Batteries as a percentage
• Great tool for testing back up batteries for UPS, Security, Emergency Flood Light systems
• Ideal for Automotive, UPS Maintenance, and Telecommunication applications
• Powered by Battery Under Test
• Settable Ah ranges: 7, 12, 24, 42, 65, & 100
• Max input volt. 20V

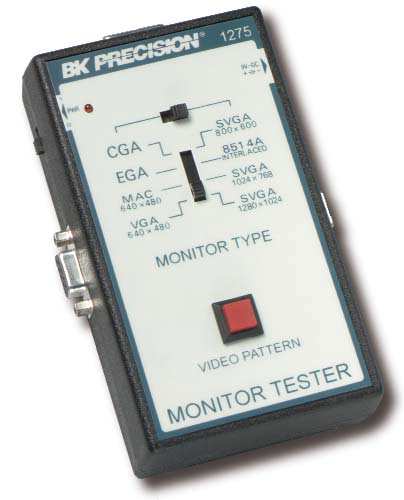

TESTER MONITOARE VIDEO VGA, CGA, SVGA BK PRECISION 1275

• CGA, VGA, SVGA
• Standard DB 9, DB 15 and DB 15 Hi res mini connectors
• test PC and Mac monitors
• ideal for the field or the service bench
• Small, portable and very effective
• generates crosshatch, dots, color bars and raster patterns in green, blue, red, black and white

GENERATOR SEMNAL VIDEO HDTV TESTARE MONITOARE LCD TFT CRT PLASMA BK PRECISION 1253

• HDTV test pattern generator that delivers accurate test patterns
• Plasma, LCD, TFT, CRT, DLP, GLV and OLED digital display testing
• 1920 x 1080 30i, 1280 x 720 60p, 704 x 480 60p, NTSC, PAL & SECAM formats
• Overscan DVD Aspect Ratio pattern
• High-quality BNC to RCA interface cable included

TESTER PORTABIL CAPACITATE BATERII 6V SI 12V BK PRECISION 601

• Works with 6V and 12V lead acid batteries
• Settable Ah from 1 to 100 in 1Ah steps (works best on batteries from 5 to 99Ah)
• Powered by the battery being tested
