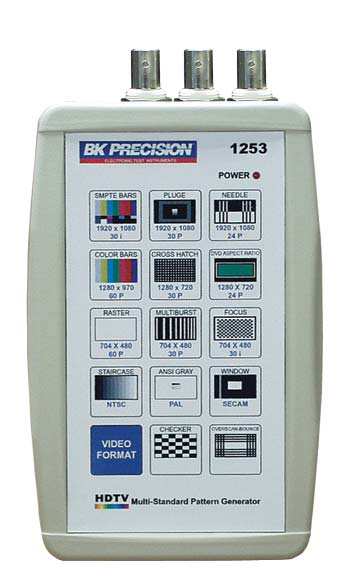

Generator semnal video HDTV testare monitoare LCD TFT CRT Plasma BK Precision 1253

Cod: BK Precision 1253




Brosura produs PDF, 0.05 Mb

Descriere

B&K Precision's model 1253 is an affordable HDTV test pattern generator that delivers accurate test patterns for the testing of the most common HDTV displays including Plasma, LCD, TFT, CRT, DLP, GLV and OLED digital display products. The 1253 can display from its HDTV Component (YPbPr) outputs fourteen of the most useful patterns for twelve of the most commonly used video formats (S-Video output patterns provide luminance only). The 1253 displays the most popular formats including 1920 x 1080 30i, 1280 x 720 60p, 704 x 480 60p, NTSC, PAL & SECAM. A unique feature of the 1253 is the Overscan DVD Aspect Ratio pattern. This feature covers the most commonly use aspect ratios used for all movies recorded to DVD media.

The 1253 is a must for TV repair engineers or technicians who test and calibrate digital televisions, Video Engineers to test and maintain studio equipment or Home Theater Installation Technicians to fine-tune the picture quality of digital televisions.



  • Made in the U.S.A.
  • Lightweight and portable
  • Ideal for on-the-bench and in-the-field testing
  • High-quality BNC to RCA interface cable included
  • LC 28A Carrying Case included
  • One year warranty
