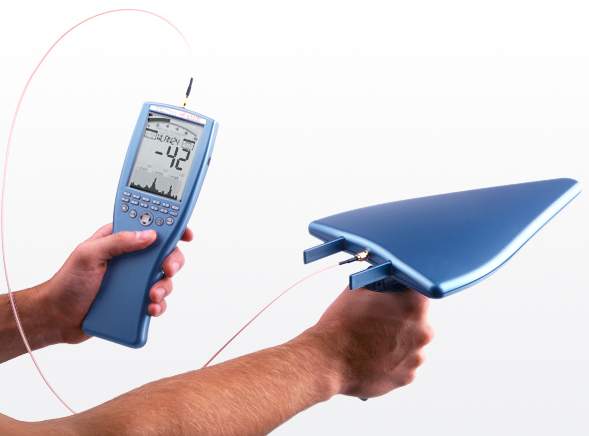

Analizor spectru RF 10MHz..8GHz Aaronia Spectran HF6080

Cod: Aaronia Spectran HF6080

Brosura produs

PDF, 0.7 Mb

Descriere

Frequency range: 10MHz to 8GHz
DANL: -145dBm(1Hz)
DANL with Preamp: -160dBm(1Hz)
Max. power at RF input: +10dBm
Lowest sample time: 10mS
Resolution (RBW): 1kHz to 50MHz
Units: dBm, dBµV, V/m, A/m, W/m²(dBµV/m, W/cm² etc. via PC software)
Detectors: RMS, Min/Max
Demodulator: AM, FM, PM
Input: 50 Ohm SMA RF-input (f)
Accuracy: +/- 2dB (typ.)
Interface: USB 2.0/1.1
Dimensions (L/W/D): 250x86x27 mm
Weight: 430gr
Warranty: 10 years

Highlights:

Very small size and low weight
Exposure limit calculation and display according to DIN/VDE 0848
Up to 100x faster sample time as V3 units
Up to 70dB higher sensitivity as V3 units
Low noise preamplifier (option)
14Bit Dual-ADC
DDC Hardware-Filter
150 MIPS DSP (CPU)
Data Logger (64K), expandable to 1MB (Option 001)
Enhanced and much sharper LCD display (compared to V3 units)
Simultaneously displays frequency and signal strength
Real-time remote control via USB
High resolution multifunction LCD
Vector (I/Q) measurement
DECT & TimeSlot analyzer
Real-time Peak Power Detector (option)
Hold function
Very light EMC directional antenna HyperLOG 6080 included
Free MAC OS, Linux and Windows software

Examples for possible analysis and measurements within frequency range (10MHz - 8GHz):

Radio & TV
Tetra/BOS
ISM434
LTE800
ISM868
GSM900
GSM1800
GSM1900
DECT
UMTS
WLAN
Microwave
Bluetooth
WiFi
LTE2.6
WiMAX
Directional Radio
5GHz WLAN

etc.

Accesorii standard

Handheld Spectrum Analyser HF-6080 V4
HyperLOG 6080 EMC measurement antenna
Pistol grip with mini tripod function
1m SMA cable
SMA adapter (m/m)
SMA tool
SPECTRAN 1300mAh rechargeable battery (integrated)
Battery charger and power supply incl. international adapter set
Large aluminum carrying case with foam protection
Detailed English manual (on CD)
Analyzer software for MAC OS, Linux and Windows (on CD)
