Fully automatic airtightness check of the building envelope
Woehler Blower Door measuring device
The new Blower Door Measuring Device Wöhler BC 600 Blower Check can do everything thanks to its large air flow range. The high-precision sensor technology ensures that the required measuring accuracy is reliably maintained.
Completely on site
Complete measurement, evaluation and documentation
Innovative and time-saving installation concept
For windows and doors
Fully automatic Blower Door measurement
Compliant with standards
No turning of the device necessary
Negative and positive pressure measurements
Protective pressure measurement of small and large buildings
The Wöhler BC 600 Blower Check Multimode enables rapid protective pressure measurement of buildings. The measurement can be carried out with up to four Wöhler BC 600 Blower Checks simultaneously and automatically in accordance with standards. Each Wöhler BC 600 Blower Check is assigned the respective measurement task with a click in the app.
Innovative and time-saving installation concept
Attach sealing canvas to the fan unit.
Clamp telescopic bar of the fan unit into the window or door frame.
Fix sealing canvas with special clamps to the window or door frame.
Blower Door measurement via Smartphone and Tablet
The free Wöhler BC 600 app allows you to control your Blower Check easily from your end device - smartphone or tablet. The remote control via app provides freedom of movement and also offers the possibility to conveniently store all your measurement data in a measurement protocol and send it directly to your customer.

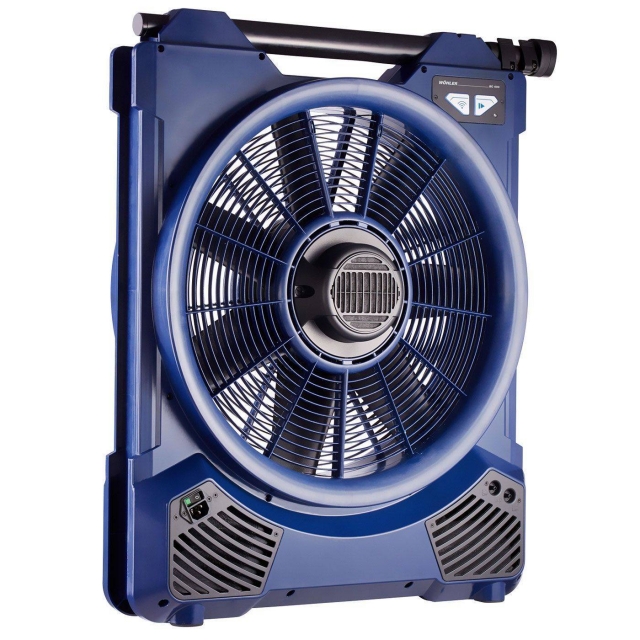

Wöhler BC 600Blower Check
The Wöhler BC 600 Blower Check allows for safe and efficient measurements. Thanks to state-of-the-art technology, you can trust in its accuracy. The Wöhler Blower Check App will guide you through the measurement process, ensuring precise results. Say goodbye to the hassle of changing orifices and converting the blower. Whether you're using one device in single mode or up to four devices in multimode*, it doesn't matter.
Installing one or more devices, along with the sealing film, is a breeze with the perfected clamp system. Even in challenging installation situations, you can securely attach them to windows or doors in just a few simple steps. If the door frame is missing, no worries! The film can be easily attached to the optional installation frame. With the fan automatically changing the direction of flow, you can carry out negative and positive pressure measurements one after the other, saving you time.
Control the system effortlessly through the Wöhler Blower Check App, available on Android, iOS, or Windows 10. All measurement data is transferred via WiFi, ensuring seamless connectivity. The app stores the measurement sequences specified in relevant standards, such as DIN EN ISO 9972 and DIN EN 13829. This allows the Wöhler BC 600 Blower Check to perform fully automated, standard-compliant measurements with speed and accuracy. This feature is especially beneficial for large buildings that require multiple devices.
If needed, you can still intervene manually at any time. Simply update the app to ensure long-term standard conformity after any changes to the standard. The app also conveniently stores all customer and measurement data, providing you with easy access to all the necessary information.
Advantages
Fully automatic measuring sequence in accordance with e.g. DIN EN ISO 9972 or DIN EN 13829
Protective pressure measurement of small and large buildings
Automatic change of direction of the fan for negative and positive pressure measurements, no conversion of the fan necessary
Volume flow measurement range from 15 - 24,000 m³/h (with 4 devices) without changing the orifice plate
Time-saving installation concept - no additional installation frame required for standard installation situations
Installation in window frames means that the front door remains part of the leak test
Integrated measurements of temperature, absolute pressure and relative humidity
Application
Blower door measurement to determine the air permeability of the building envelope in accordance with EnEV 2014 (German Energy Saving Ordinance) and GEG 2020 (German Building Energy Act) and in accordance with
DIN EN ISO 9972 or DIN EN 13829 from passive house residential buildings to non-residential buildings
Leak detection on the building envelope
Proof of construction quality
Protective pressure measurement according to DIN EN ISO 9972
Functionality
Complete measurement, evaluation and documentation on site
Installation in doors and windows with special installation concept for easy handling, even with two Wöhler BC 600s on top of each other
Fully automatic standardised measuring procedure
Positive and negative pressure measurement series at the touch of a button without turning the device
Leak detection with intuitive operation directly on the device
Large volumetric flow measuring range 15 m³/h to 24,000 m³/h (with 4 devices) without changing additional panels
Simple protective pressure measurements for multiple sections with just one installation
Safety / Reliability
Large measuring range
Precise measurement with configurable measurement protocol
Update possible at any time with just a few clicks
Tools Application
Blower door measurement to determine the air permeability of the building envelope in accordance with EnEV 2014 (German Energy Saving Ordinance) and GEG 2020 (German Building Energy Act) and in accordance with
DIN EN ISO 9972 or DIN EN 13829 from passive house residential buildings to non-residential buildings
Leak detection on the building envelope
Proof of construction quality
Protective pressure measurement according to DIN EN ISO 9972
Cloud-download-alt Data management
Data transfer to the app via WiFi
Save all customer and measurement data directly in the app
Wöhler Blower Check App
Only one smartphone, tablet or notebook with the app is required to control up to 4 Wöhler BC 600s simultaneously for all measurements.
Platform-independent - compatible with Android, iOS or Windows 10
Measurement procedure complies with the currently valid standards
Simple creation of a test report with certificate in accordance with DIN EN ISO 9972 or DIN EN 13829 on site
Conveniently send test report by e-mail or messenger service
Video WOHLER BC600 BLOWER DOOR
Standard accessories
Wöhler BC 600 Blower Check Singlemode Article no. 6440 J
Wöhler BC 600 Blower Check Multimode Article no. 10228 J
Scope of delivery
Wöhler BC 600 Blower Check, Hose Capillaries with Throwing
Weight (2 pieces), Clamps 220 mm (18 pieces), Clamps 120
mm (4 pieces), Plastic case for clamps, Telescopic rod, Sealing
canvas 1.8 x 2.8 m, Cover hood, Connection cable 2.5 m,
Transport bag
Recommended options
ccessory-Set Multimode
Hose Set Multimode (2 pieces), Wifi-Repeater Multimode, Sealing Cover Multimode with Tension Straps
10183 J
Professional Sealing Set
each 2 sealing plugs for water pipes( Ø40 mm, Ø75 mm, Ø125 mm and Ø160 mm), each 4 sealing plugs (Ø50 mm
and Ø110 mm), each 1 sealing bladder (Ø70 mm – Ø150 mm), 1 roll transparent tape 66 m, 1 roll textile tape 50 m,
hand pump and valve set, platic case MIDI 4810 J
Additional Installation Frame Door
Minimum fitting dimensions: 0.80 x 1.35 m (W x H)
Maximum fitting dimensions: 1.25 x 2.30 m (W x H)
incl. transport bag 5675 J
Additional Installation Frame Door & Win
Door and Window Frame Wöhler BC 600
Minimum fitting dimensions: 0.80 x 0.90 m (W x H)
Maximum fitting dimensions: 1.25 x 2.30 m (W x H)
incl. transport bag
5671 J
Wöhler S 100 Smoke Stick
Wöhler S 100 Smoke Stick in protective bag, 2 smoke tanks, 1,800 mAh lithium-ion battery, USB-C charging cable,
hose, 2 diffusers
12174 A
Wöhler TA 200 Hot Wire Anemometer
Wöhler TA 200 Hot Wire Anemometer, carrying case, batteries
• strong negative pressure to extract dirt and dust particles directly during the cleaning process
• Simultaneous connection of 2 hoses possible
• Easy to transport and simple set up
• Hose extension for hard to reach vents

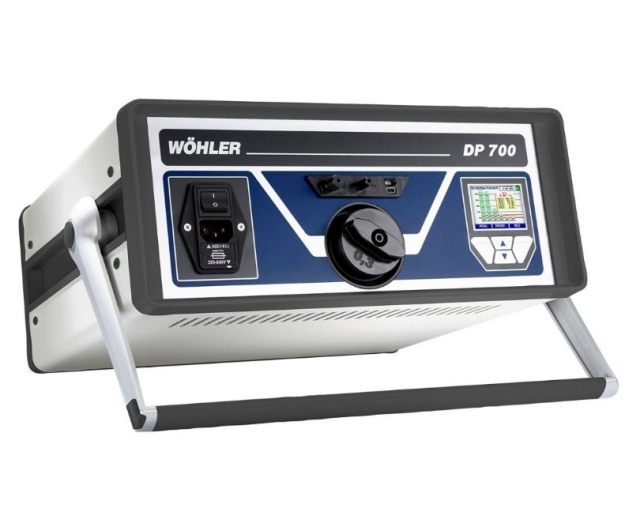

• Leakage tests in large air leakage ranges: From individual components through to complete systems consisting of several 100 m²
• Leakage tests on air-conditioning units, switchgear cabinets, climatic test cabinets, heat exchangers, cabinets for clean room technology and other housings
• Leakage testing of rooms
• On-site and laboratory measurements on structural components (e.g. OSB boards, windows)

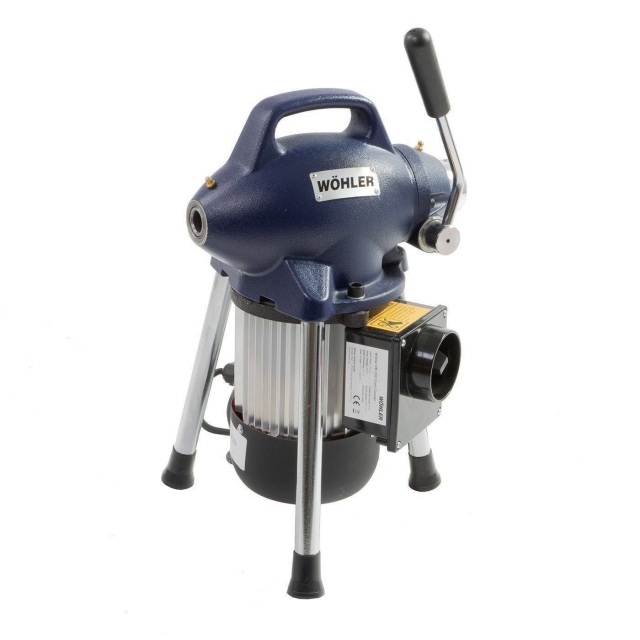

• CLEANING OF WASTE WATER PIPES
• from Ø 40 mm to Ø 100 mm
• CABLE LENGTH can be set by the user with a handy key
• PROTECTIVE HOSE for neat cleaning and protection of home furnishings
• Adapter for safe use of the cable
• Fully automatic airtightness check of the building envelope
• Completely on site
• Complete measurement, evaluation and documentation
• Innovative and time-saving installation concept
• For windows and doors
• Fully automatic Blower Door measurement
• Compliant with standards
• No turning of the device necessary
• Negative and positive pressure measurements
• Android iOS
• 60 or 40 m camera push rod
• For long distances or multiple changes of direction
• Self-leveling + HD quality
• Shake-free, crystal-clear images
• 360° rotation*
• Reaches every corner of the pipe's inner wall
• 180° pan function*
• For precise damage location, even in junctions
• Ø 40 mm camera head (detachable) or Ø 26 mm camera head (detachable) • CCS-image technology (Cristal Clear Screen) • Optics pan 360° and tilt 180° - ensure even the smallest damage does not remain hidden from your view • Save pictures and videos on a 4 GB SD card (Wöhler VIS 350) • 30m Push rod Ø 6 mm
• 5" touch display Shield-check
• 48 months warranty 

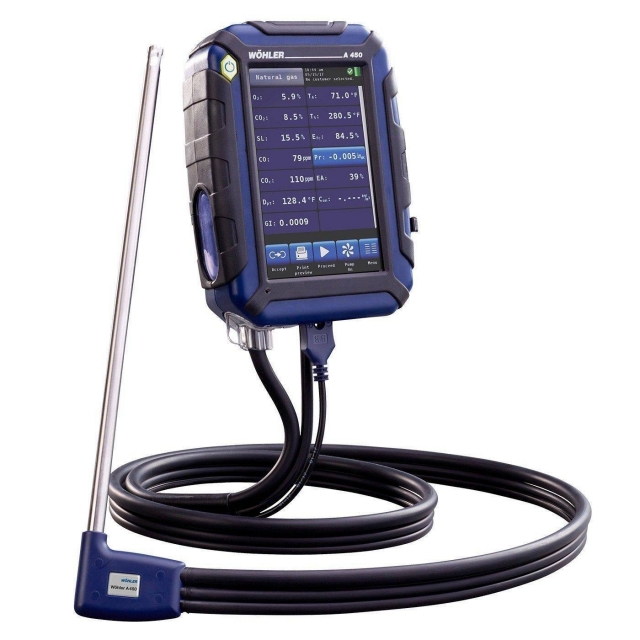

• CO-Sensor up to 100,000 ppm 1
• Printout on site
• Burner setting aid USB-DRIVE
• USB wifi
• WiFi
• PC software laptop-code
• Flue Gas Analysis App

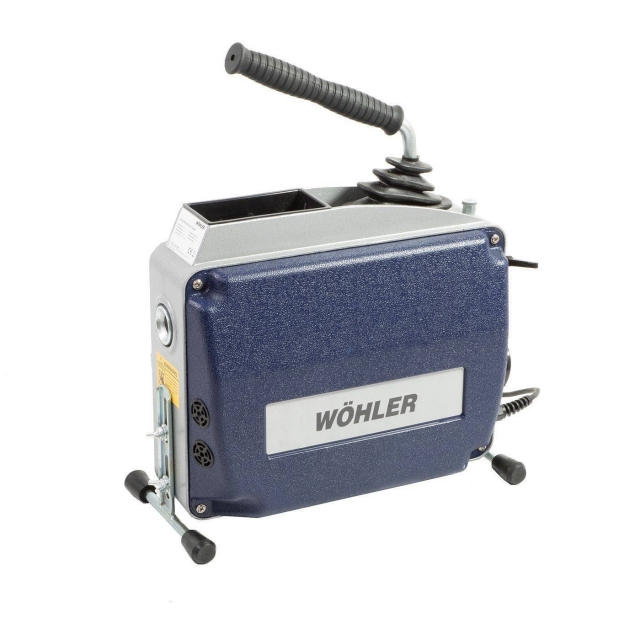

• CLEANING OF WASTE WATER PIPES from Ø 40 mm to Ø 150 mm
• CABLE LENGTH can be set by the user with a handy key
• PROTECTIVE HOSE for neat cleaning and protection of home furnishings
• Adapter for safe use of the cable

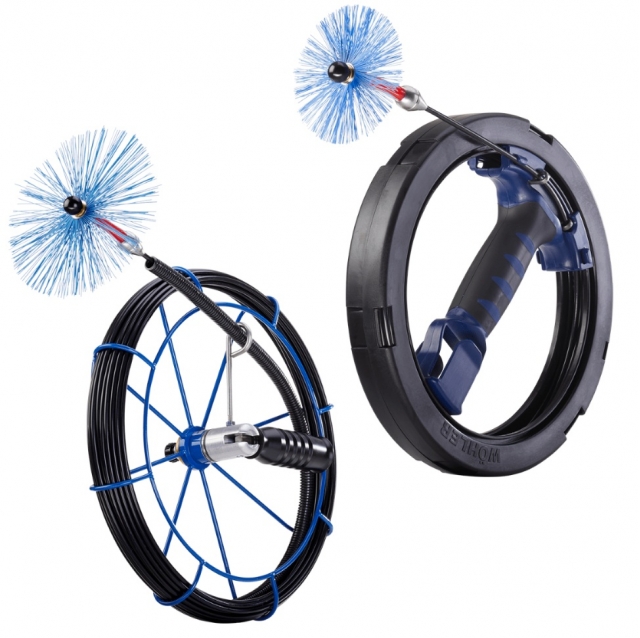

• Appropriate for small, round ventilation pipes up to 125 mm Ø.
• Backwards rotating helicopter nozzle causes a forward moving
• Easy operation
• Cleaning of pipes up to 7 m possible

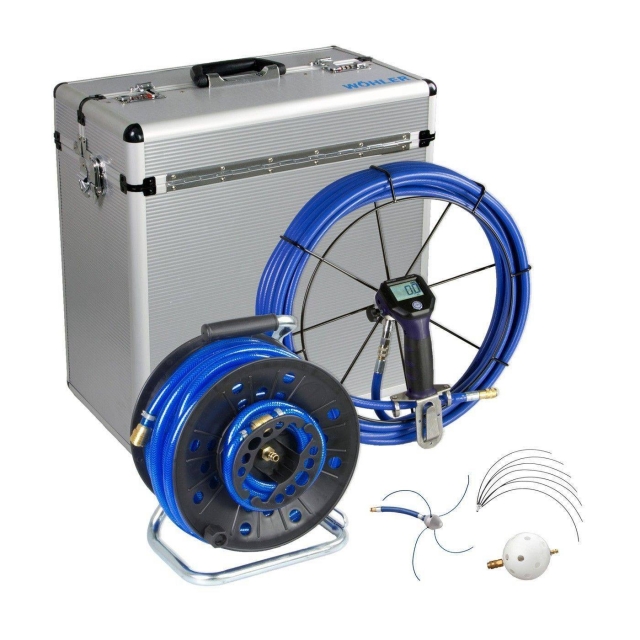

• Professional Set
