Cable Fault Locators | SEBAKMT

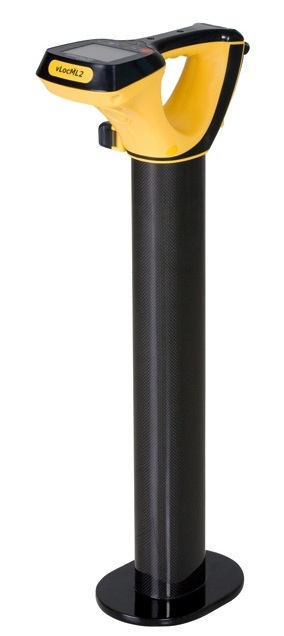

Seba KMT vLocML2 Pipeline Location and Tracing for Underground Pipes and Cables

Code: Seba-KMT Vivax vLocML2

Datasheet

PDF, 0.56 Mb

Description

vLocML2

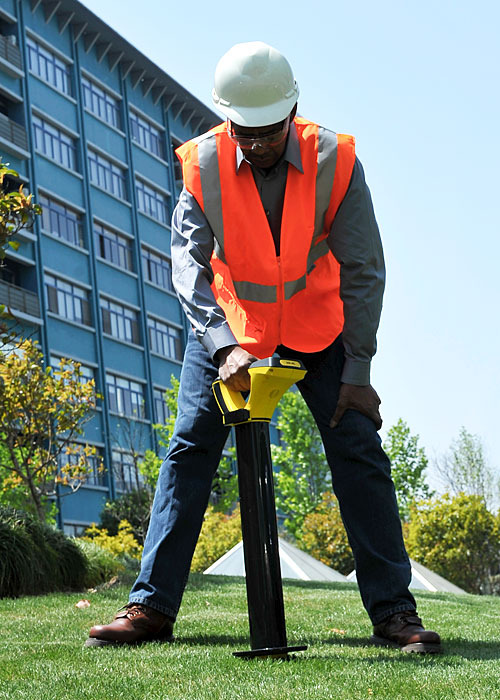

The vLocML provides the ability to line locate (only), marker locate (only), or to do both simultaneously. Search for individual marker types (power, gas, water, etc) or search for all marker types.

Most combined marker locators are dramatically heavier than a standard locator, and often have heavy clumsy fold down antennas. The carbon fiber technology used by Vivax-Metrotech makes the vLocML a light ergonomic product.

vLocML2

The vLocML2 includes all functions of the vLocPro2 and

additionally:

Location of passive markers which are used by utility

companies for labelling underground lines

Colour-coded display of the signal strength

Specifi c line location mode

Specifi c marker location mode

Mode for simultaneous location of lines and markers

Standard accessories

Recommended options
