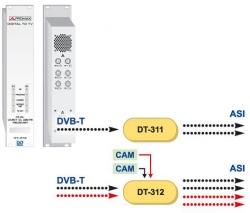

Digital Terrestrial Receiver DVB-T -> DVB-ASI Transport Stream Promax DT-312

Code: Promax DT-312




Datasheet PDF, 0.16 Mb

Description

Les modules DT-312 sont des modulateurs COFDM compatibles avec le standard DVB-T (TNT). Ils permettent de recevoir un multiplex TNT et en extraire le flux numérique sous dorme de TS-ASI.

Chacun des deux récepteurs contenus dans le DT-312 possède deux sorties TS-ASI identiques.




RF INPUT
  Connector

2 DVB-T independent inputs
F-Type female, Impedance 75 ?

TS OUTPUT
  Connector

2 independent double DVB-ASI outputs
BNC female, Impedance 75 ?

CONFIGURATION AND
POWER SUPPLY

Through the DT-800 Control and Power module.

Control can be made remotely from a PC



Recommended options

DT-800B

Control unit and power supply.

DT-802

Control unit and redundant power supply modules.

DT-900

Rack and wall mounted structure.

DT-900B

Rack mounted structure.

DT-901

Empty module plates..

DT-902B

Power CAM modules for smart cards..

CC-043

Supply and control cable with 3 connexions for DT-800B (included)

CC-044

Supply and control cable with 4 connexions for DT-800B (included)

CC-143

Supply and control cable with 3 connexions for DT-802 (included)

CC-144

Supply and control cable with 4 connexions for DT-802 (included)

OP-XXX-V

Output in the range 170-650 MHz for modules with DVB-T..

OP-800-P

Option required to use DT-800B with 3 x DT-730 modules

OP-212-D

Dual independent output for DT-212B

OP-504-S

TS-ASI output option for DT-504B







RECEIVERS WITH ASI-TS OUTPUT

DT-302

Dual DVB-S/S2 receiver with CAM, ASI-TS output.

DT-312

Dual DVB-T receiver, ASI-TS output.

DT-324-M

IP receiver to ASI-TS output (MPTS).

DT-324-S

IP receiver to ASI-TS output (SPTS).







IP STREAMERS

DT-421-M

IP Streamer. ASI-TS inputs, IP output (MPTS)

DT-421-S

IP Streamer. ASI-TS inputs, IP output (SPTS)







COMBINERS - AMPLIFIERS

DT-700

4x1 quadruple DVB-T combiner .

DT-710

8 input DVB-T combiner with a 117 dBuV (+10 dBm) one

 single output.

DT-722

4 input DVB-T combiner with a 129 dBuV / 250 mW (+22 dBm)

 one single output.

DT-730

DVB-T amplifier with a 137 dBuV / 1 W (+30 dBm).

DT-610

Optical transmitter module

DT-620

Optical receiver module
