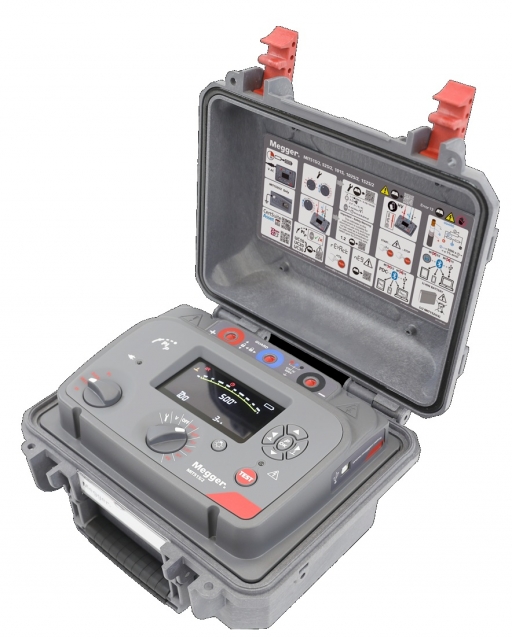

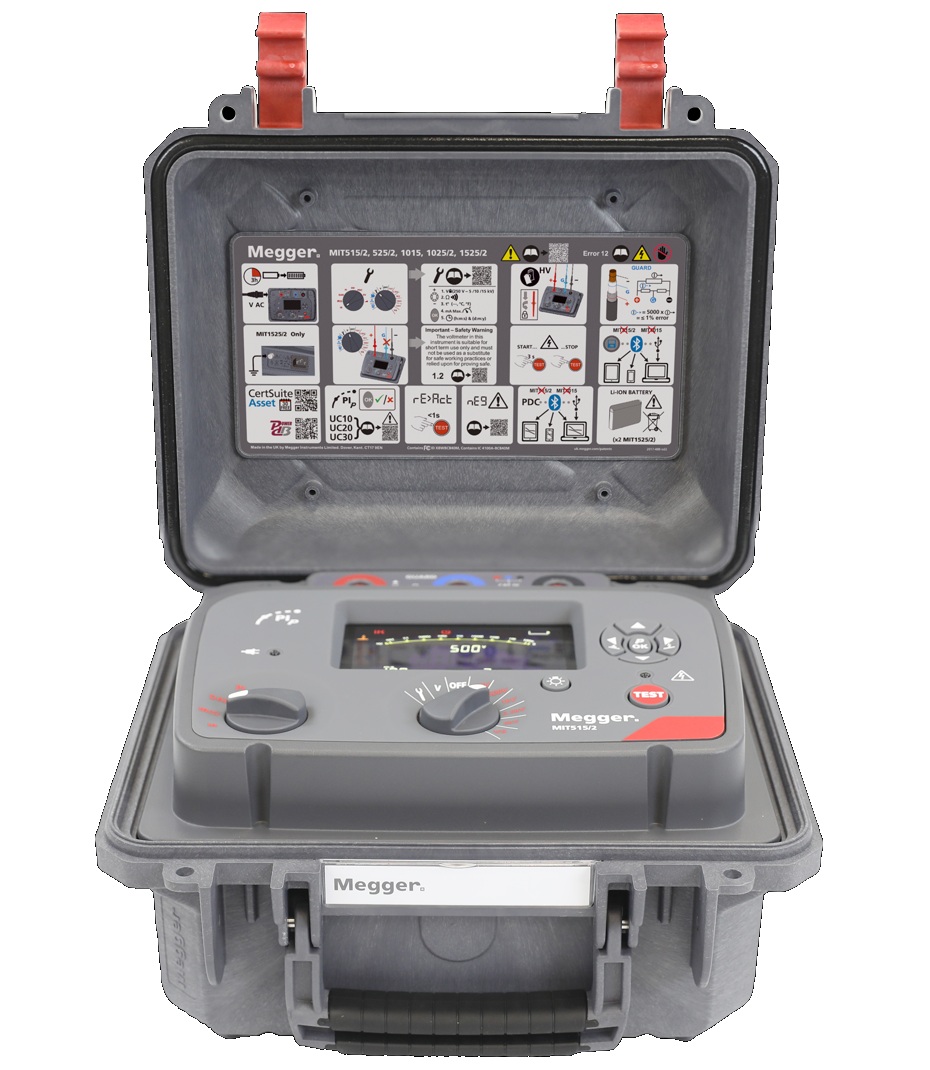

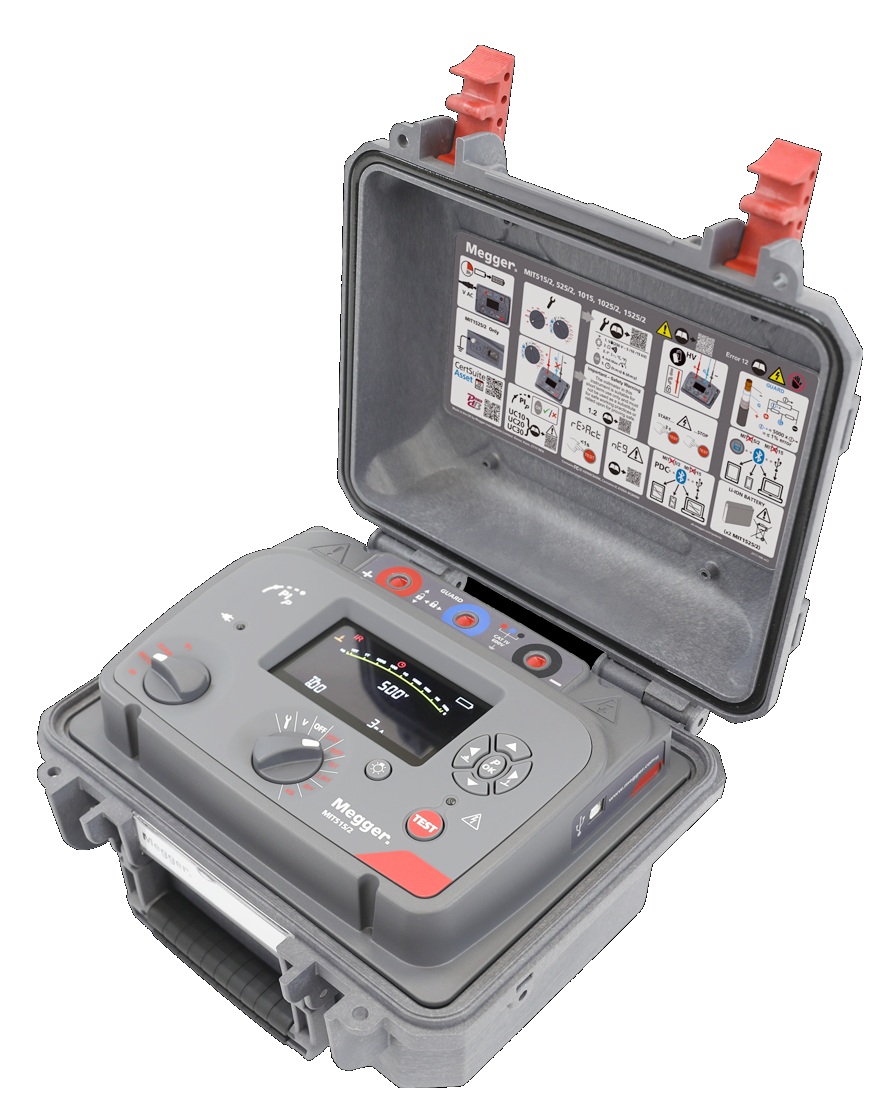

MEGGER MIT1525/2 15kV Advanced Insulation Resistance Megohmmeter

Code: MIT1525/2 MIT1525/2-EU 1016-100 ADVANCED




Datasheet PDF, 1.04 Mb


Description

  • Diagnostic testing with full test suite
  • PI Predictor™ cuts test time in half
  • Accurate testing with RE>Act™
  • Built-in storage and easy data export
  • Designed for safe testing in the field

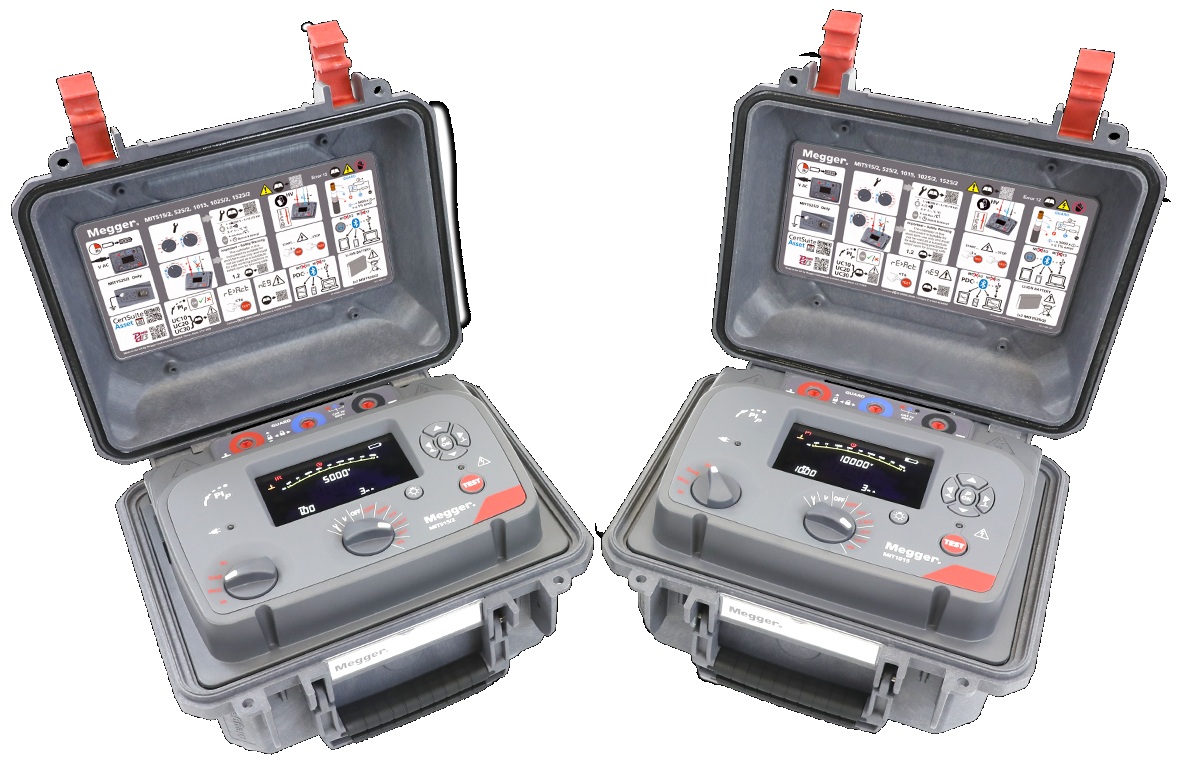

Advanced 5 kV, 10 kV and 15 kV insulation resistance testers
MIT525/2, MIT1025/2, MIT1525/2
Perform advanced insulation testing with PI Predictor™, RE>ActTM test mode, onboard storage, and easy result export to PowerDB or CertSuite.

About the product
The Megger Advanced range of 5 kV, 10 kV, and 15 kV insulation resistance testers is ideal for engineers and technicians performing insulation testing on transformers, motors, switchgear, and cables in environments up to 230 kV. These instruments support IR, DAR, PI, DD, SV, ramp, and PDC (with software), providing the diagnostic depth needed for condition assessment and maintenance planning.

Each model includes PI Predictor™ to speed up testing, internal memory for storing results, and optional Bluetooth® for exporting data to PowerDB or CertSuite — no manual recording required.

The new innovative patent applied RE>Act test mode allows the user to make accurate measurements by monitoring reabsorption current. This groundbreaking test mode can ensure reabsorption current does not result in incorrectly passing or failing insulation, helping to maintain safety. In addition, the test mode can be used to ensure dangerous return voltages to not occur.

Choose from three models — MIT525/2, MIT1025/2, and MIT1525/2 — based on your required test voltage. With 6 mA noise immunity and high-performance guard terminals, the Advanced range delivers reliable results where remote control and substation-level noise handling are not required.


Standard accessories

Description Part number
MIT525/2-UK ADVANCED 5kV IRT PIP 1016-084
MIT525/2-EU ADVANCED 5kV IRT PIP 1016-085
MIT525/2-US ADVANCED 5kV IRT PIP 1016-086
MIT525/2-AU ADVANCED 5kV IRT PIP 1016-087
MIT525/2-CN ADVANCED 5kV IRT PIP 1016-088
MIT525/2-BR ADVANCED 5kV IRT PIP 1016-622

MIT1025/2-UK ADVANCED 10kV IRT PIP 1016-094
MIT1025/2-EU ADVANCED 10kV IRT PIP 1016-095
MIT1025/2-US ADVANCED 10kV IRT PIP 1016-096
MIT1025/2-AU ADVANCED 10kV IRT PIP 1016-097
MIT1025/2-CN ADVANCED 10kV IRT PIP 1016-098
MIT1025/2-BR ADVANCED 10kV IRT PIP 1016-624

MIT1525/2-UK ADVANCED 15kV IRT PIP 1016-099
MIT1525/2-EU ADVANCED 15kV IRT PIP 1016-100
MIT1525/2-US ADVANCED 15kV IRT PIP 1016-101
MIT1525/2-AU ADVANCED 15kV IRT PIP 1016-102
MIT1525/2-CN ADVANCED 15kV IRT PIP 1016-103
MIT1525/2-BR ADVANCED 15kV IRT PIP 1016-625

Included accessories
Quick Start label
Power lead 1008-017
Screened USB cable with filters 25970-041
Lead set 3kV 3 x 3 m, with medium clips
(MIT525/2, MIT1025/2 only) 1008-022
Lead set HV 3 x 3 m, with medium and large clips
(MIT1025/2 only) 1002-534
Leadset 3 x 3 m, with large 15 kV insulated clips
(MIT1525/2 only) 1008-023


Recommended options

OPTIONAL TEST LEAD SETS

1 kV test lead sets (MIT525/2, MIT1025/2 only)
Fused test probe and clip lead set 1002-913
Control circuit test set 6220-822
1 kV test lead sets (MIT1525/2 only)
2 x 1.25 m Fused test lead set with probes and clips 1005-265
2 x 3 m Control circuit test lead set 1005-264

OPTIONAL HV TEST LEAD SETS

HV test leads sets (MIT525/2, MIT1025/2 only)
These test leads may also be supplied in non-standard lengths to suit
a particular application / requirement. Contact Megger
for a quotation, minimum order quantities may apply.
3 x 3 m with large clips (MIT1025/2 only) 1002-534
3 x 5 m with large insulated clips 1002-645
3 x 8 m with large insulated clips 1002-646
3 x 10 m with large insulated clips 1002-647
3 x 15 m with large insulated clips 1002-648
3 x 3 m with medium clips 1008-002
3 x 5 m with medium insulated clips 1002-641
3 x 8 m with medium insulated clips 1002-642
3 x 10 m with medium insulated clips 1002-643
3 x 15 m with medium insulated clips 1002-644
HV test lead sets (MIT1525/2 only)
3 x 3 m lead set, large size insulated clips 1008-023
3 x 5 m lead set, large size insulated clips 1005-259
3 x 10 m lead set, large size insulated clips 1005-260
3 x 15 m lead set, large size insulated clips 1005-261
3 x 3 m lead set, medium size insulated clips 1005-262
3 x 10 m lead set, medium size insulated clips 1005-263

Screened HV test lead sets (MIT525/2, MIT1025/2 only)
1 x 15 m, with 5 kV screened uninsulated small clips 6311-080
3 m, 10 kV screened uninsulated small clips 6220-834
10 m, 10 kV screened uninsulated small clips 6220-861
15 m, 10 kV screened uninsulated small clips 6220-833
Screened HV test lead sets (MIT1525/2 only)
3 m, 15 kV screened, large size insulated clips,
supplied in carry holdall 1005-266
10 m, 15 kV screened, large size insulated clips,
supplied in carry holdall 1005-267
15 m, 15 kV screened, large size insulated clips,
supplied in carry holdall 1005-268
20 m, 15 kV screened, large size insulated clips,
supplied in carry holdall 1005-269
Other
CB101 5 kV Calibration Box 6311-077
UKAS calibration certificate 1000-047
GILS1 EHV Guard interconnecting lead and strap kit 1011-357
GILS2 Advanced Guard interconnecting lead
and strap kit 1011-358
Transformer test kit 1015-158
