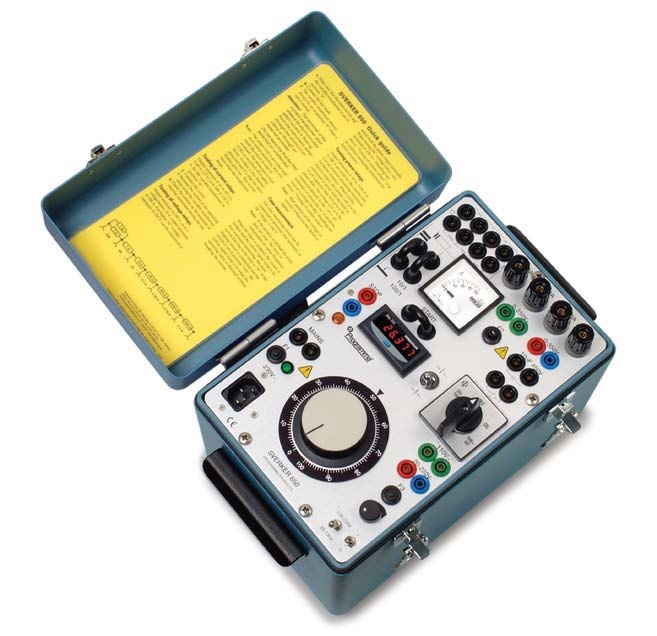

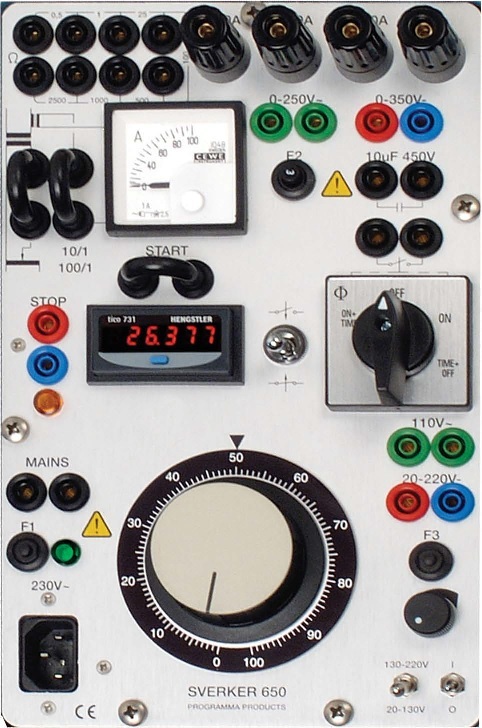

Megger SVERKER 650 Programma Single Phase Relay Tester

Code: Megger SVERKER 650 Programma SVERKER650 BA-12290




Datasheet PDF, 0.81 Mb


Description

• Designed for rugged field use
• 0 to 100 Amp output current
• Suitable for testing many different types of relays such as power, voltage
and current
• Easy to operate



The Sverker 650 testing unit, whose design incorporates benefits gleaned from many years of experience in field relay testing, enjoys a well-earned reputation for reliability and convenience. Compact and powerful, it provides all of the functions needed for secondary testing of almost all types of single-phase protection now available on the market.



Standard accessories

SVERKER 650

Incl. Test lead set GA-00030

Transport case GD-00010

115 V Mains voltage BA-11190

230 V Mains voltage BA-12290





Recommended options

Optional Accessories

ACA120

Variable output , 0-120 V AC BA-90040
