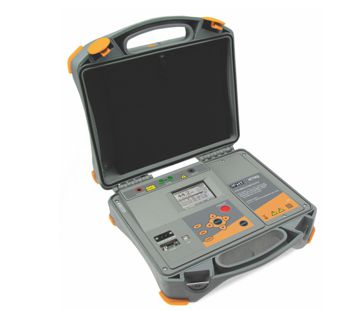

Professional Digital Insulation Megohmmeter 10Tohm 10kV HT Italia HT7052
OBSOLET PRODUCT ( * OUT OF USE )

Code: HT Italia HT7052




Datasheet PDF, 0.36 Mb

Description

  • Insulation resistance with test voltage from 500V to 10kVDC in steps of 25VDC
  • Measurement range up to 10Tohm
  • Programmable timer from 1s to 30min
  • Diagnostic test on materials (PI, DAR, DD)
  • Insulation resistance with "ramp" test
  • Withstanding test up to 10kVDC
  • DC/AC voltage up to 600V
  • Capacitance measurement of device under test
  • Automatic discharging of device under test
  • GUARD terminal for compensation of surface currents
  • LCD display with backlight
  • Internal memory for saving results
  • Recall saved results at display
  • RS-232 and USB interfaces for PC connection
  • Rechargeable internal battery


Standard accessories

  • Test lead red with tip, protection 10kV, 2m
  • Test lead (red/black), protection 10kV, 2m, 2 pcs
  • Alligator clip (red/black), protection 10kV, 2pcs
  • Guard test lead green
  • Guard alligator clip green
  • Mains cord
  • USB cable
  • RS-232 cable
  • "TeraView" software on CD-ROM
  • 6x1.2V rechargeable batteries NiMH type IEC LR20
  • User manual
  • ISO9000 calibration certificate
