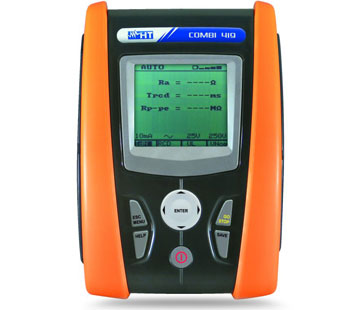

Multifunction Verifier for Testing Electrical and Civil Installation 1000V HT Italia Combi419/ Combi420
OBSOLET PRODUCT ( * OUT OF USE )

Code: 1000V HT Italia Combi419/ Combi420




Datasheet PDF, 0.55 Mb

Description

  • Continuity test with 200mA
  • Insulation with 50, 100, 250, 500, 1000VDC
  • Trip out time of RCDs type AC, A Standard and Selective
  • Trip out current of RCDs type AC, A Standard and Selective
  • Loop Impedance P-P, P-N, P-PE
  • Loop Impedance P-P, P-N, P-PE with high accuracy (0.1mOhm with IMP57 optional accessory)
  • Prospective short circuit current
  • Contact voltage
  • Global Earth Resistance without RCD tripping
  • Phase sequence indication
  • AUTO function: automatic sequence test of Global Earth Resistance + RDC test + Insulation
  • AC TRMS voltage and current
  • Active, Reactive, Apparent power and power factor on single phase system
  • Harmonics voltage/current up the 49th and THD% on single phase system
  • Environmental parameters measure (°C, °F, %RH, Lux, sound level)
  • Measure with remote probe (PR400 optional accessory)
  • Leakage current
  • Data HOLD
  • Contextual help at display
  • Internal memory
  • Optical-USB interface with PC connection


Standard accessories

  • C2033X: cable 3 wires with Shuko plug
  • UNIVERSALKIT: set of 3 cable + 3 alligator clips + 1 test lead
  • BORSA75N: carrying bag
  • Calibration Certificate ISO9000
  • User manual on CD-ROM
  • Quick reference guide


Recommended options

  • HT96U: leakage current clamp 1-100-1000A/1V - 54mm max diameter
  • TOPVIEW2006: Windows software + optical/USB cable
  • IMP57: accessory for loop impedance with high resolution
  • PR400: remote probe for test activation
  • HT52/05: temperature/humidity probe
  • HT53/05: illuminance probe
