Continuity test of earth conductor with 200mA
Insulation resistance up to 1000VDC
Trip-out time of RCDs type A, AC, general and selective
Trip-out current of RCDs type A, AC, general and selective
Loop/Line impedance P-P, P-N, P-PE also at high resolution with IMP57 optional accessory
Prospective short circuit current
Global earth resistance without RCD tripping
2-wire and 3-wire earth resistance with rods
Ground resistivity
Contact voltage
Leakage current with optional HT96U transducer clamp
Phase sequence indication
TRMS measurement and recording electrical parameters in Single phase systems
Harmonics voltage and current up to 49° order plus THD%
Voltage anomalies (sags, surges) with 10ms resolution
5 predefined selectable recordings
Temperature/humidity measurement and recording
Illuminance measurement and recording
Sound level type 1 measurement and recording
Memory for saving results
RS232 output for PC connection
AutopowerOFF
Backlight

Standard accessories

C2033X: 3-wires cable with Shuko plug
KITGSC5: set 4 cables + 4 alligator clips + 2 test leads
KITTERRNE: set 4 cables + 4 earth rods
TOPVIEW2006: Windows software + optical/USB cable C2006
BORSA2050: carrying case
ISO9000 calibration certificate
User manual

Recommended options

HT52/05: temperature/humidity probe
HT53/05: illuminance probe
CN0050: kit of strap to hang the meter on neck
A0050: power adapter 230V/50Hz
A0053: power adapter 120V/60Hz
HT96U: clamp 1/100/1000A-1V for leakage currents Ø 54mm
HP30C2: clamp 200-2000A Ø 70mm
HTFLEX33D: flexible clamp 1000/3000AAC, Ø 154mm
IMP57 accessory for high resolution impedance measurements
1066-IECN: connector for banana cable 4mm, black
1066-IECR: connector for banana cable 4mm, red

More products HT ITALIA

MULTIFUNCTION PORTABLE MULTIMETER FOR EARTH RESISTANCE MEASUREMENT HT ITALIA M73

• Trip out time measure on AC Standard RCD's
• Trip out current: 30, 30x5, 100, 300mA
• Global Earth Resistance with 0.1Ohm resolution
• Global Earth Resistance without RCD's tripping
• DC Voltage
• AC TRMS Voltage
• Automatic detection of AC/DC signals

PROFESSIONAL MULTIMETER CABLE VERIFIER FOR LAN VDE CHECKING HT ITALIA M75

• DC Voltage
• AC TRMS Voltage
• Continuity test of protective conductors with 200mA
• Insulation Resistance measurement with 500VDC
• Global Earth Resistance without RCD tripping
• Test executed on twisted pairs cables UTP and STP with RJ45 connector
• Quickly selection of cables pairs

PVCHECKS-ONE COMMISSIONING TESTER FOR PV SYSTEM UP TO 1000V / 30A

• Continuity of protective circuit with 200mA
• Polarity
• Open circuit voltage Voc of PV modules and strings 1000V
• Short circuit current Isc on PV modules and strings 30A
• PV string/field insulation with test voltage 250, 500, 1000VDC
• Measurement of polarization index P.I.
• Dielectric absorption ratio D.A.R
• GFL function to locate the fault position in the string
• Measurement category CAT III 1000V
• OPT function for insulation testing on PV strings in the presence of MLPE

SAFETY TESTER FOR PHOTOVOLTAIC SYSTEMS HT PVCHECK

• Safety test of PV installation
• Continuity test on protective conductors with 200mA
• Insulation test with test voltage of 250, 500, 1000VDC
• DC voltage
• DC current
• DC Power
• Solar irradiation [W/m2] with reference cell

HT SOLAR I-VE MULTIFUNCTION I-V CURVE TRACER FOR PHOTOVOLTAIC SYSTEMS

• 1500V Multifunction I-V Curve Tracer for maintenance and efficiency tests on single-phase installations.
• Measurement of efficiency of a single-phase photovoltaic system
• Measurement of I-V Curve of a module or of a string up to 1500V/10A - 1000V/15A
• Measurement of open-circuit voltage of a module or of a string (VOC) 1500V
• Measurement of short-circuit current of a module or of a string (ISC) 15A

DIGITAL PROGRAMMABLE PROFESSIONAL MEGOHMMETER 10TOHM 5KV HT ITALIA HT7051

• Insulation resistance measurement with test voltage up to 5kVDC
• Measurement range up to 10Tohm
• Polarization Index (P.I.) measurement
• Dielectric Absorption Ratio (D.A.R) measurement
• RS-232 interface for PC connection
• Rechargeable internal battery

AUDIO ANALYZER CLASS 1 HT ITALIA HT155/ HT157

• Measuring range 25-140dB
• "Peak", "Fast", "Slow" and "Impulse" integrations
• "A", "C" and "Z (linear)" frequency weighting
• "Peak+" and "Peak-" measurement in C weighting
• Spectral analysis with octave and 1/3 octave digital filter (HT157)
• Class 1 portable calibrator
• Mini-USB output for connection to PC

HANDHELD DIGITAL MEGOHMMETER INSULATION & CONTINUITY 4 GOHM 1000V HT ITALIA M70

• Insulation with test voltage 250, 500, 1000VDC
• Up to 4Gohm measurement range
• Automatic discharge of device under test
• LOCK feature for continuous measurements
• Programmable timer up to 60s
• Continuity of earth conductors with test current of 200mA
• A/DC voltage up to 600V
• Resistance and continuity test with buzzer

PVCHECKS-PRO COMMISSIONING TESTER FOR PV SYSTEM UP TO 1500V / 40A

• Continuity of protective conductors with 200mA
• Polarity
• Open circuit voltage Voc of PV modules and strings 1500V
• Short circuit current Isc on PV modules and strings 40A
• PV string/field insulation with test voltage 250, 500, 1000, 1500VDC

POWER ANALYZER CURRENT CLAMP METER HT ITALIA HT9022

• DC, AC + DC TRMS current up to 1000A
• DC, AC + DC TRMS voltage up to 1000V
• Resistance and continuity test
• Active, Reactive, Apparent power on Single/Three phase systems
• Active, Reactive energy on Single/Three phase systems
• Power Factor on Single/Three phase systems
• Harmonic voltage/current up to 25th with THD% calculation
• PC connection via Bluetooth

Multifunction Electrical Installation Tester 1000V HT Italia Sirius89NOBSOLET PRODUCT ( * OUT OF USE )

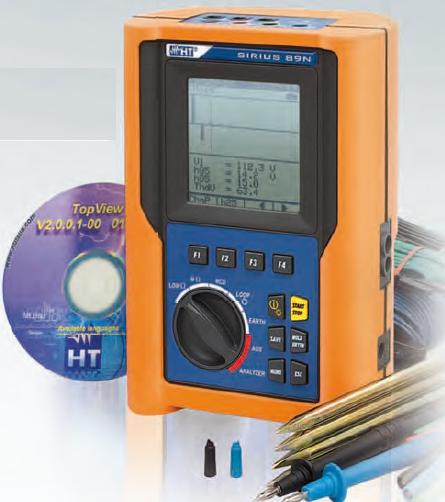

Multifunction Electrical Installation Tester 1000V HT Italia Sirius89N
