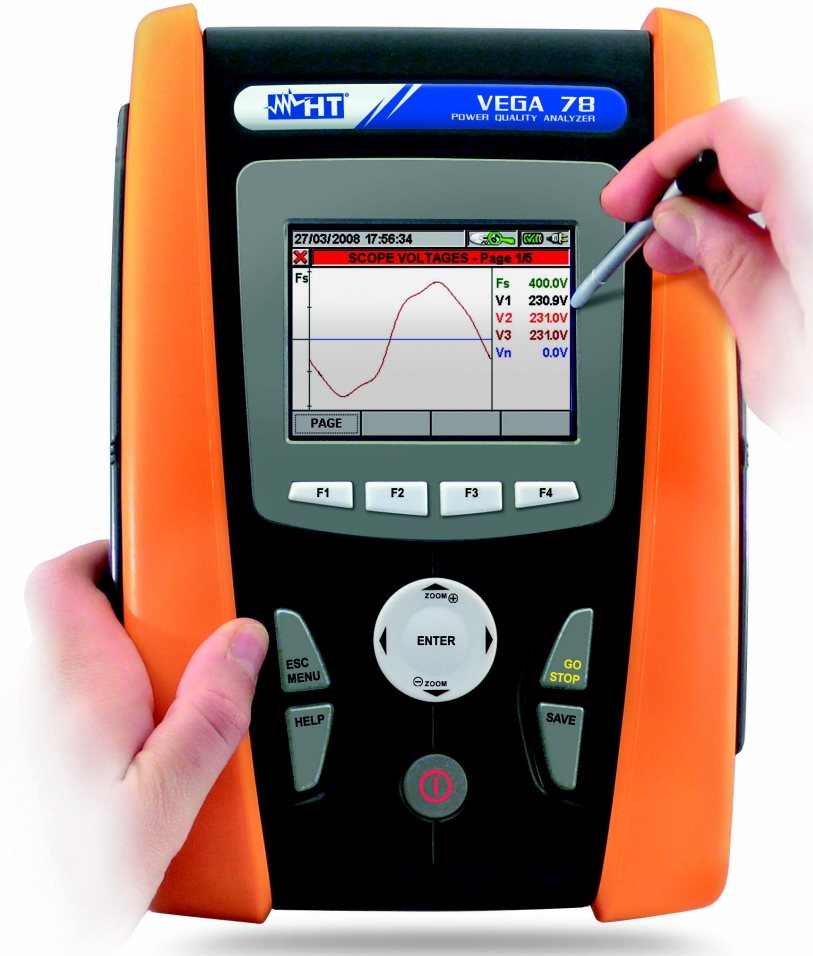

Handheld Power Quality Analyzer for Mono and Three-Phase Networks HT Italia Vega78
OBSOLET PRODUCT ( * OUT OF USE )

Code: HT Italia Vega78

Datasheet

PDF, 0.21 Mb

Description

TRMS P-N, P-P, P-PE voltage measures (5 inputs)
TRMS current on phases and neutral (4inputs)
Active, reactive and apparent powers measures
Active, reactive and apparent energies measures
Power factors measure
Frequency measure
Max 251 selected parameters at the same time
Integrated period selectable from 1s to 60min
Harmonic analysis of voltage and current up to 49th component
Voltage anomalies (sags, swells) with 10ms resolution
Numerical and graphical (waveforms) visualization
Histogram visualization of harmonic analysis
Vectorial diagram of voltages and currents
Voltage unbalance
Predefined recordings of parameters
TFT colour display with "touch screen"
15Mbytes internal memory for recordings saving
Using of external compact flash and USB pen drives
USB interface for PC connection
Windows software for recordings analysis
Rechargeable Li-Ion battery and external AC/D adapter
Contextual help selectable on each screen
Virtual keyboard at display

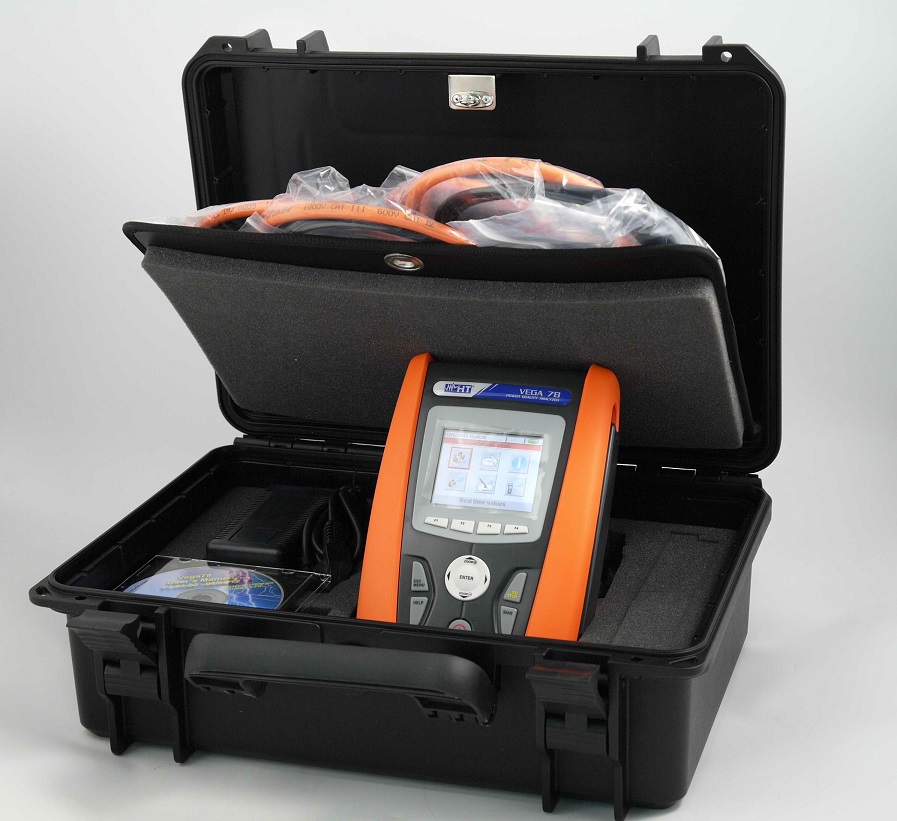

Standard accessories

KIT800: set of 5 cables with alligator clip
HTFLEX33D: flexible clamp 3000A AC, 174mm, 4 pcs
A0055: 100/240V 50Hz /5VDC external adapter
TOPVIEW2007: PC Windows software + USB cable C2007
BORSA2051N: carrying bag
PT400: Pen for touch screen display
Rechargeable battery Li-ION
Calibration certificate ISO9000
User manual on CD-ROM
Quick reference guide

Recommended options

HT96U: transducer standard clamp 1-100-1000A/1V AC, 54mm diameter
HT97U: transducer standard clamp 10-100-1000A/1V AC, 54mm diameter
HP30C2: transducer standard clamp 200-2000A/1V AC, 70mm diameter
HTFLEX35: flexible clamp 3000A AC, 274mm diameter
HT903: Box 3 x 1-5A / 1V for connection of CT’s
A0056: AC/DC external adapter 110V/60Hz
CF800: compact flash card, 1GB
MCR800: USB compact flash reader
SP-0400: set of straps for carrying belt
