GOODWILL INSTEK GVT-427B & GVT-417B

Code: GOODWILL INSTEK GVT-427B & GVT-417B




Datasheet PDF, 0.56 Mb


Description

AC Millivolt Meter

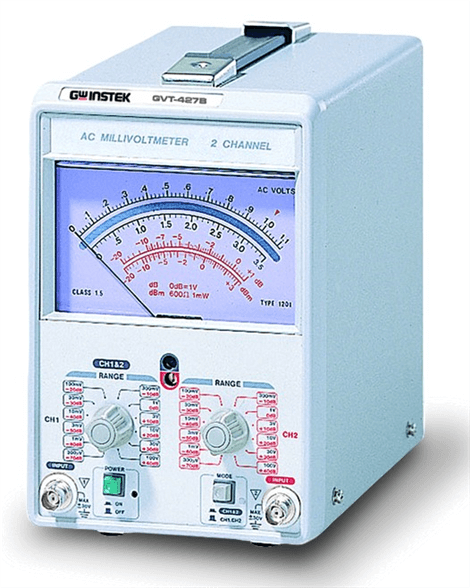

The GVT-427B is compact analog AC millivoltmeters ideal for low level voltage measurements beyond ordinary multimeter capabilities; 300uV sensitivity is maintained over 100V full scale. GVT-427 provides dual channel measurement, simultaneously or separately. Voltage scale is separated into 12 ranges, instantly accessible by a large rotary selector. The wide measurement range(10Hz~1MHz) and voltage(-70dB~+40dB) provide ample headroom for most applications.



Features:

  • 300½V Full Scale Sensitivity
  • Measurement Frequency: 10Hz ~ 1MHz
  • Measurement Amplitude: -70dB ~ +40dB in 12 Ranges
  • Dual Channel (GVT-427B)

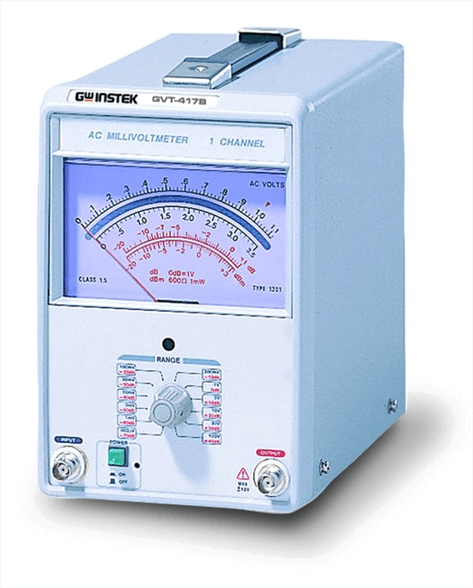

  • CE Approved (GVT-417B)
